Vehicle Speed Sensor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

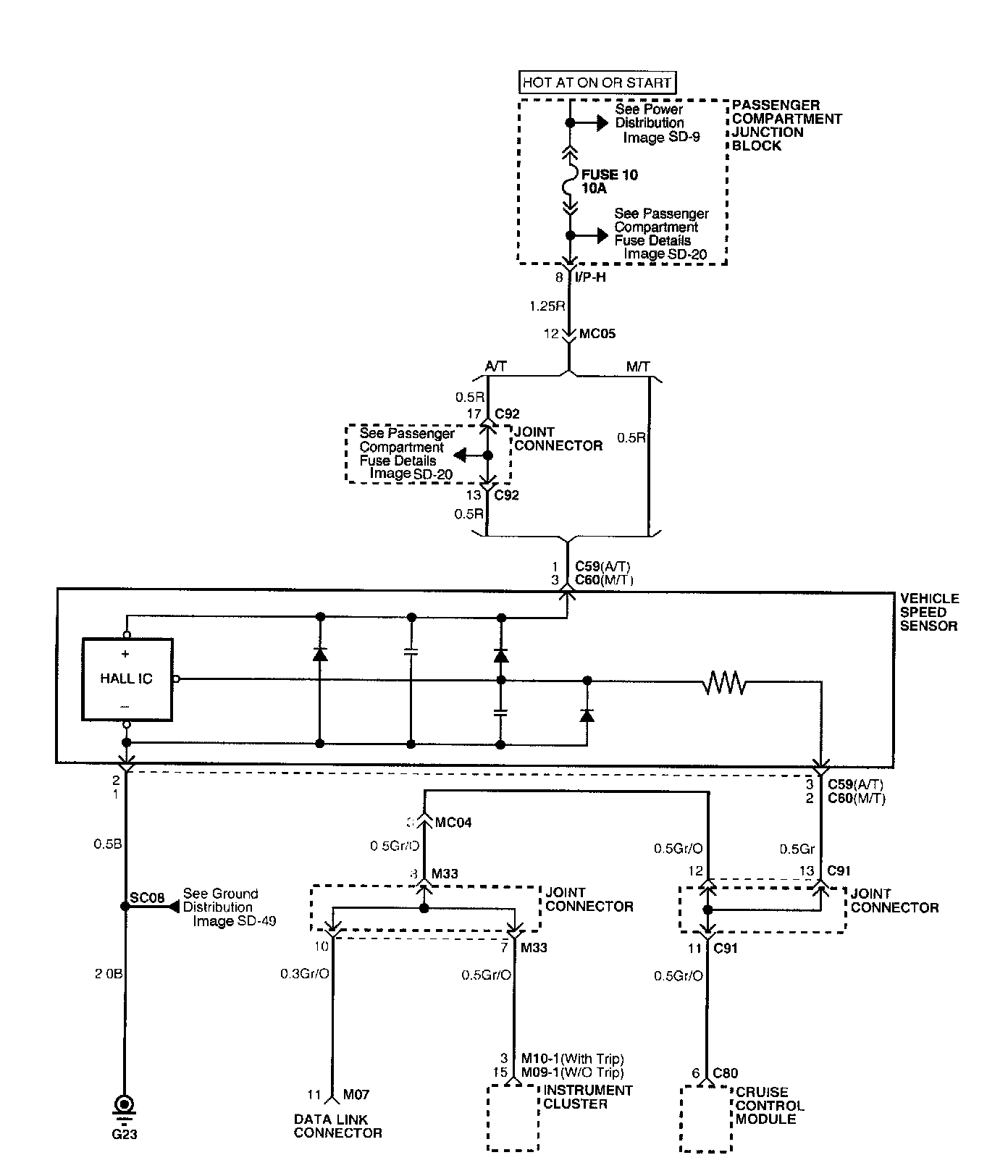

Image SD-58 - Vehicle Speed Sensor (1):
