Home
>>
Hyundai
>>
2001
>>
Elantra L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Immobilizer Control System
Immobilizer Control System

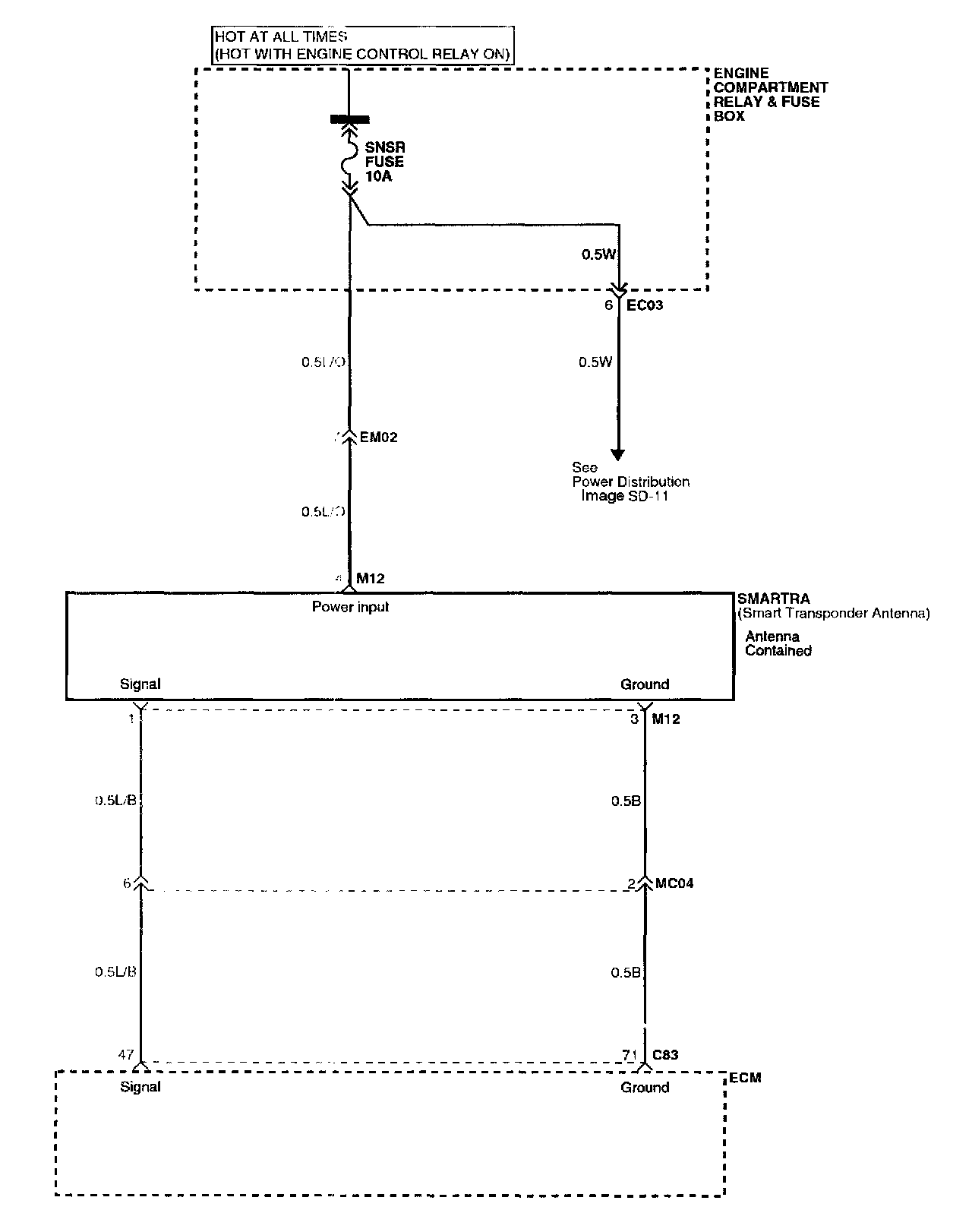

Image SD-192 - Immobilizer Control System (1):
