Hyundai
>>
2000
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

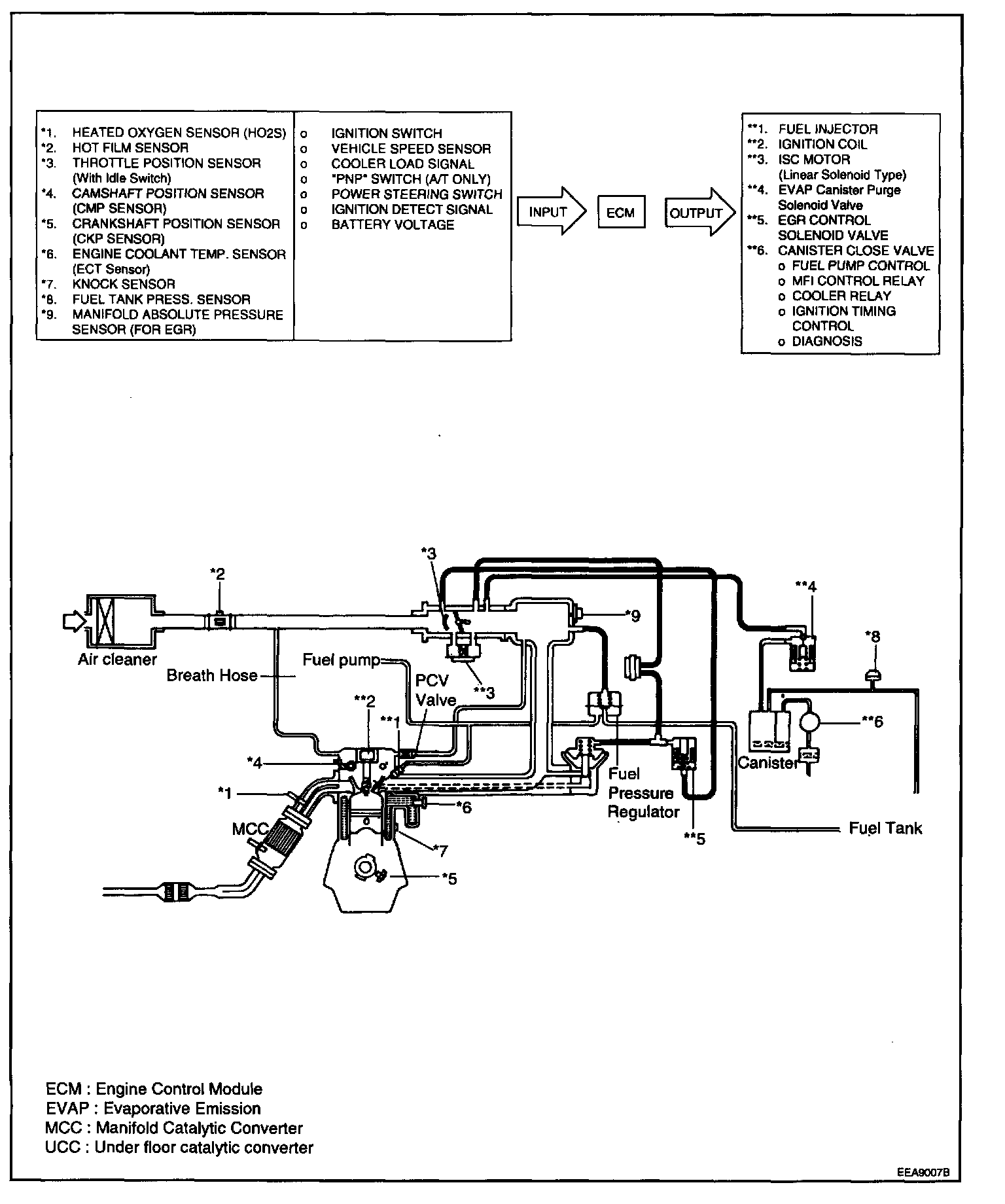

Control System Schematic
Control System Schematic
Schematic Drawing:
