Automatic Transmission/Transaxle

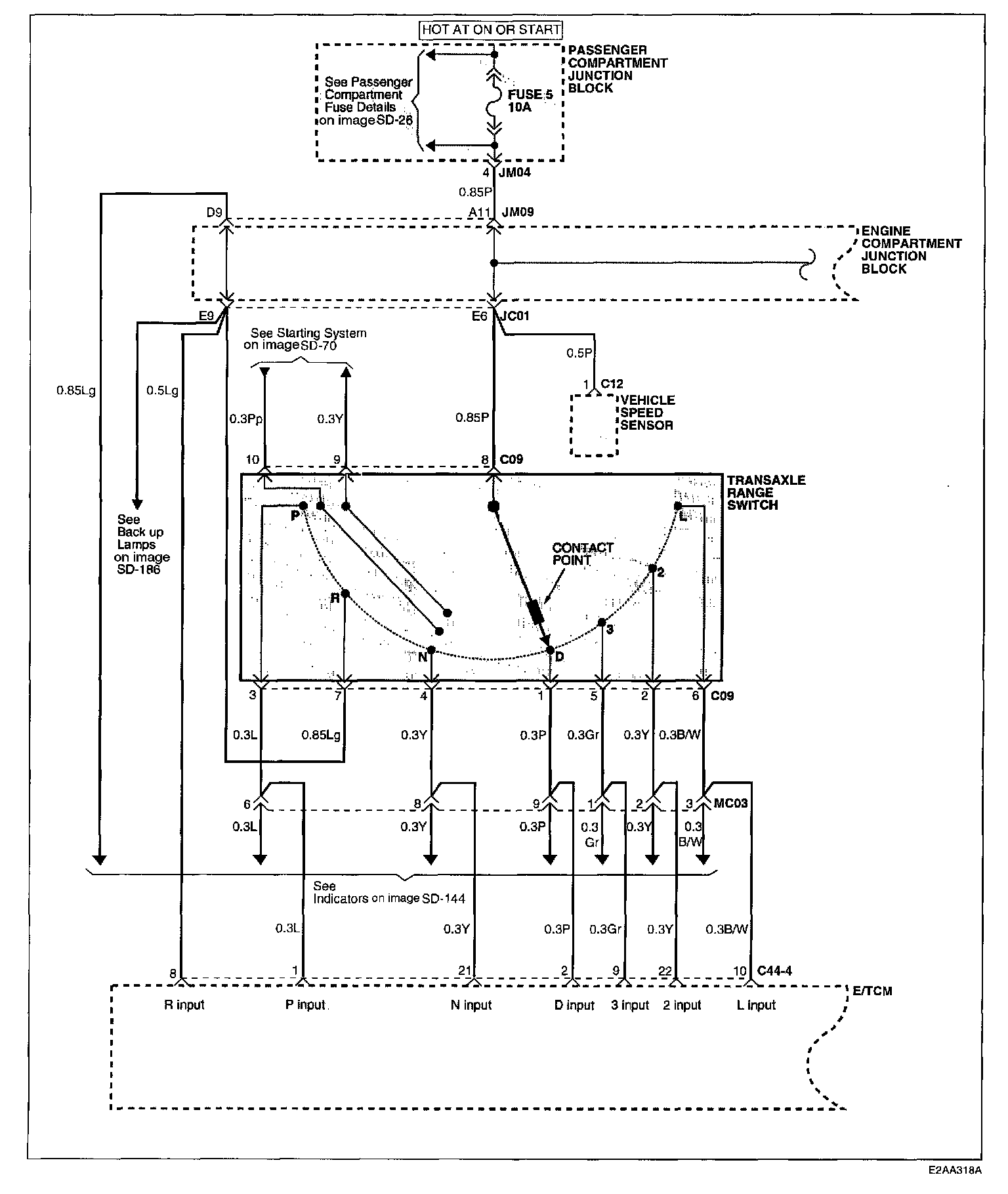

Image SD-110:

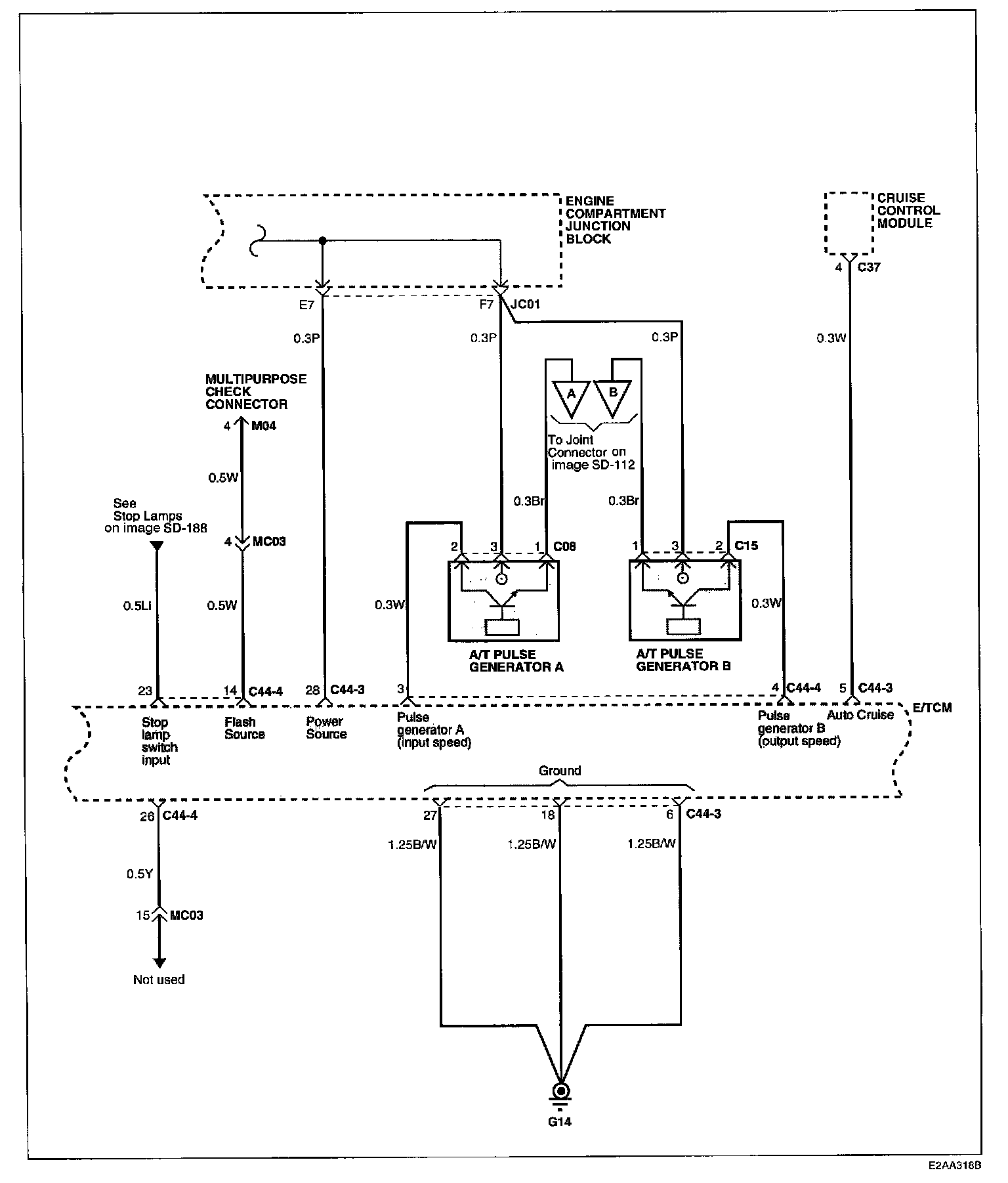

Image SD-111:

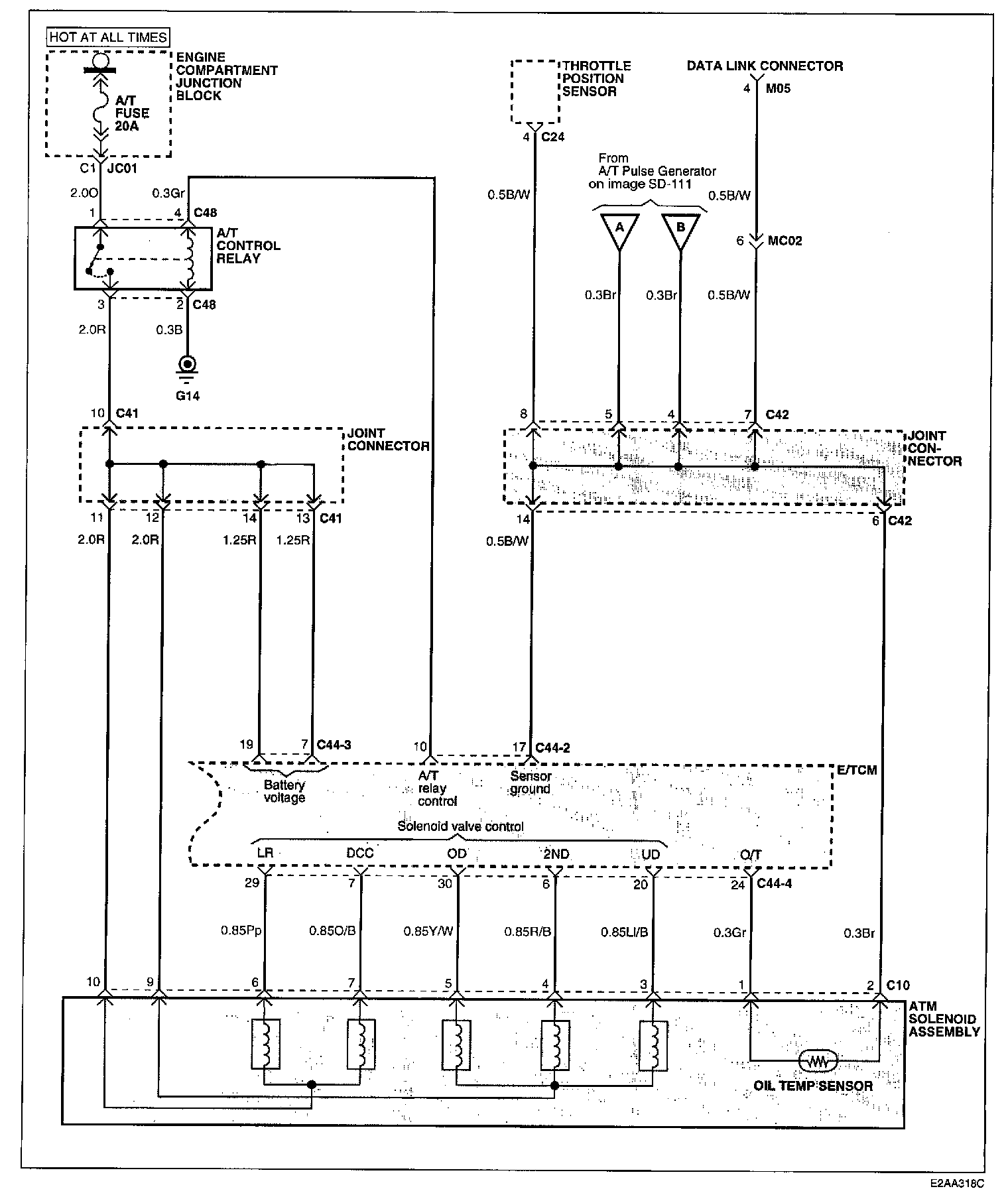

Image SD-112:
lDJhDJ�9DJImage SD 112-001:
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams
Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
