Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Flow of Diagnosis
Flow of Diagnosis

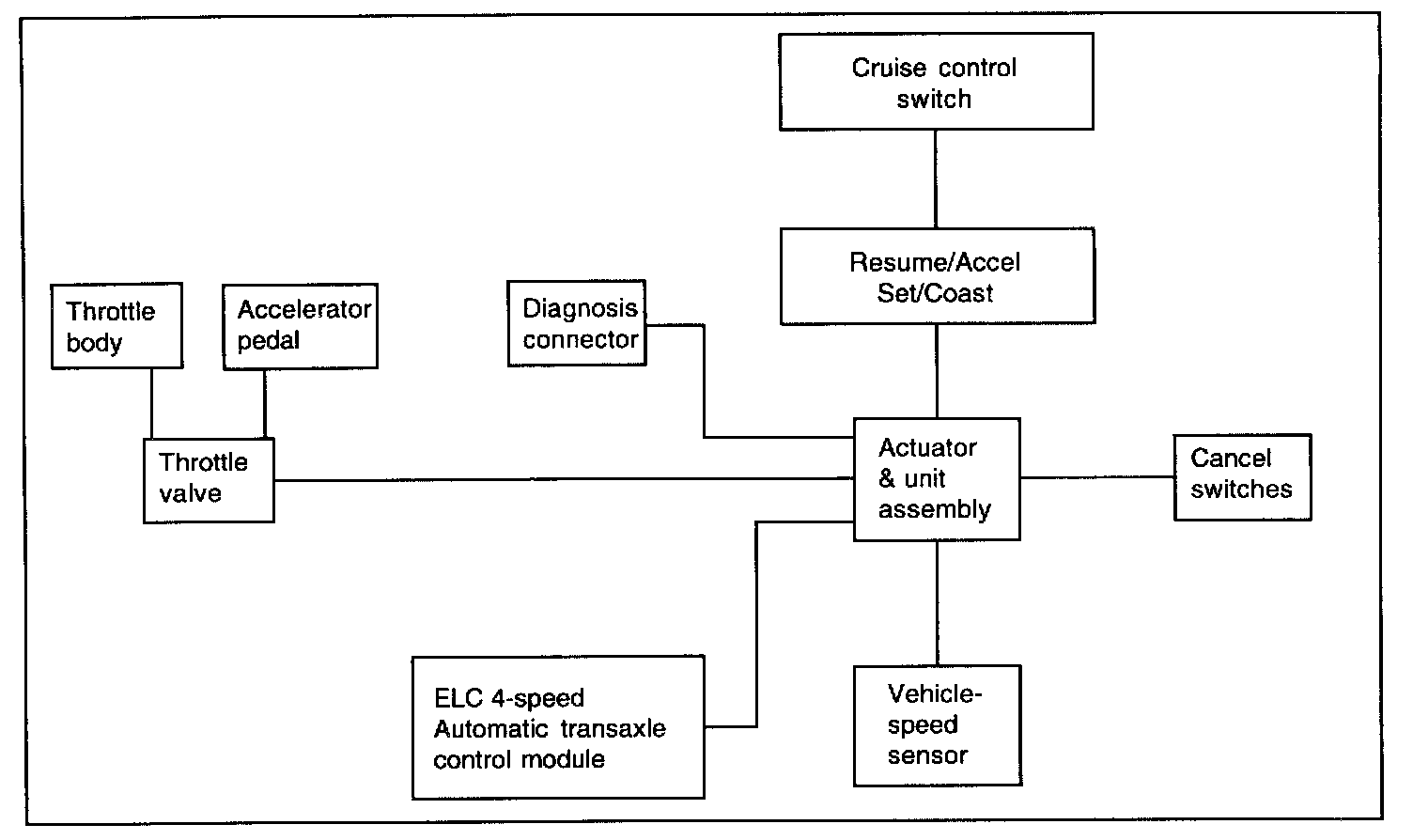

System Block Diagram:

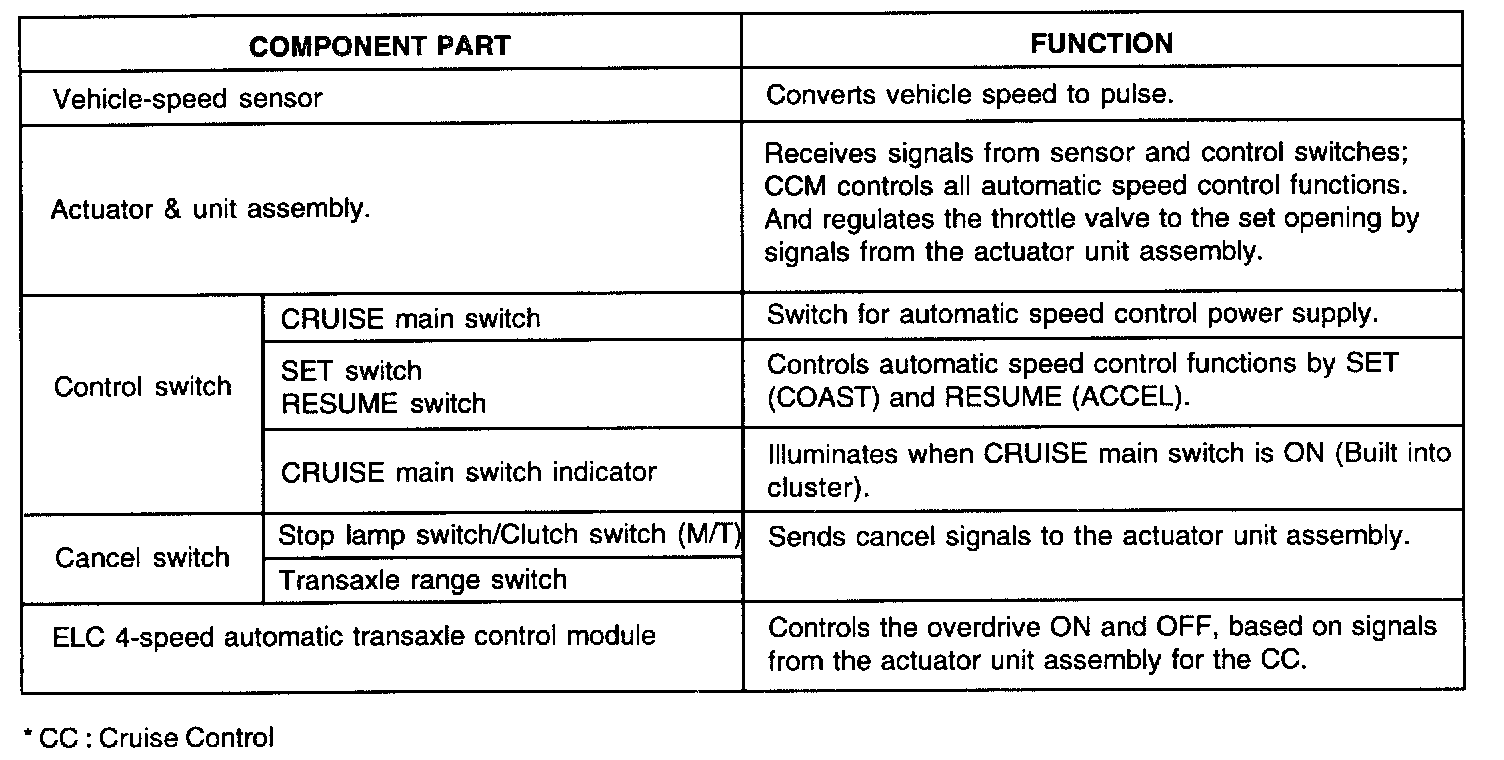

Component Parts And Function Outline:
