Hyundai
>>
1999
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Description and Operation
>>
Passenger Compartment Junction Block
Passenger Compartment Junction Block

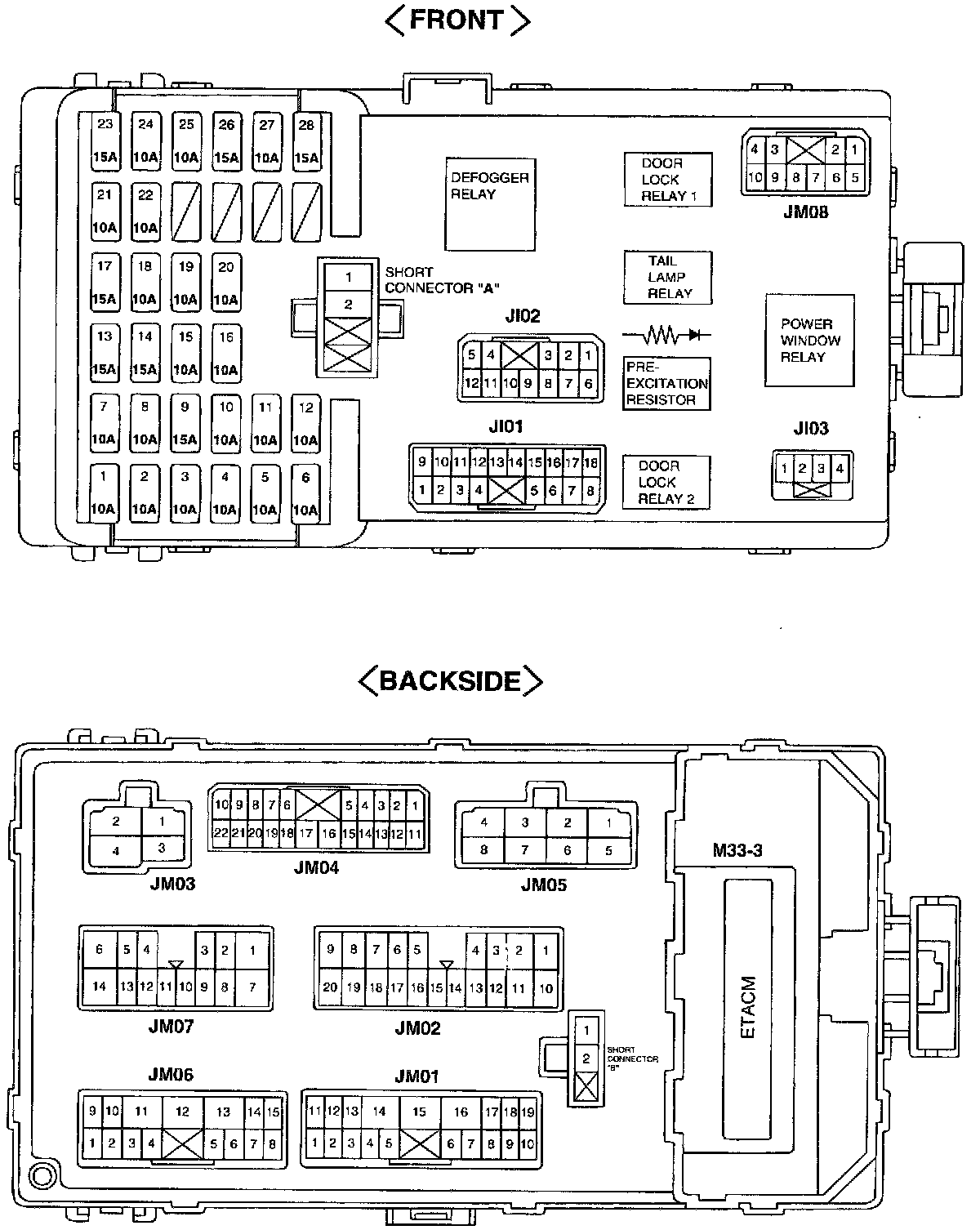

Junction Block Layout

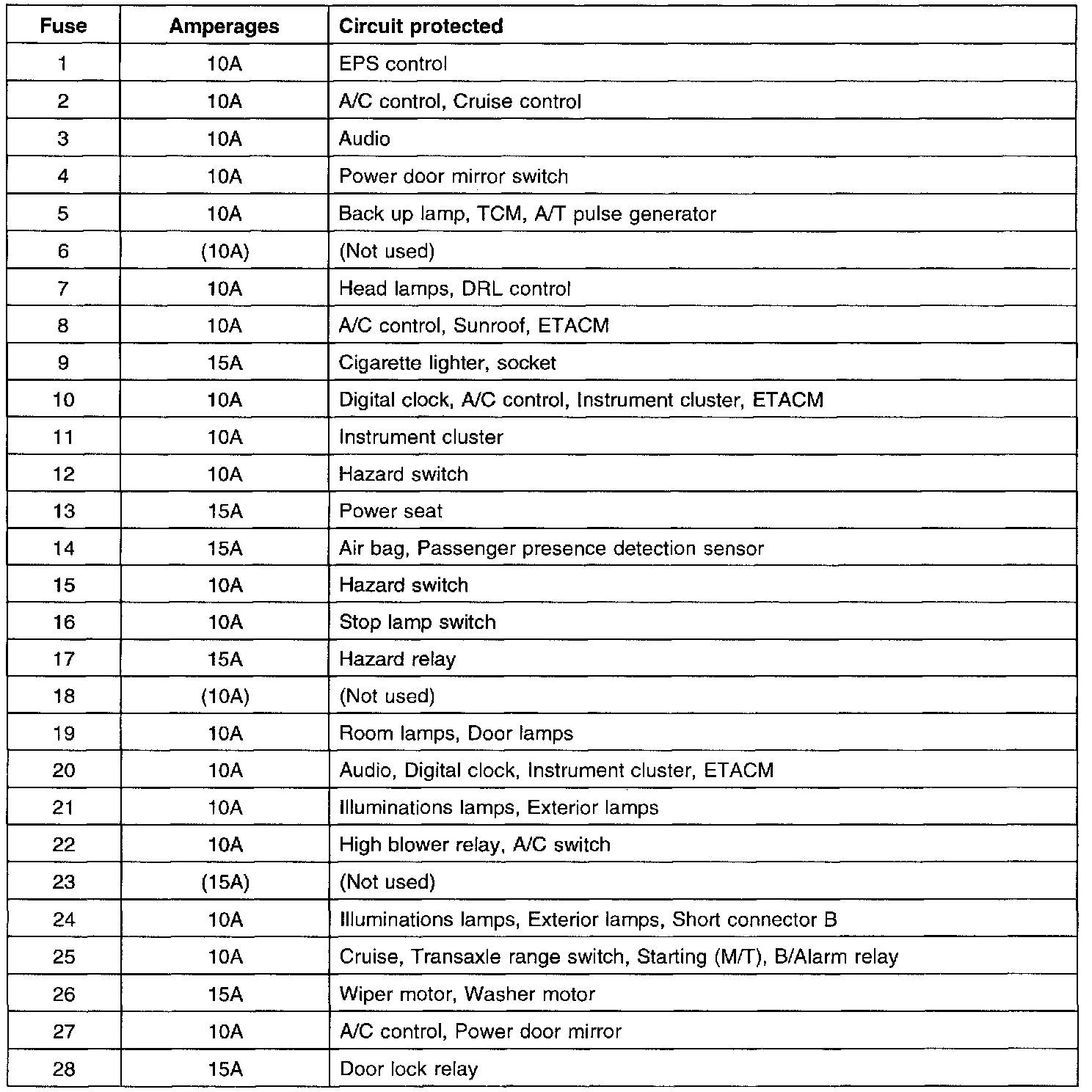

Junction Block Circuit
