Air Door Cable: Adjustments

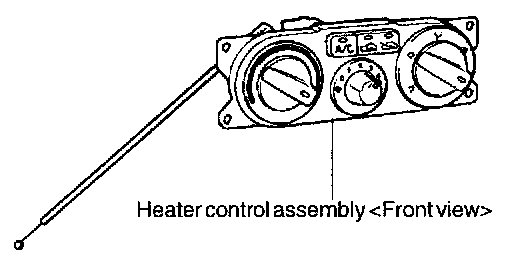

After installation of the heater control assembly, adjust the temperature control cable.




1. Slide the temperature control lever to HOT.
2. Turn the temperature door shaft arm to the left and connect the end of the cable to the arm.
3. Gently slide the cable outer housing back from the end enough to take up any slack in the cable, paying attention not to move the temperature control lever, then snap the cable housing into the clamp.
