Vehicle Speed Sensor: Testing and Inspection
Vehicle Speed Sensor
Circuit Diagram

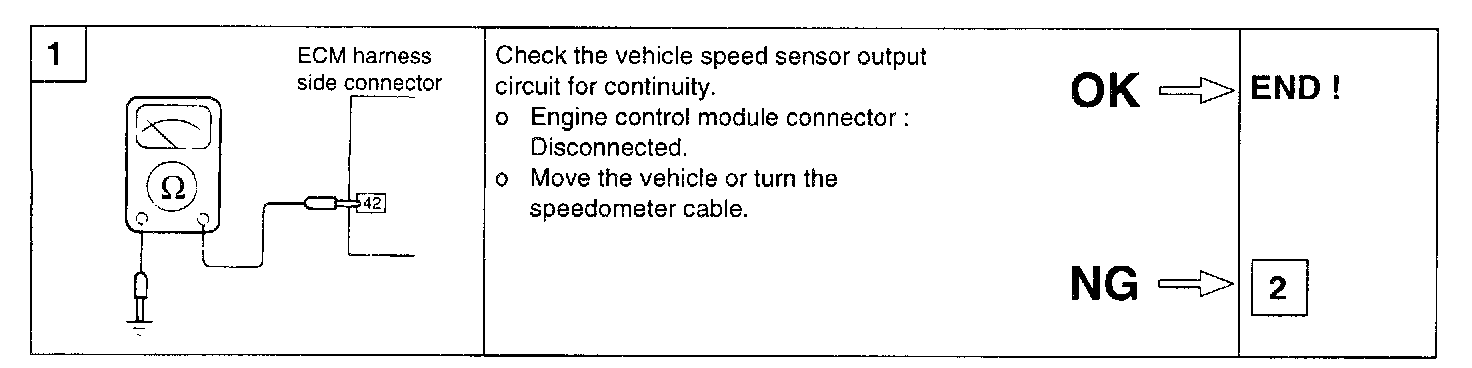

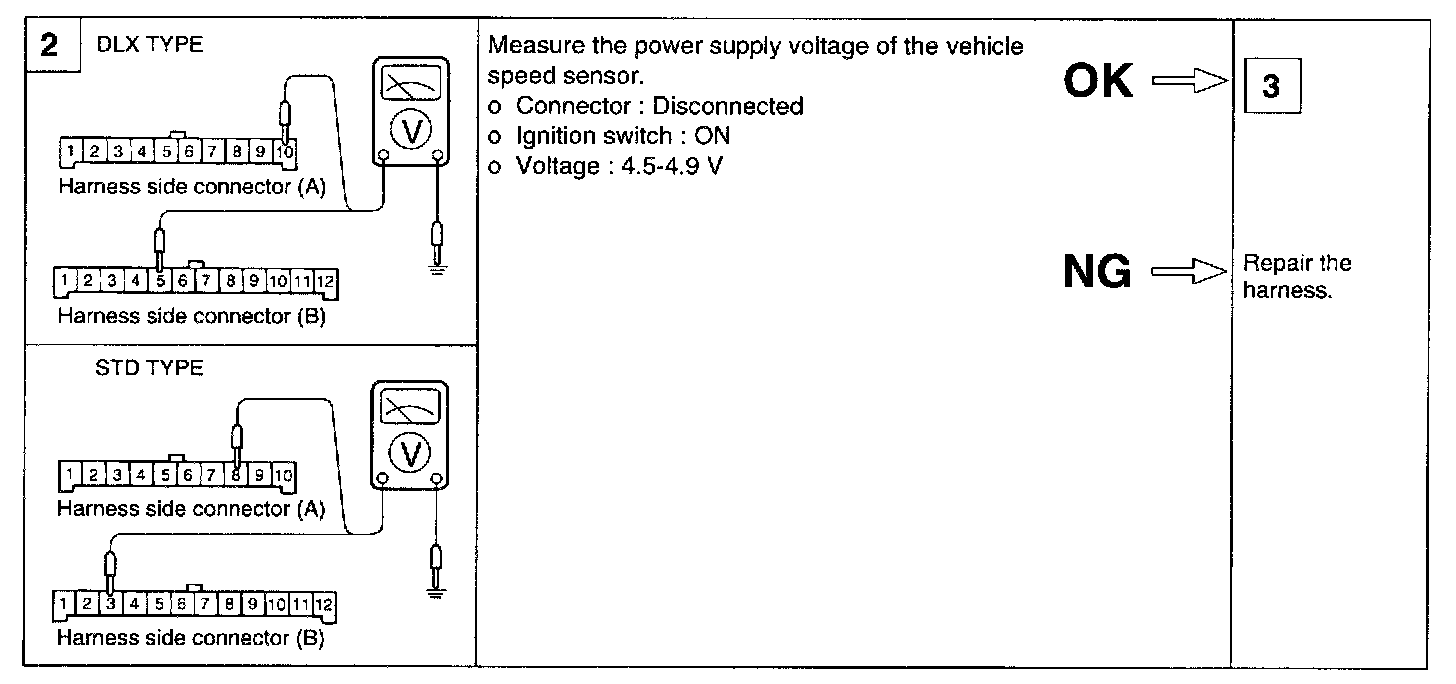

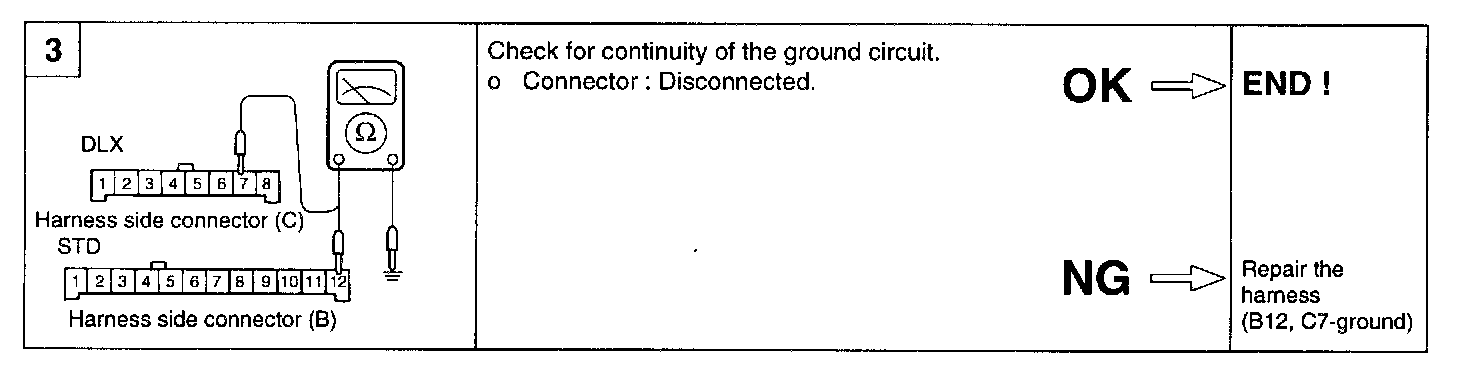

HARNESS INSPECTION PROCEDURE
