Front Wiper Motor

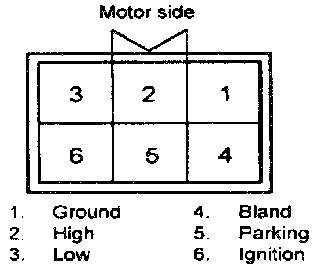

SPEED OPERATION CHECK
1. Remove the connector from the front wiper motor.

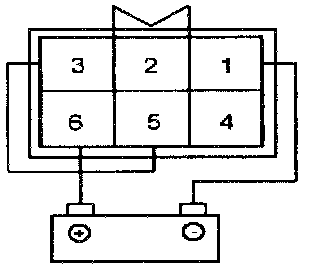

2. Attach the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 3.
3. Check that the motor operates at low speed.
4. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 2.
5. Check that the motor operates at high speed.




AUTOMATIC STOP OPERATION CHECK
1. Operate the motor at low speed.
2. Stop motor operation anywhere except at the off position by disconnecting terminals 3 and 5.
3. Connect terminals 3 and 5.
4. Connect the positive (+) lead from the battery to terminal 6.
5. Check that the motor stops running at the off position after the motor operates again.
