Windshield Washer Switch: Testing and Inspection

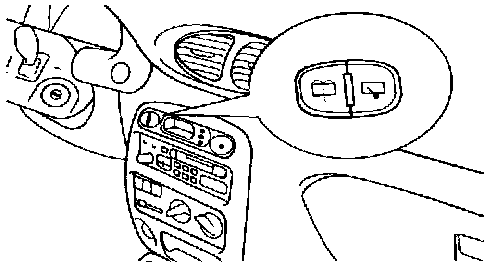

1. Remove the center facia Panel.
2. Remove the rear wiper and washer switch from the facia panel.

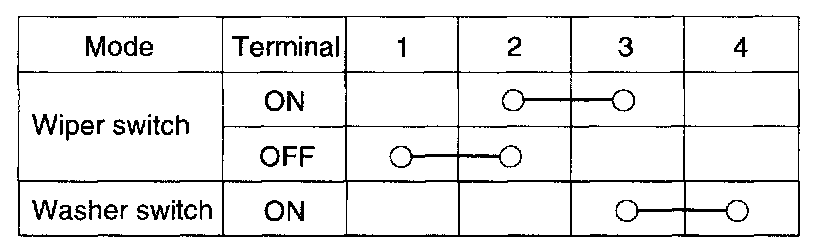

3. Check for continuity between terminals.
