Speedometer Gear, M/T: Service and Repair

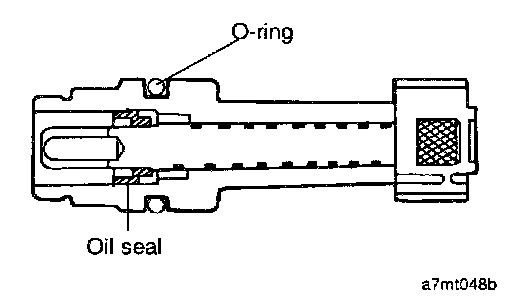

SPEEDOMETER DRIVEN GEAR ASSEMBLY
ASSEMBLY





1. Apply gear oil sparingly to the speedometer driven gear shaft and insert the shaft.

CAUTION: Carefully insert the speedometer driven gear into the clutch housing. Make sure the shaft doesn't come apart during insertion.
