Shifter M/T: Service and Repair

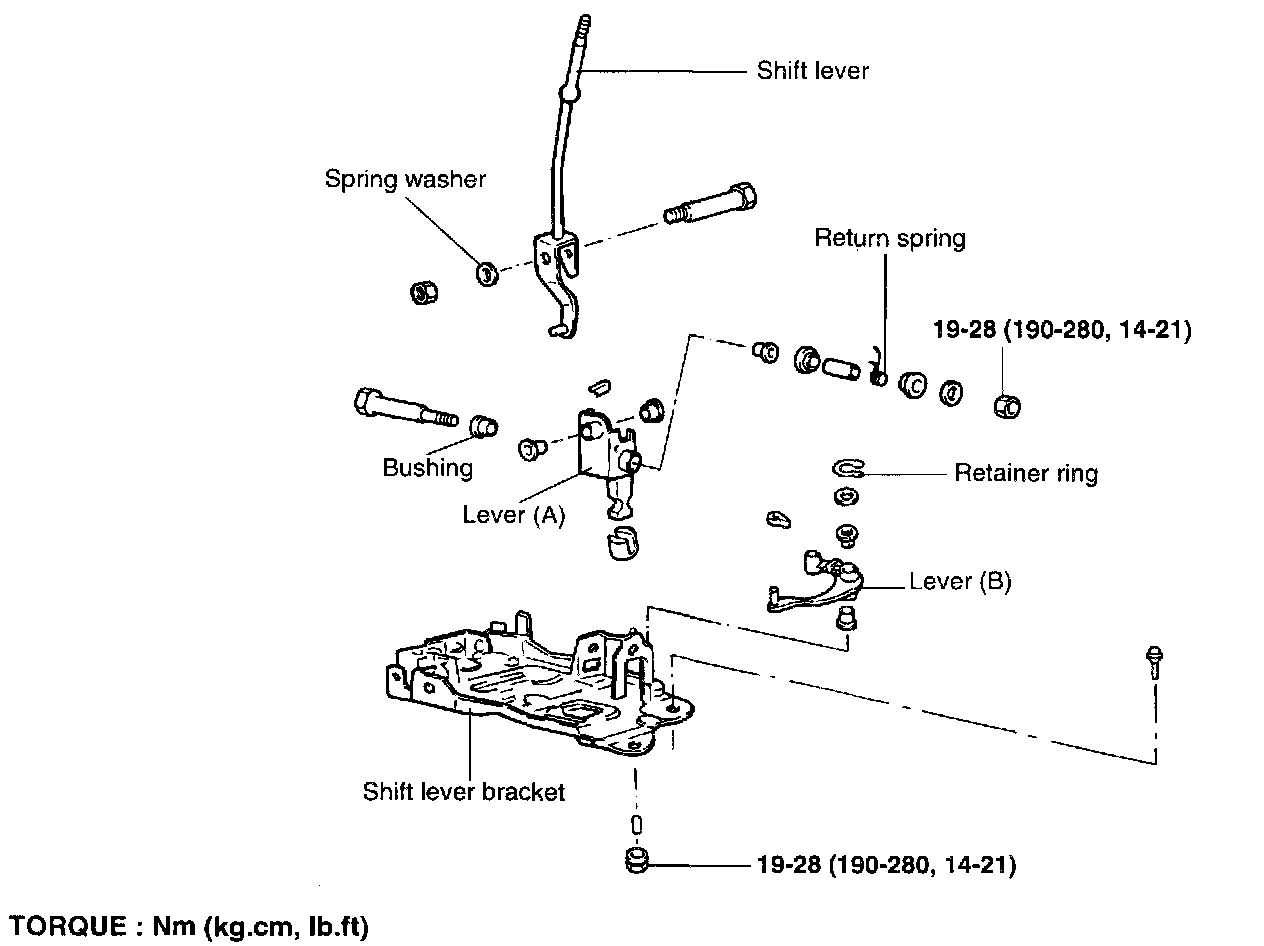

SHIFT LEVER ASSEMBLY
INSPECTION
1. Check the bushing for wear or damage.
2. Check the return spring for damage or deterioration.

ASSEMBLY

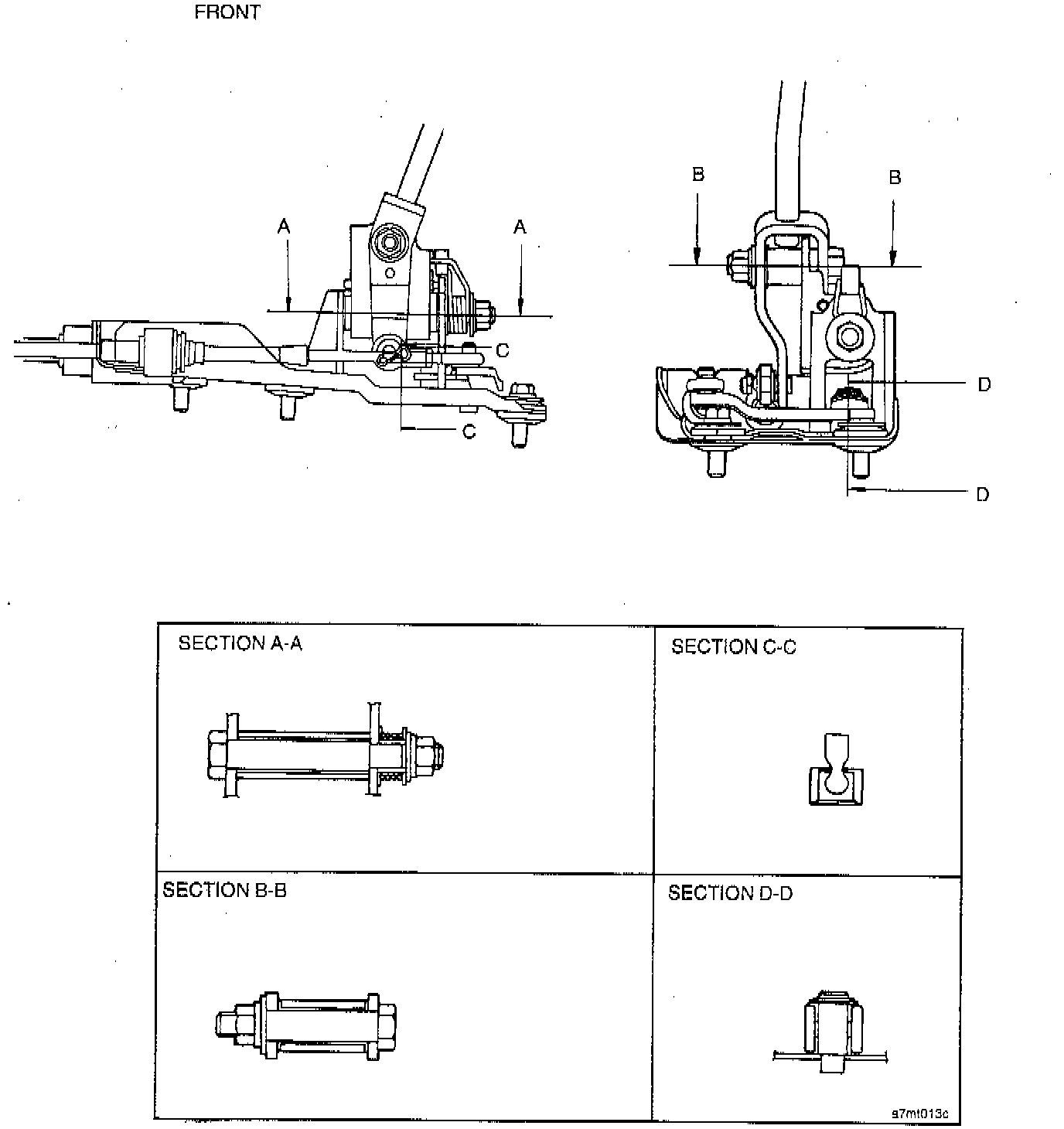

1. Apply multipurpose grease to the sliding part of the bushings as shown in the illustration.
2. Assembly is reverse of the disassembly.

Additional repair information can be found under Shift Cable, Service and Repair. Service and Repair
