Removal and Installation

Alternator:

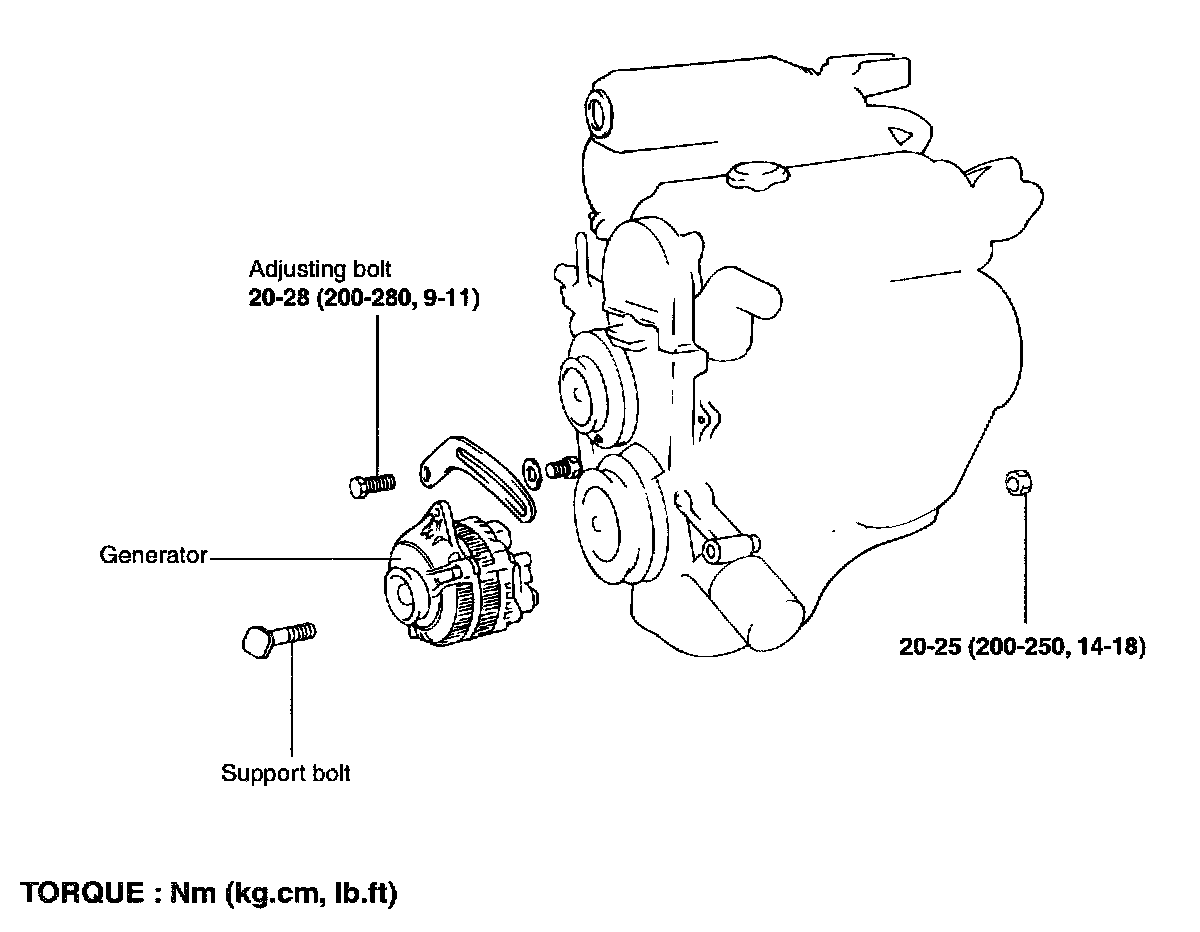

COMPONENTS

REMOVAL




1. Disconnect the negative terminal from battery and disconnect the radiator fan connector and condenser fan connector.




2. Remove the radiator mounting bolts




3. Loosen the belt tension adjusting bolt and remove the mounting bolt. Then, lift the vehicle on the jack.




4. Disconnect the generator connector and remove the B+ terminal cable.




5. Remove the belt and detach the generator mounting bolt and nut.Then remove the generator assembly while raising the radiator by hands.

INSTALLATION




1. Position the generator and insert the support bolt. (Do not attach the nut.)

2. Push the generator forward and determine how many spacers (thickness: 0.198 mm) should be inserted between the front leg of the generator and the front case (space A in the illustration). (There should be enough spacers so that they do not fall out when you let go of them.)

3. Insert the spacers (space A in the illustration), attach the nut, and complete the installation.
