Hard to Refuel/Overflowing or Spit Back

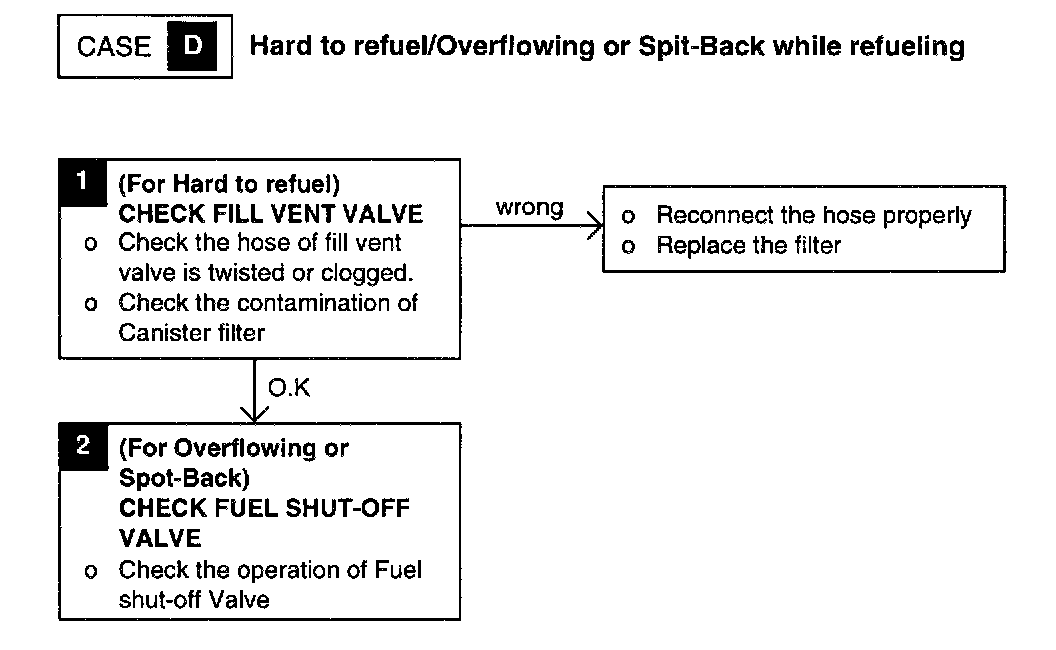

(Case D) Hard to Refuel/Overflowing or Spit-Back While Refueling (For OVR System)





Note: The proper operating condition of fuel shut-off valve is at the nominal volume of fuel (app. 43 liter)
