Idle Speed/Throttle Actuator - Electronic: Testing and Inspection

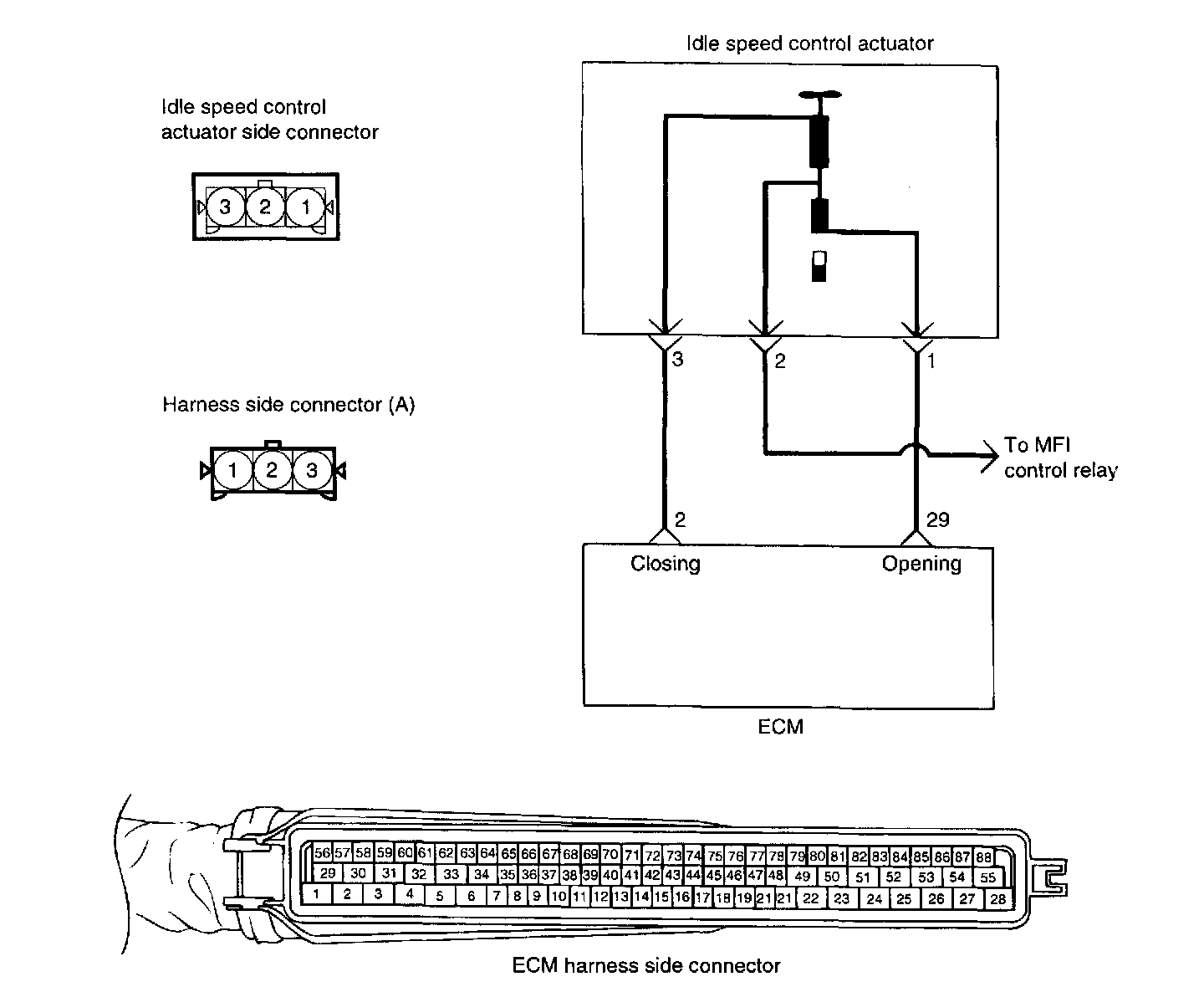

CIRCUIT DIAGRAM

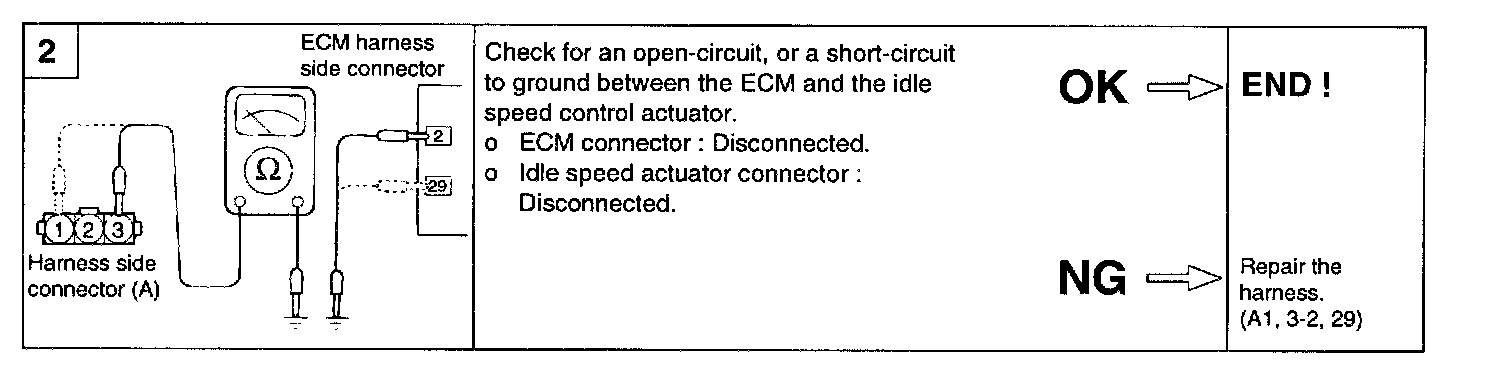

HARNESS INSPECTION PROCEDURE

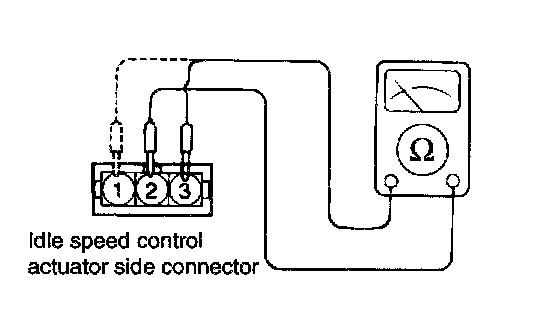

ACTUATOR INSPECTION
1. Disconnect the connector at the idle speed control actuator.
2. Measure the resistance between terminals.

Standard value:
Terminal 1 and 2 10.5 - 14 Ohm
Terminal 2 and 3 10 - 12.5 Ohm [at 20 °C (68 °F)]

3. Connect the connector at the idle speed control actuator.
