Combination Switch: Testing and Inspection

With the multifunction switch in each position, make sure that continuity exists between terminals as shown below.

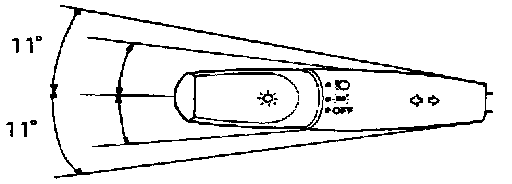

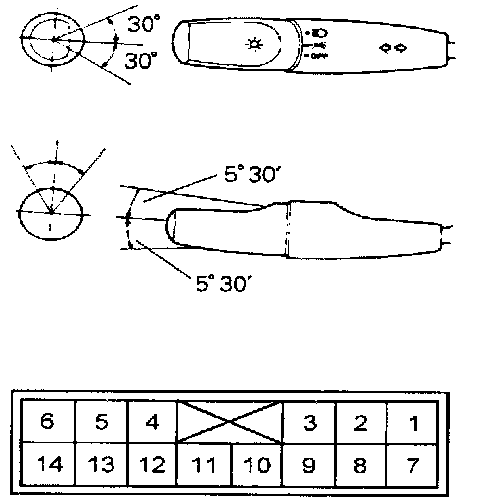

LIGHTING SWITCH (CONNECTOR NO.: M10-1)

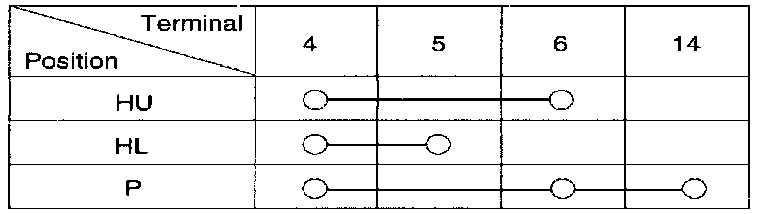

DIMMER AND PASSING SWITCH (CONNECTOR NO.: M10-1)

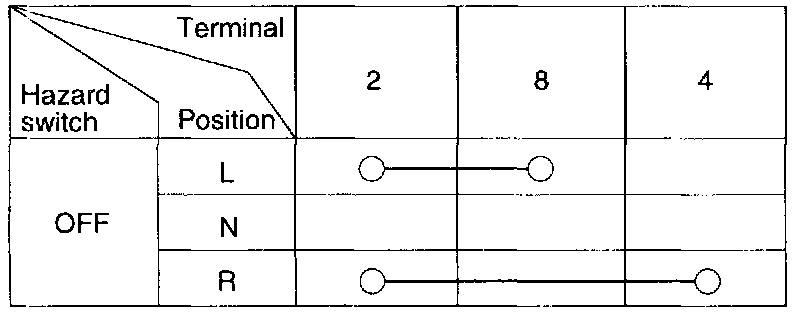

TURN SIGNAL SWITCH (CONNECTOR NO.: M10-1)

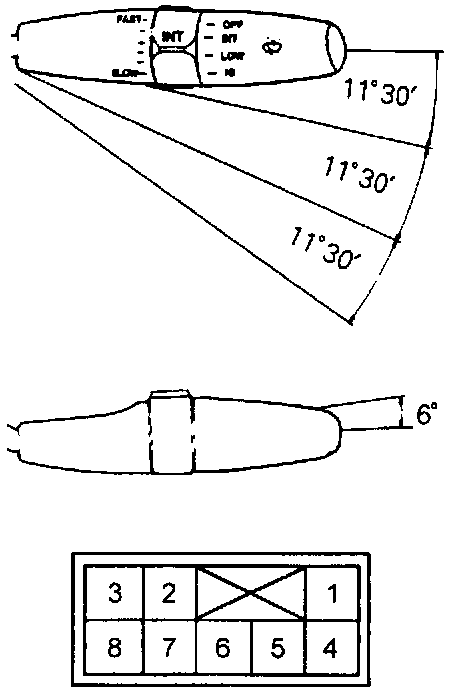

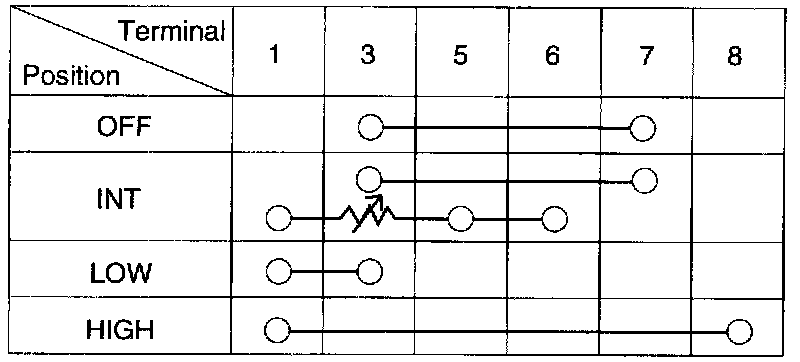

WIPER SWITCH (CONNECTOR NO.: M10-2)

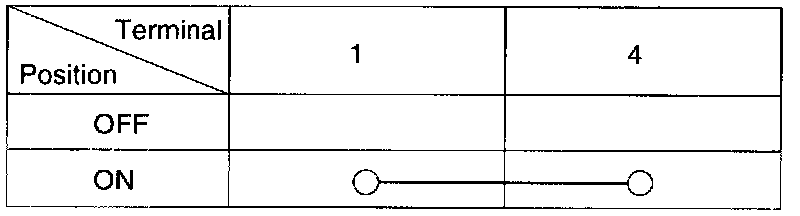

WASHER SWITCH (CONNECTOR NO.: M10-2)
