Brake Light Switch: Testing and Inspection

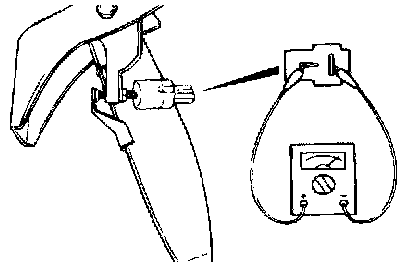

1. Remove the stop lamp switch connector located at brake pedal bracket.
2. Make sure that there is continuity between terminals 1 and 2 when the brake pedal is depressed.
3. Ensure that no continuity exists between the terminals when the pedal is released.
