Removal and Installation

COMPONENTS




1. Remove the main crash pad assembly.

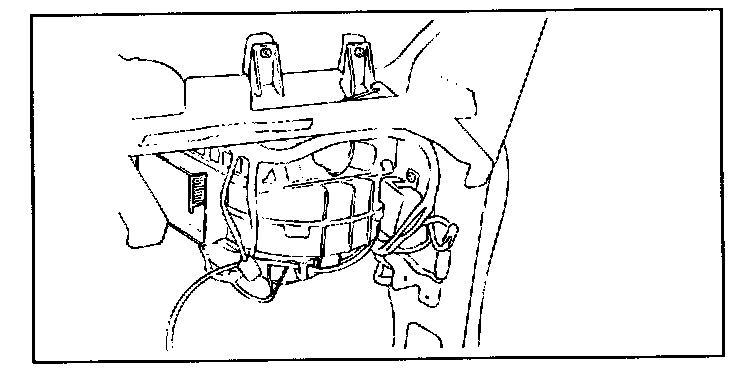

2. Disconnect the resistor and blower motor connector.
3. Remove 3 nuts(or bolts) from the blower unit mounting bracket.
4. Pull out the blower unit and then disconnect the fresh/recirculation vacuum connector from the vacuum motor.
5. Installation is the reverse order of removal.
