Disassembly and Reassembly

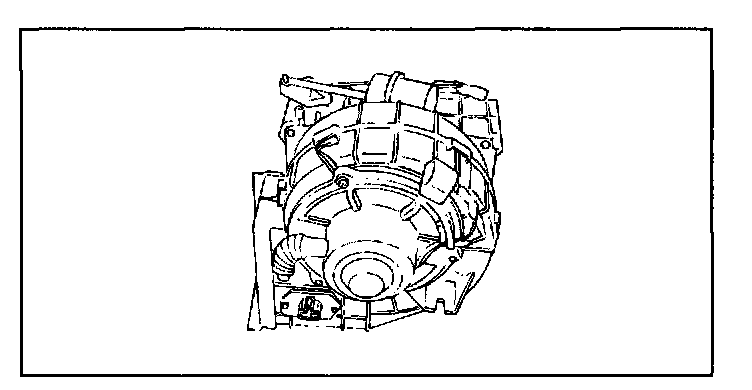

1. Disconnect the motor cooling tube.




2. Remove the three screws and the blower motor assembly.
3. Remove three screws and loosen a connection holding the inlet duct assembly and the blower upper case.

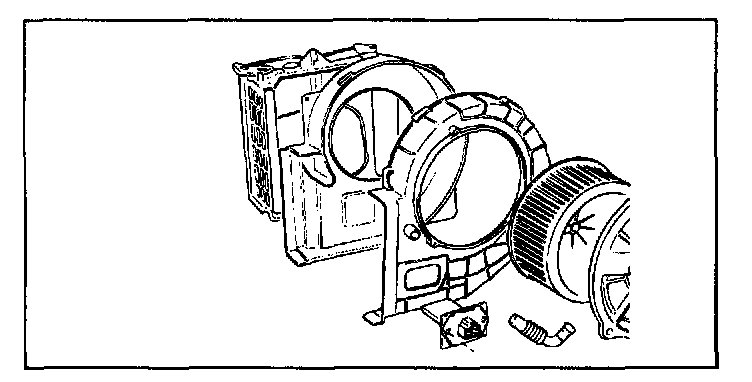

4. Remove the inlet duct assembly.
5. Loosen six connections holding the blower upper and the lower case by using a flat tip screwdriver.

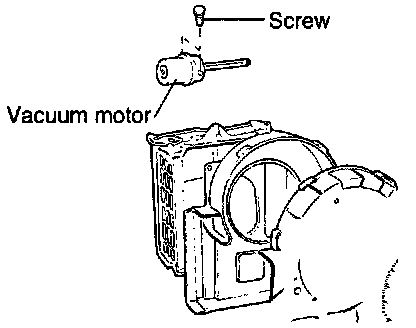

6. Remove two screws and the blower resistor.
7. Remove the screws, holding the vacuum motor to the inlet duct.
8. Remove the vacuum motor assembly.
9. Reassembly is the reverse order of disassembly.
