Air Duct: Service and Repair

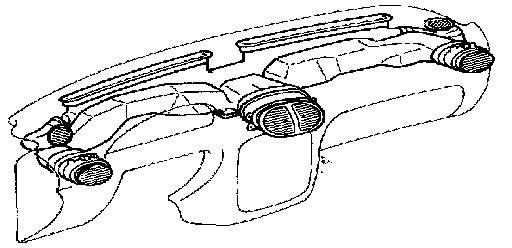

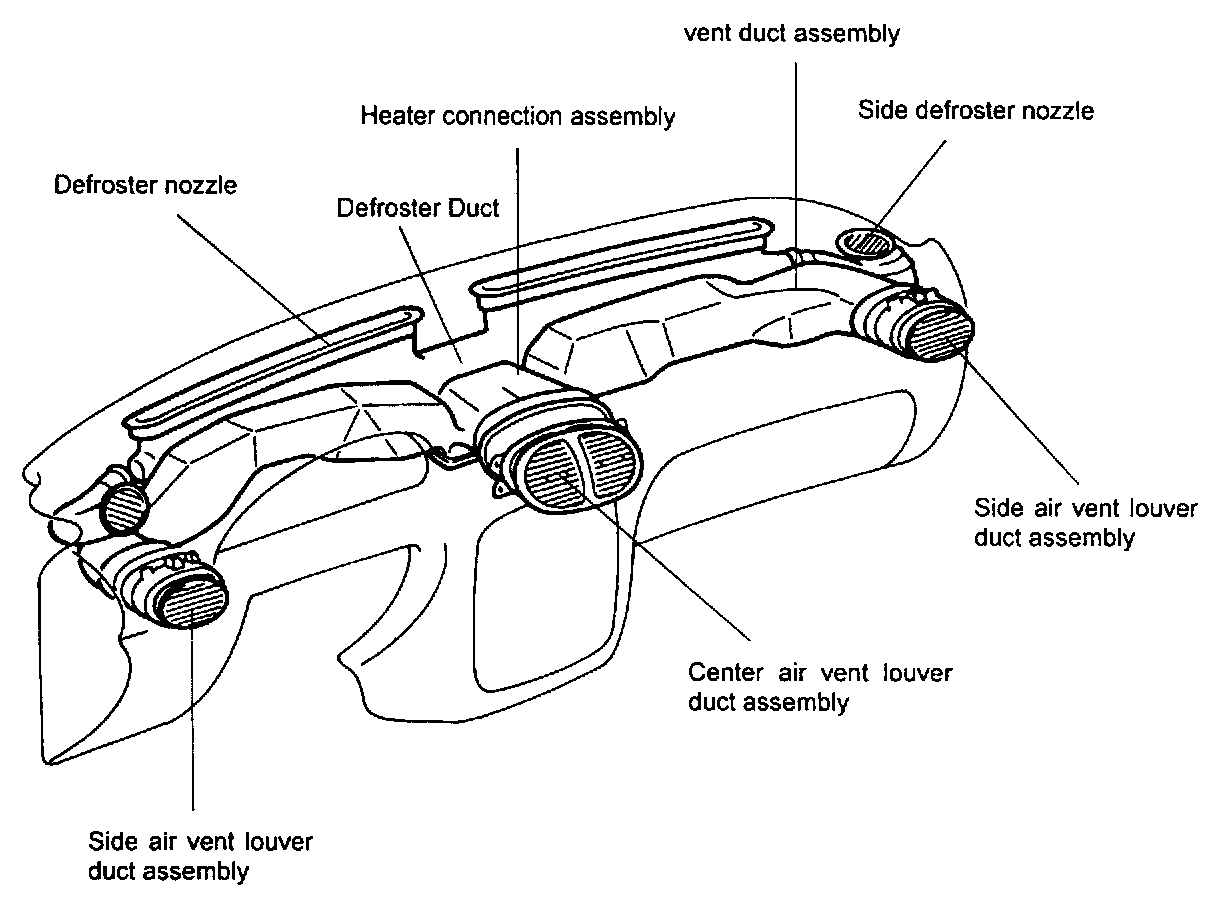

COMPONENTS




1. Remove the front and rear console assembly.
2. Remove the glove box and crash pad assembly.




3. Detach the defroster nozzle assembly, and then the defroster hose and the side defroster nozzle.

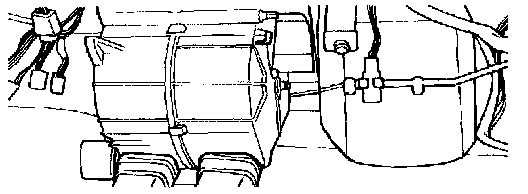

4. Remove the heater connection assembly.
5. Remove the side air vent hose assembly (LH/RH).




6. Installation is the reverse order of removal procedures.
