Antilock Brakes / Traction Control Systems

Anti-Lock Brake System (Part 3 Of 3):

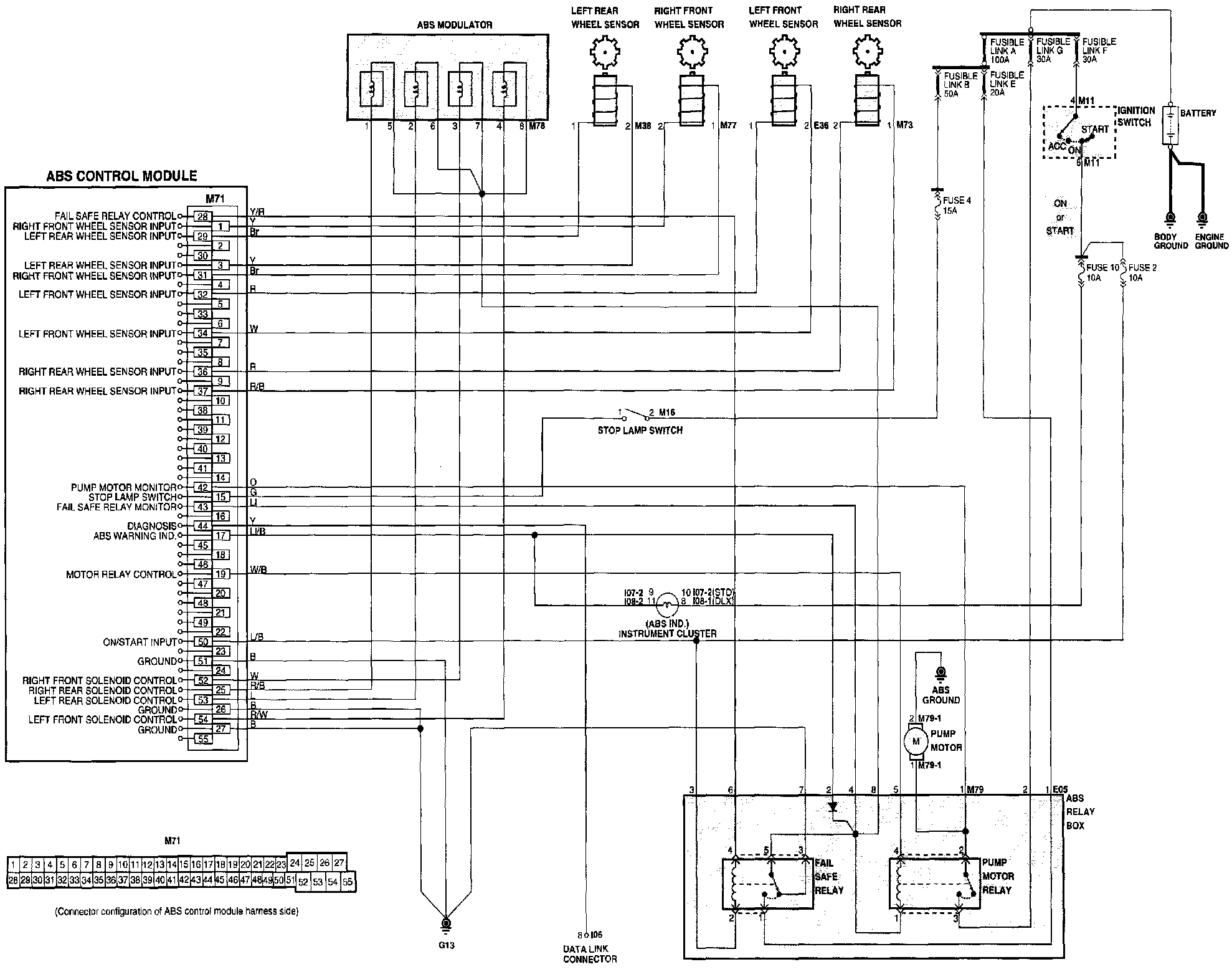

Circuit Diagram

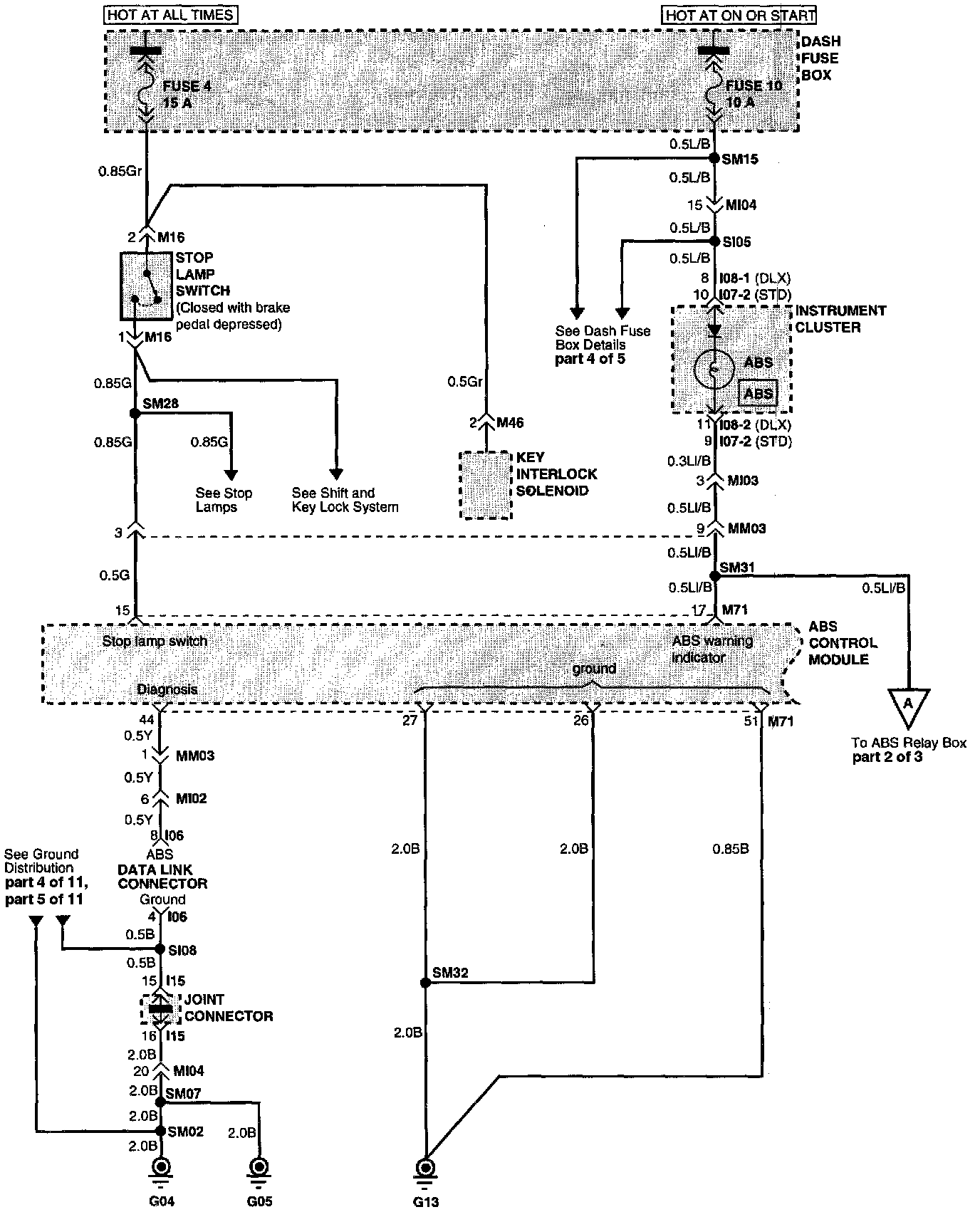

Anti-Lock Brake System (Part 1 Of 3):

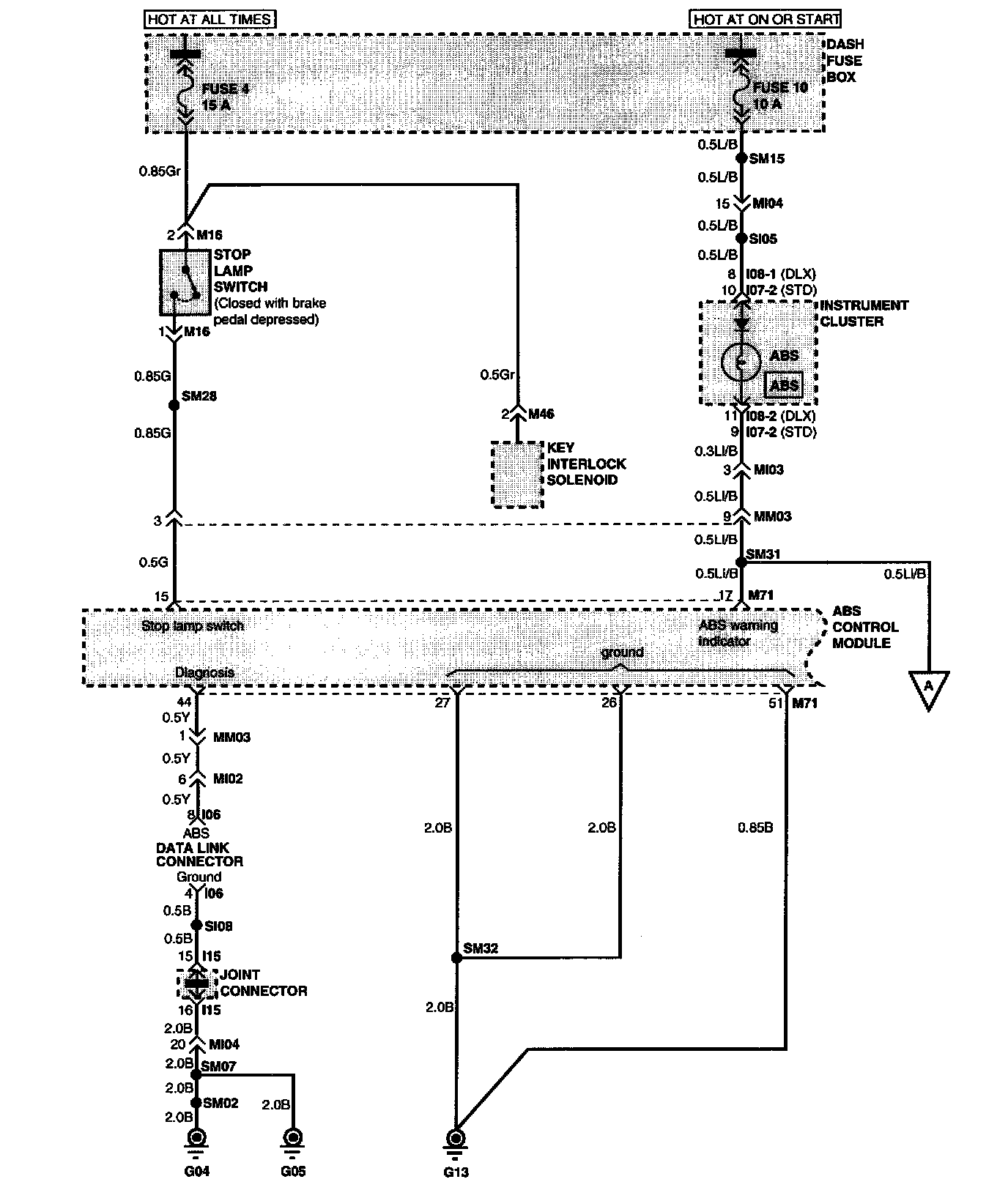

(Part 1 Of 3)
ABS Control Module
Dash Fuse Box
Instrument Cluster
Joint Connector
Key Interlock Solenoid
Stop Lamp Switch

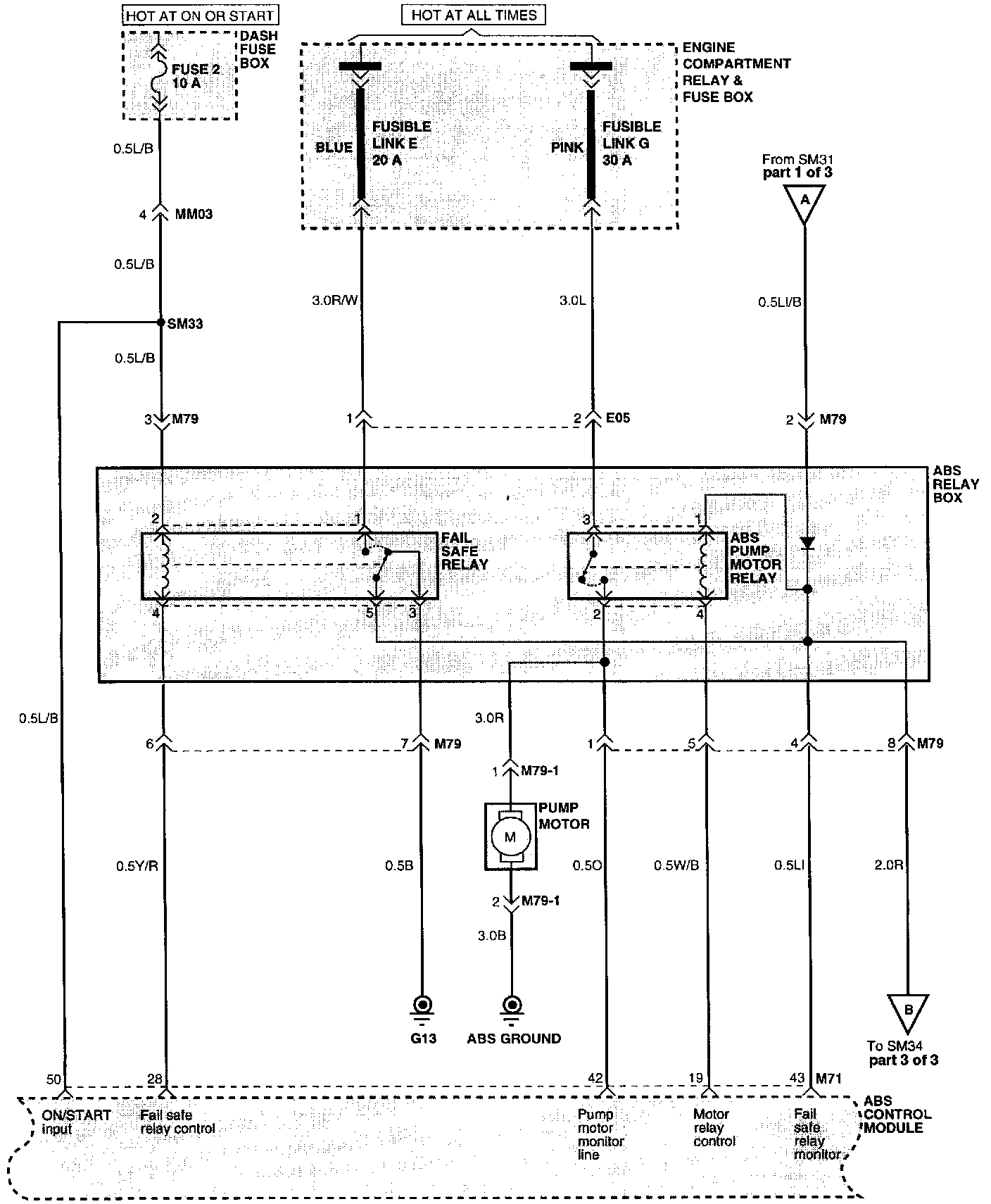

Anti-Lock Brake System (Part 2 Of 3):

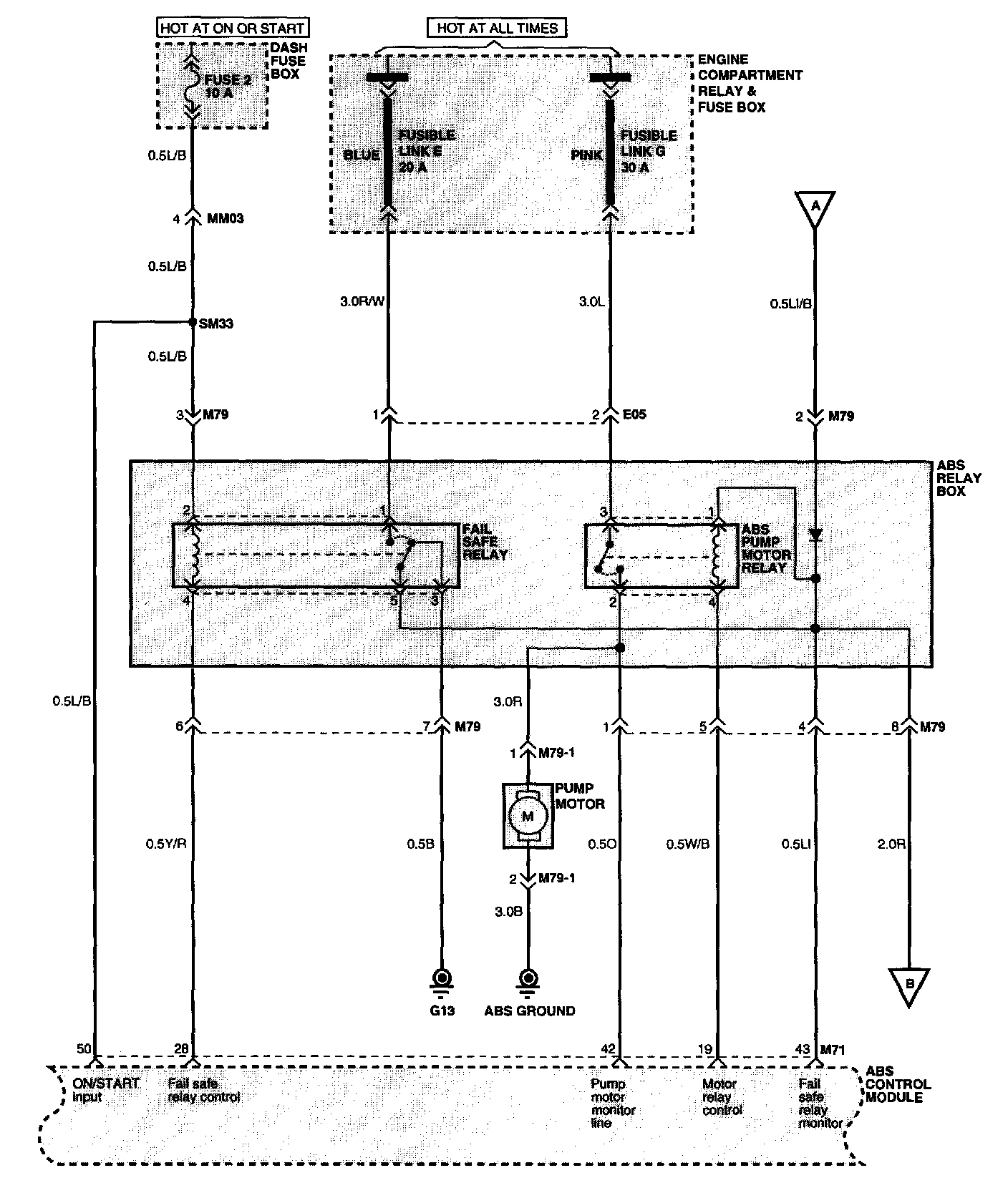

(Part 2 Of 3)
ABS Pump Motor Relay
ABS Relay Box
ABS Control Module
Dash Fuse Box
Engine Compartment Relay & Fuse Box
Fail Safe Relay
Pump Motor

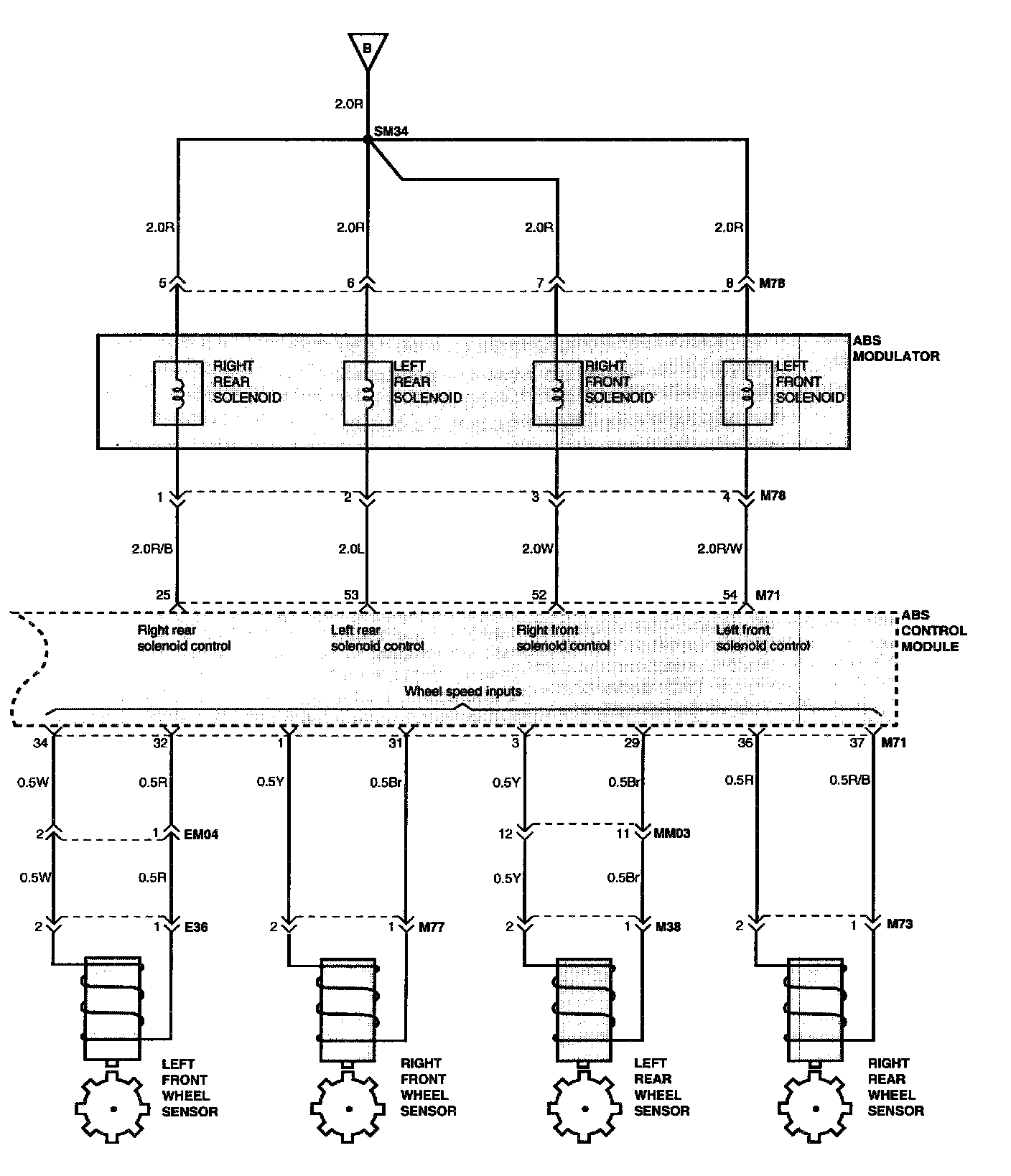

(Part 3 Of 3)
ABS Modulator
ABS Control Module
Left Front Wheel Sensor
Left Rear Wheel Sensor
Right Front Wheel Senor
Right Rear Wheel Sensor




PART 1 OF 3




PART 2 OF 3




PART 3 OF 3

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Anti-Lock Brake System.
Locations
