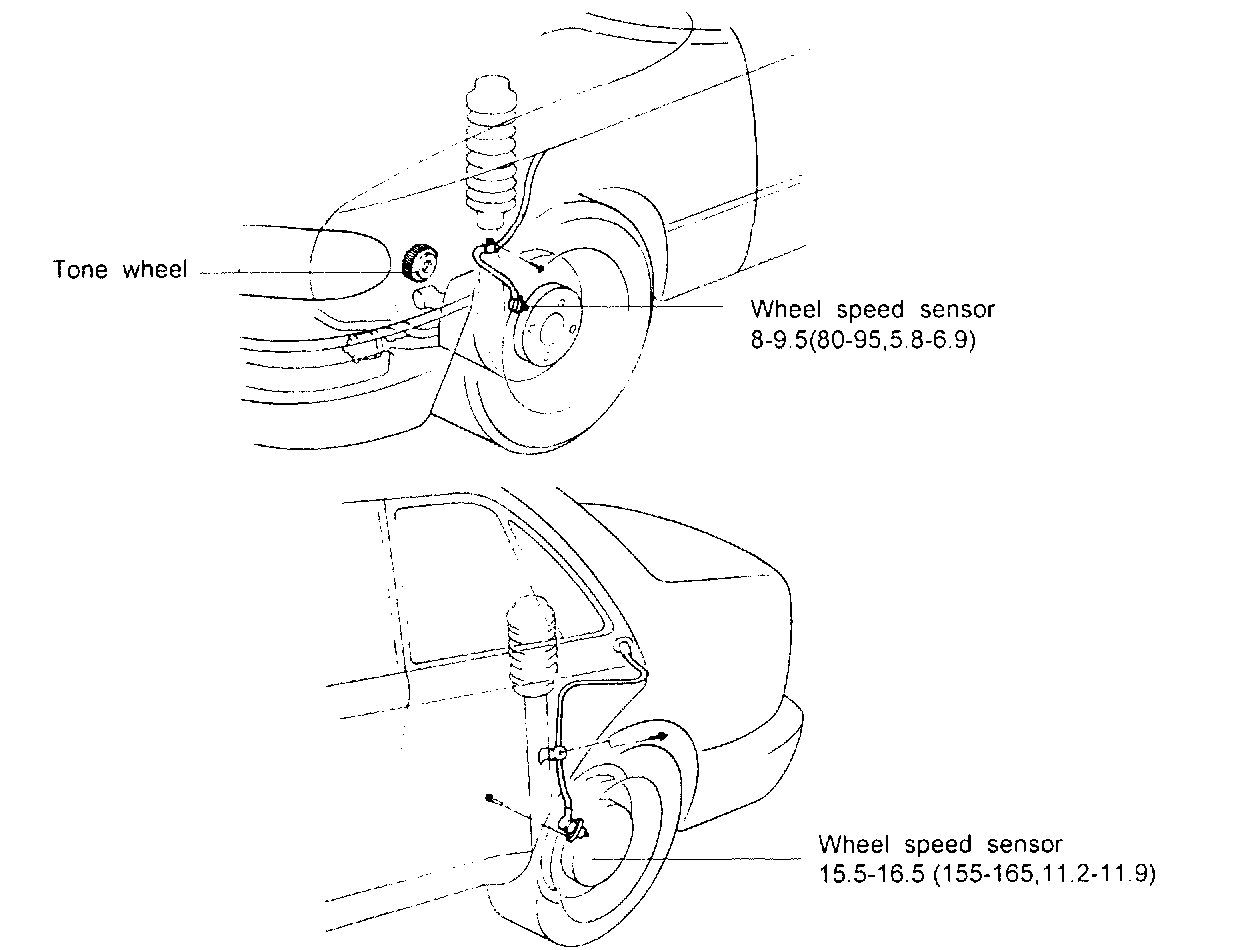

Wheel Speed Sensor: Locations

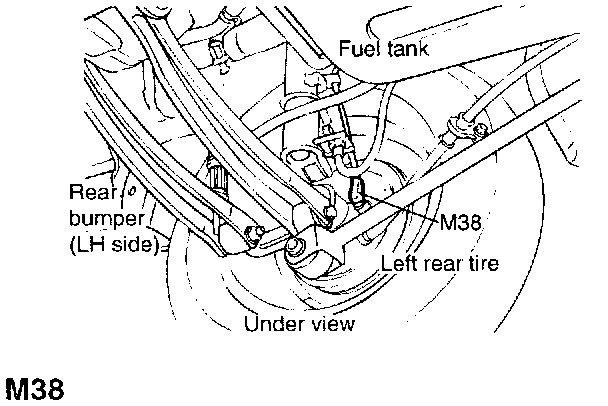

M38 Left Rear Wheel Sensor:

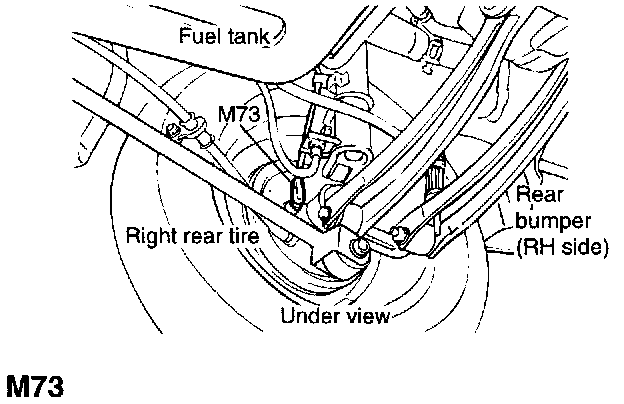

M73 Right Rear Wheel Sensor:

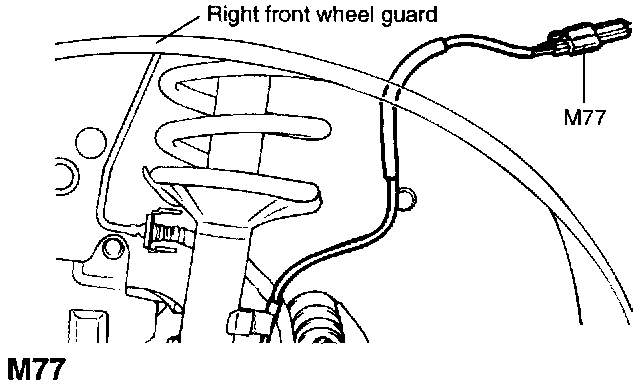

M77 Right Front Wheel Speed Sensor:



E36 (Left Front Wheel Sensor):
