Stop Lamp Switch Circuit

STOP LAMP SWITCH CIRCUIT
The stop lamp switch senses whether the brake pedal is depressed or released, and sends the signal to the ABSCM

INSPECTION PROCEDURE

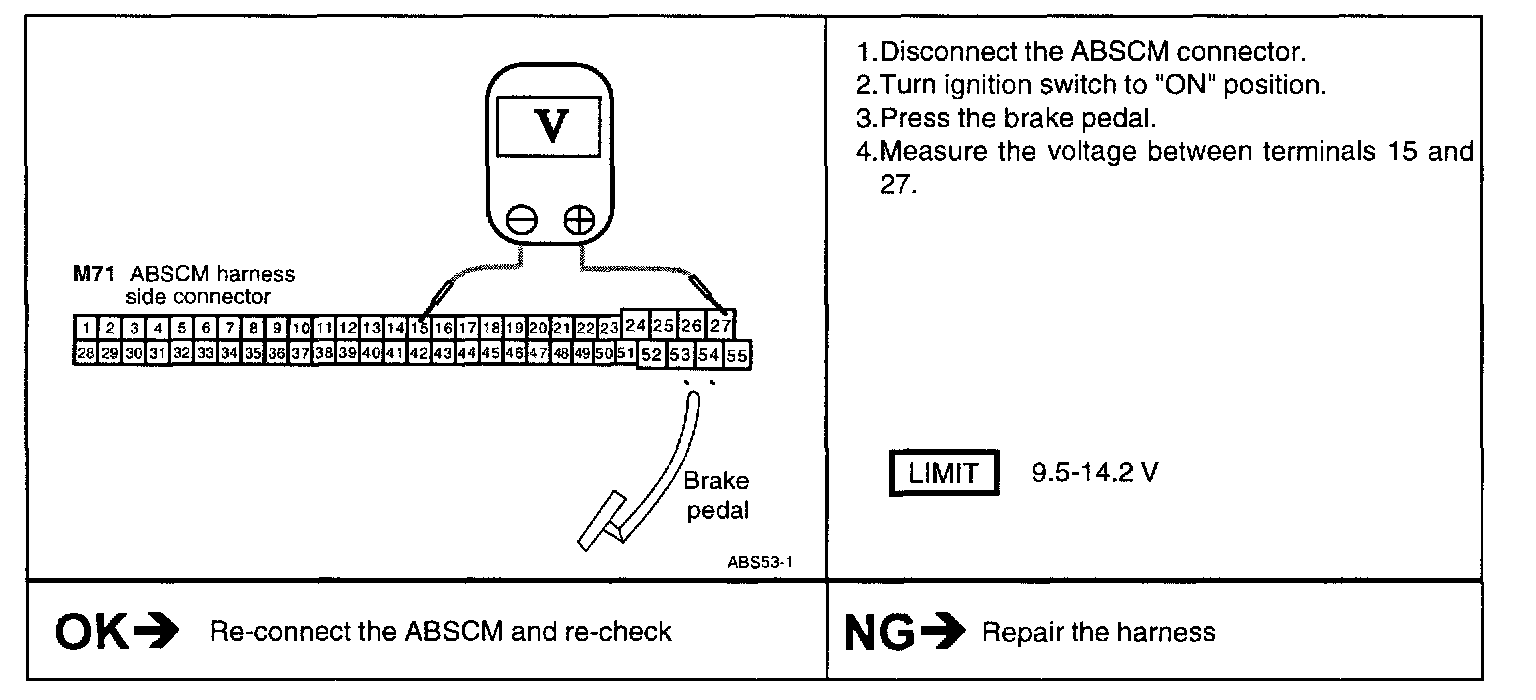

1. Check the stop lamp switch circuit
