Power Mirror Switch: Testing and Inspection

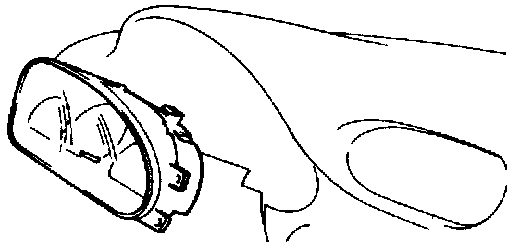

1. Remove the mirror switch from the cluster facia panel.

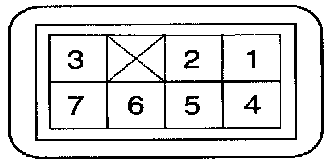

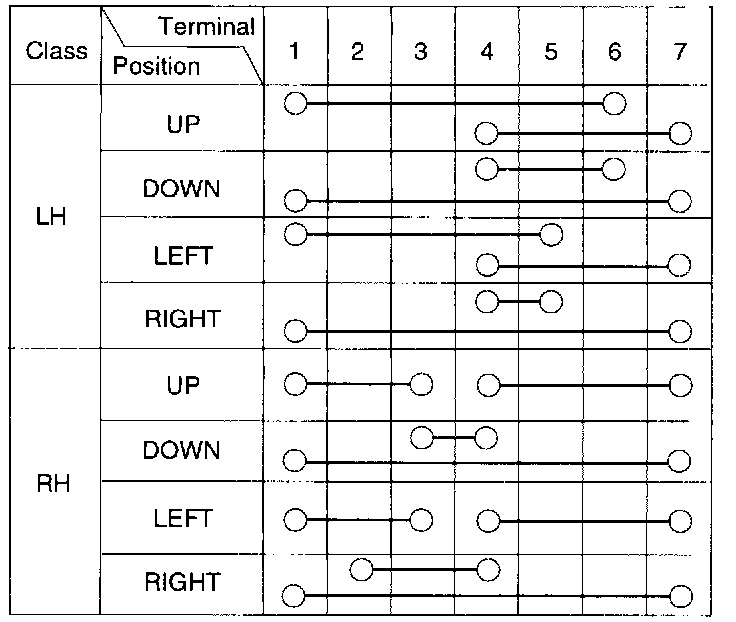

2. Operate the switch and check for continuity between he terminals. If continuity is not as specified, replace the mirror switch.
