Clutch Pedal Assembly: Service and Repair

CLUTCH PEDAL

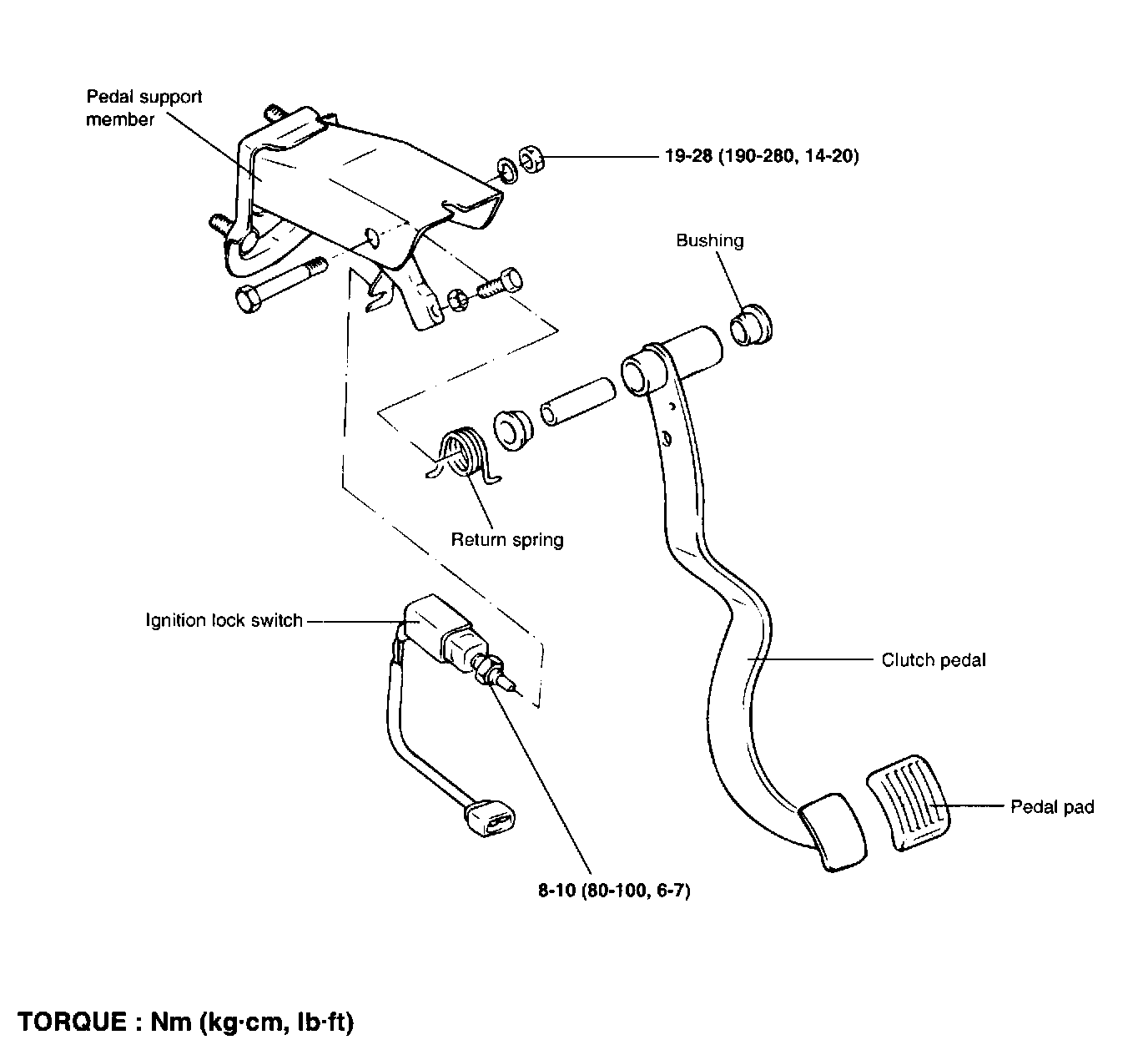

Components

Disassembly





1. Disassemble the cotter pin, washer and clevis pin.
2. Disassemble the clutch pedal mounting bolt.

Inspection

1. Check the pedal shaft and bushing for wear.
2. Check the clutch pedal for bending or torsion.
3. Check the return spring for damage or deterioration.
4. Check the pedal pad for damage or wear.

Check Ignition Lock Switch








Remove the ignition lock switch and check continuity between the terminals.
If the continuity is not as specified, replace the switch.

Installation

1. Installation is the reverse of removal.





2. Apply multi-purpose grease to the bushings.





3. Apply the multi-purpose grease to the clevis pin and washer
4. Install the push rod to the clutch pedal.
5. Adjust the clutch pedal clevis pin play.
