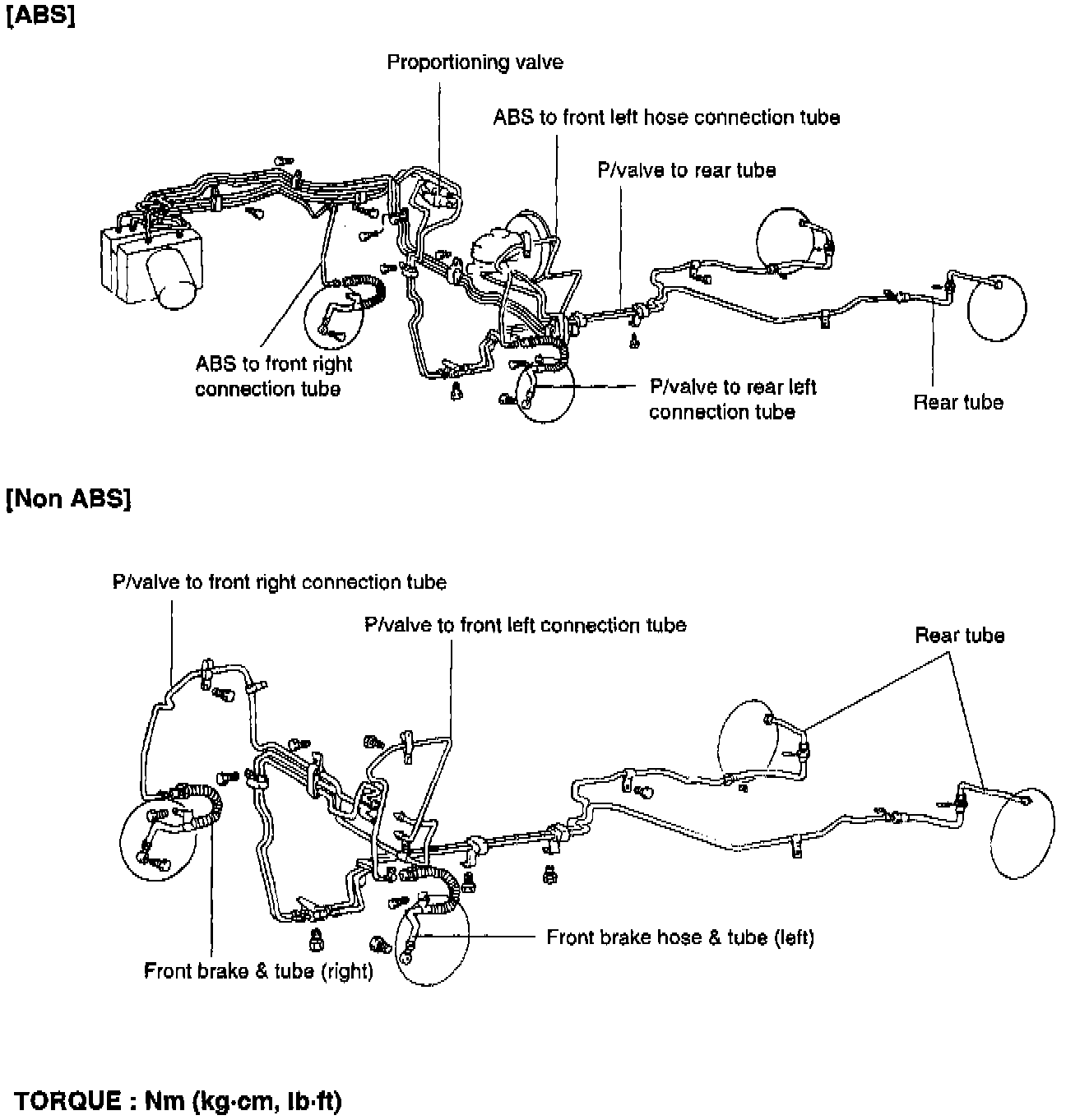

Brake Hose/Line: Testing and Inspection

INSPECTION

1. Check the brake lines for cracks, crimps and corrosion.
2. Check the brake hoses for cracks, damage and leakage.
3. Check the brake line flare nuts for damage and leakage.

REASSEMBLY

1. Install the brake hoses without twisting them.
2. The brake tubes should be installed away from sharp edges, weld beads or moving parts.
3. Tighten the connections to the specified torque.
Flare nuts: 13 - 17 Nm (9 - 12 ft. lbs.)
Brake hose to front caliper: 25 - 30 Nm (18 - 22 ft. lbs.)
