Antenna: Testing and Inspection

1. Disconnect the 3P connector from the motor.




2. Check if the battery voltage is measured between terminal 3 and terminal 1 at all the time.
3. Check if the battery voltage is measured between terminal and terminal 1 when ignition switch and audio switch is turned ON.

Checking The Antenna:

4. Connect battery source to terminal 2 and terminal 3 of component side and check that motor turns (Antenna moves up).
5. Then, disconnect battery source from terminal 2 and check that motor turns (Antenna moves down).

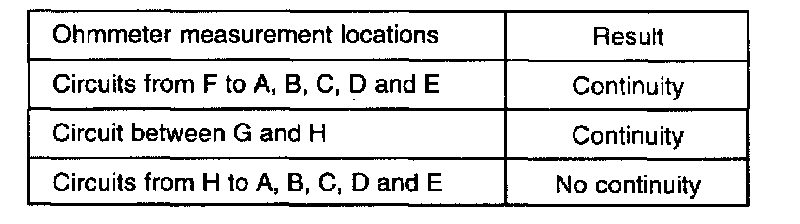

Checking the antenna
