Transaxle KM175

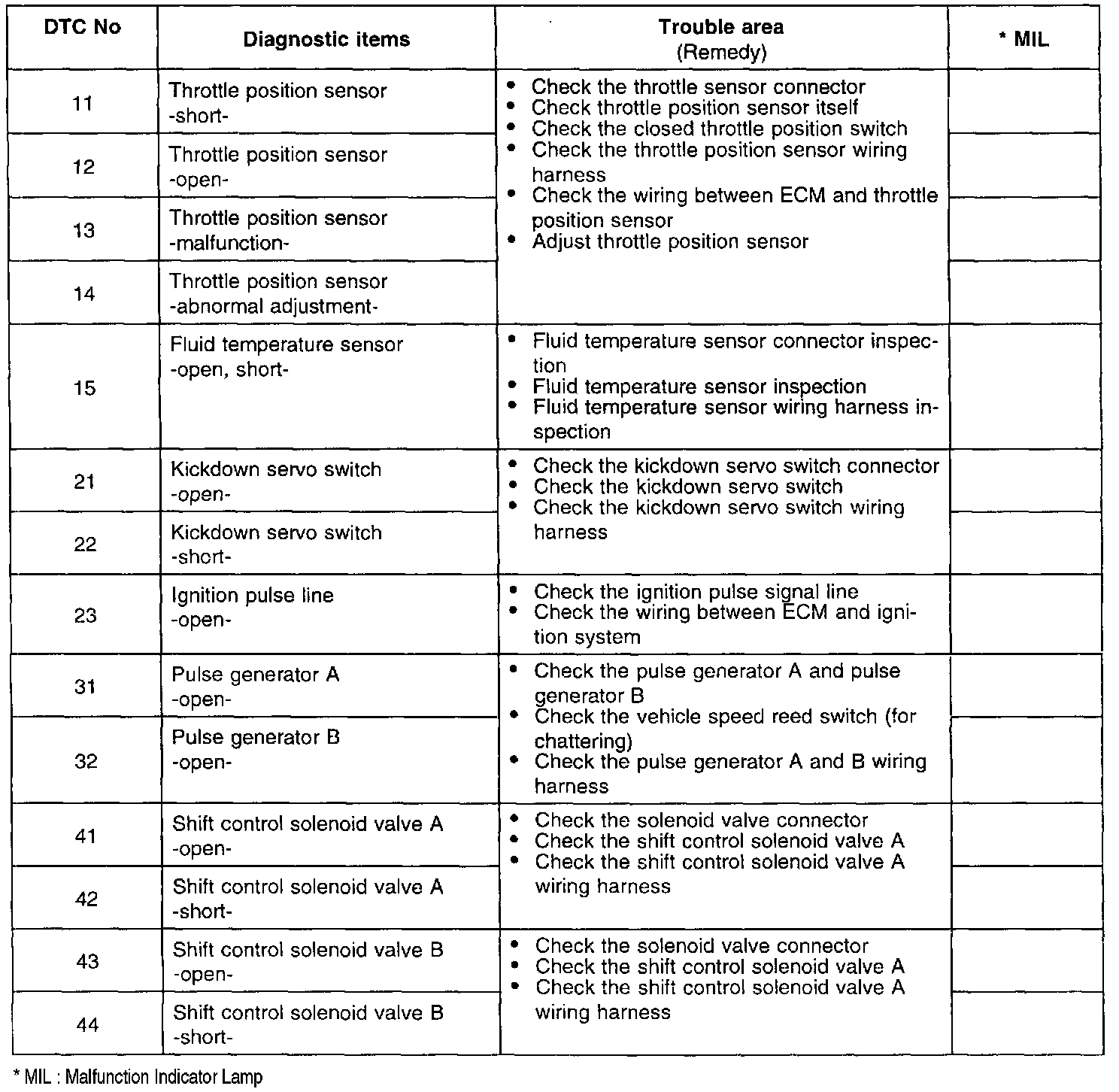

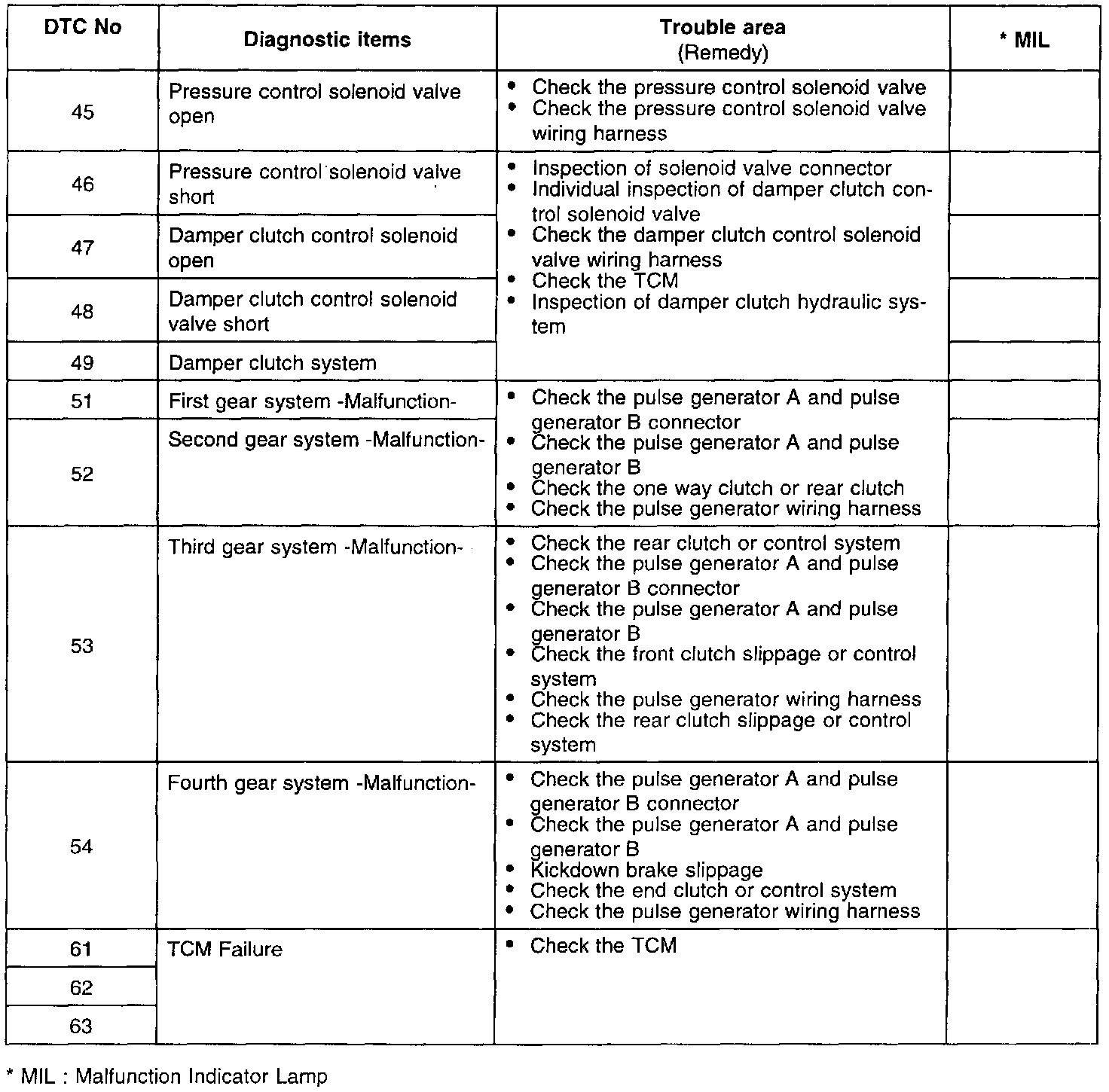

DIAGNOSTIC TROUBLE CODES

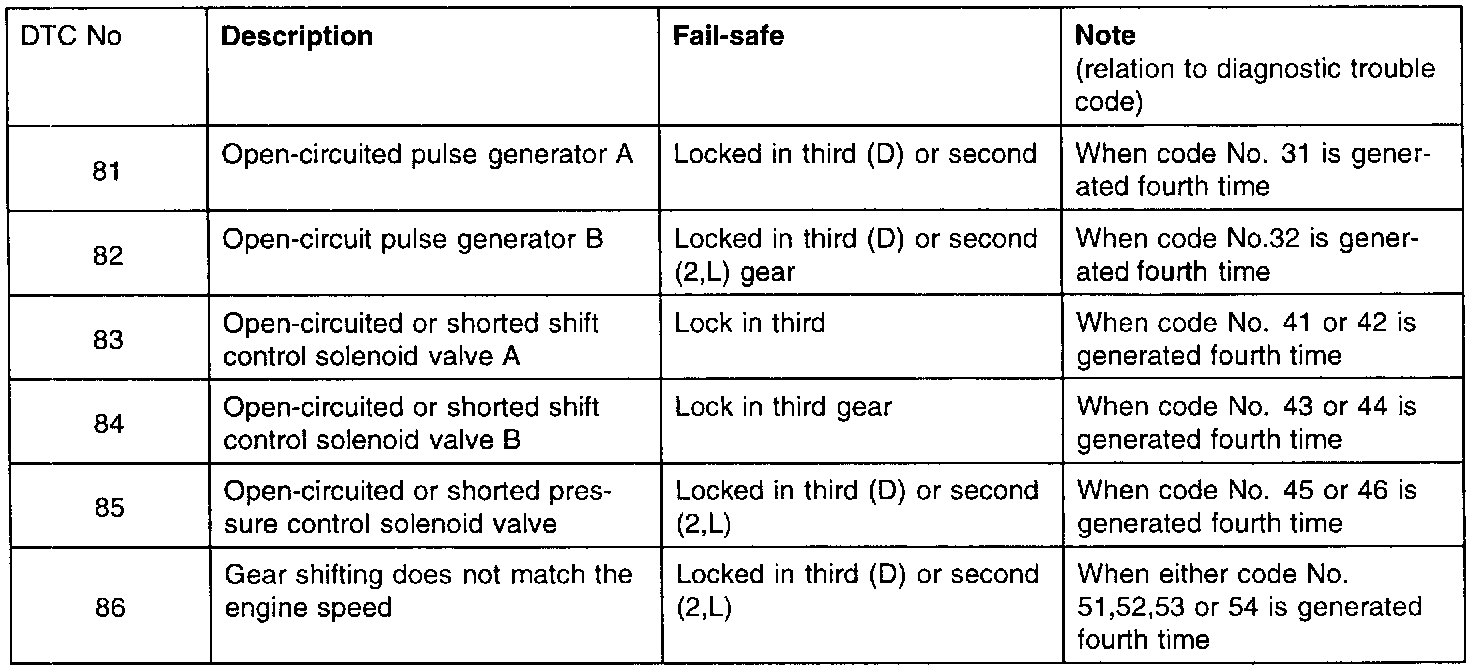

FAIL-SAFE ITEMS




If the fail-safe system is activated and the transaxle is locked in third gear, the diagnostic trouble code in the Fail-Safe Code Description will be stored in the RAM. Three of these fault codes can be stored.
