Transmission Cooler: Service and Repair

AUTOMATIC TRANSAXLE OIL COOLER

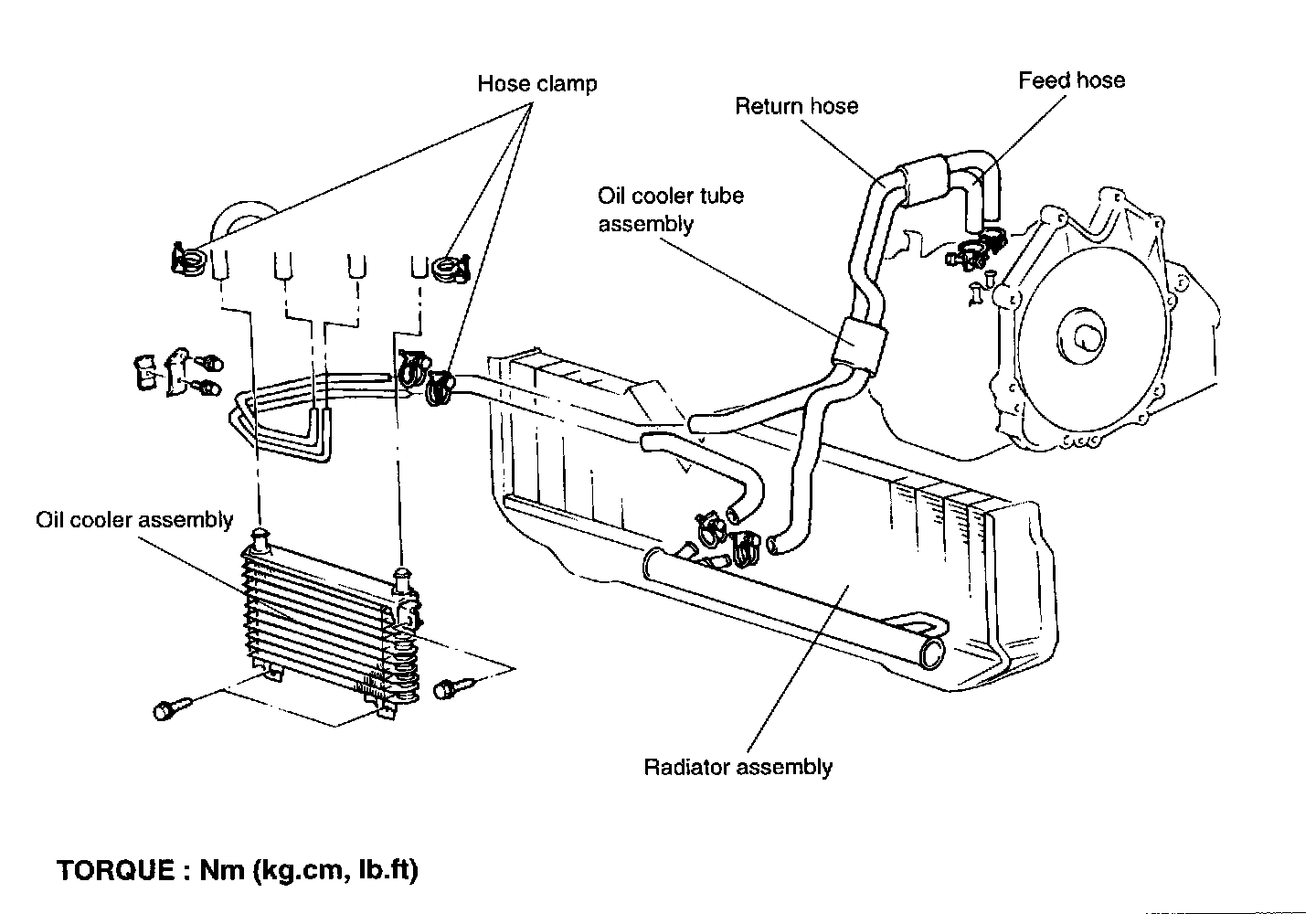

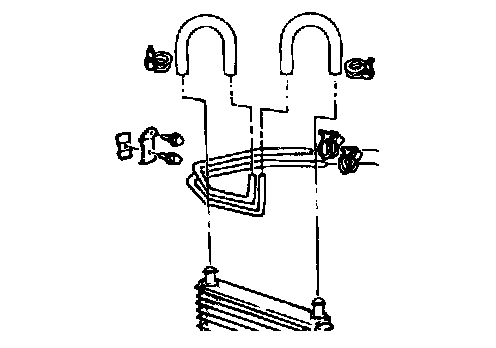

Components

Removal

1. Remove the battery and air cleaner assembly.
2. Remove the turn signal light assembly and transverse pillar
3. Disconnect the transaxle oil cooler hoses from the automatic transaxle.
4. Disconnect the A/T cooler hose.
5. Remove the automatic transaxle oil cooler assembly

CAUTION:
Plug the ends of the oil cooler hoses and the automatic transaxle port to prevent the transaxle fluid from spilling out and foreign material from getting in. Plug the nipple at the automatic transaxle in order to prevent entrance of foreign material into the automatic transaxle.

NOTE: When removing each part, avoid spilling the transaxle fluid.

Installation





1. Wipe the connection threads and tightly contacting surfaces clean of dust and dirt.
2. Tighten the A/T cooler hose.
