Center Support: Service and Repair

CENTER BEARING AND INNER SHAFT





Components

Disassembly

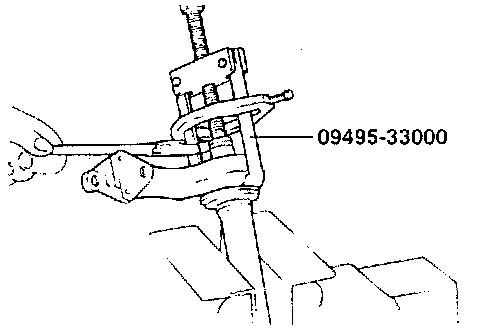

1. Using the special tool, disassemble the center bearing bracket from the inner shaft.





2. Using the special tool, disassemble the center bearing from the center bearing bracket.

Inspection

1. Check the inner shaft for damage, bending or rust.
2. Check the inner shaft splines for wear or damage.
3. Check the center bearing for scoring, discoloration and roughness of the roller journal's moving surfaces.

Assembly

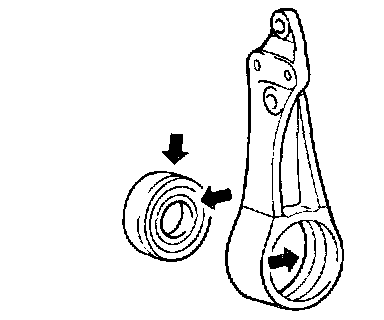

1. Apply multipurpose grease to the center bearing and inside the center bearing bracket.





2. Using the special tools, press the center bearing into the center bearing bracket.

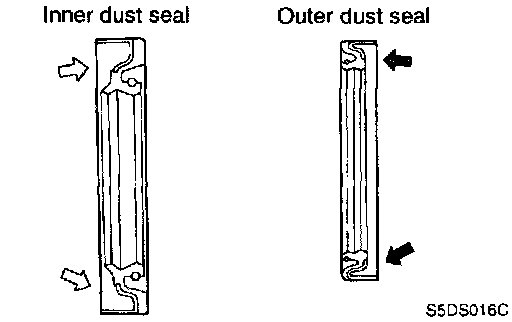

3. Apply multipurpose grease to the rear surface of all dust seals.

Recommended grease: Multipurpose grease SAE J310, NLGI No. 2
Inner dust seal: 7 - 10 g (0.25 - 0.35 oz.)
Outer dust seal: 4 - 6 g (0.14 - 0.21 oz.)

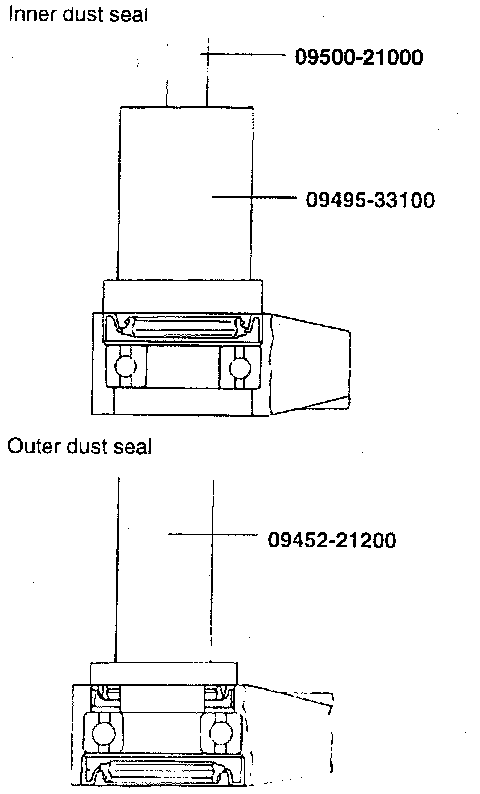

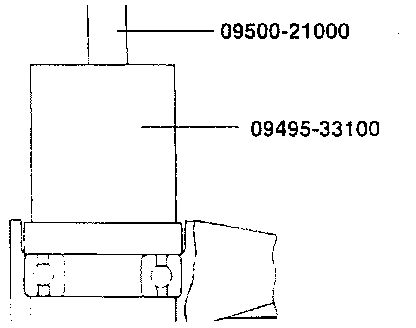

4. Using the special tool, tap in the dust seals until they are flush with the edge of the center bearing bracket.

NOTE:
When applying grease, make sure that it does not adhere to anything outside the lip.

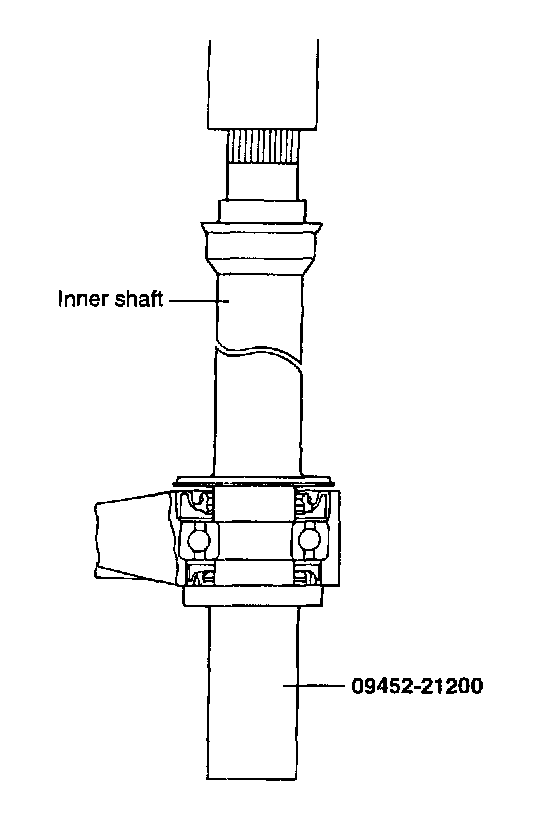

5. Using the special tool, support the center bearing as shown in the figure, then press in the inner shaft.
