Antenna: Service and Repair

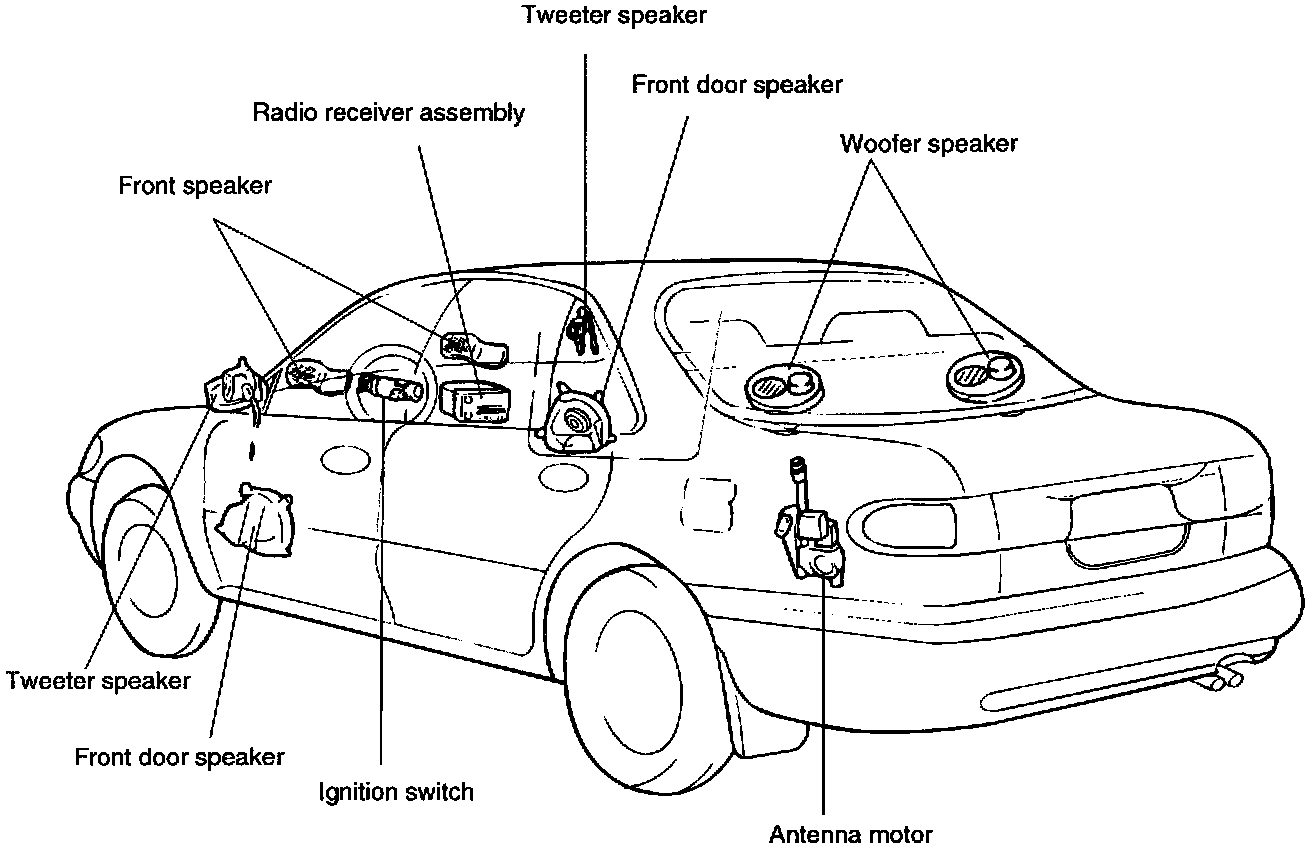

COMPONENTS

1. Disconnect negative battery terminal.

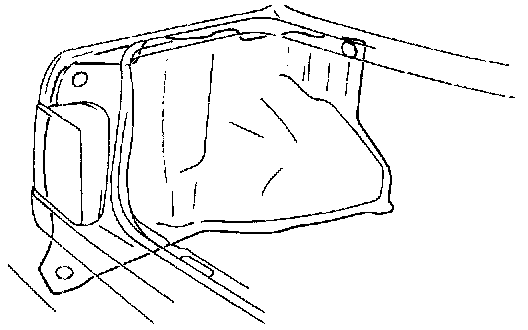

2. Remove the luggage side trim.

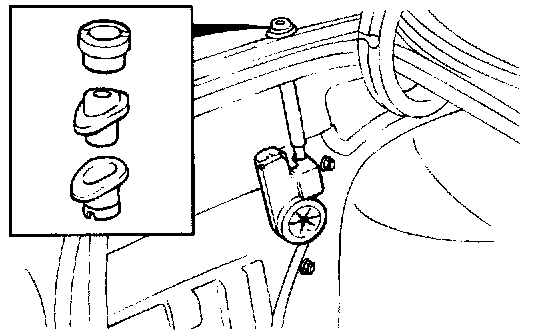

3. Remove the antenna nut, mounting nut and tapping screw for ground.
4. Disconnect the connector and antenna cable.




5. Remove the antenna assembly.
6. Installation is the reverse of removal procedure.
