E.L.C. 4-Speed A/T Control Components

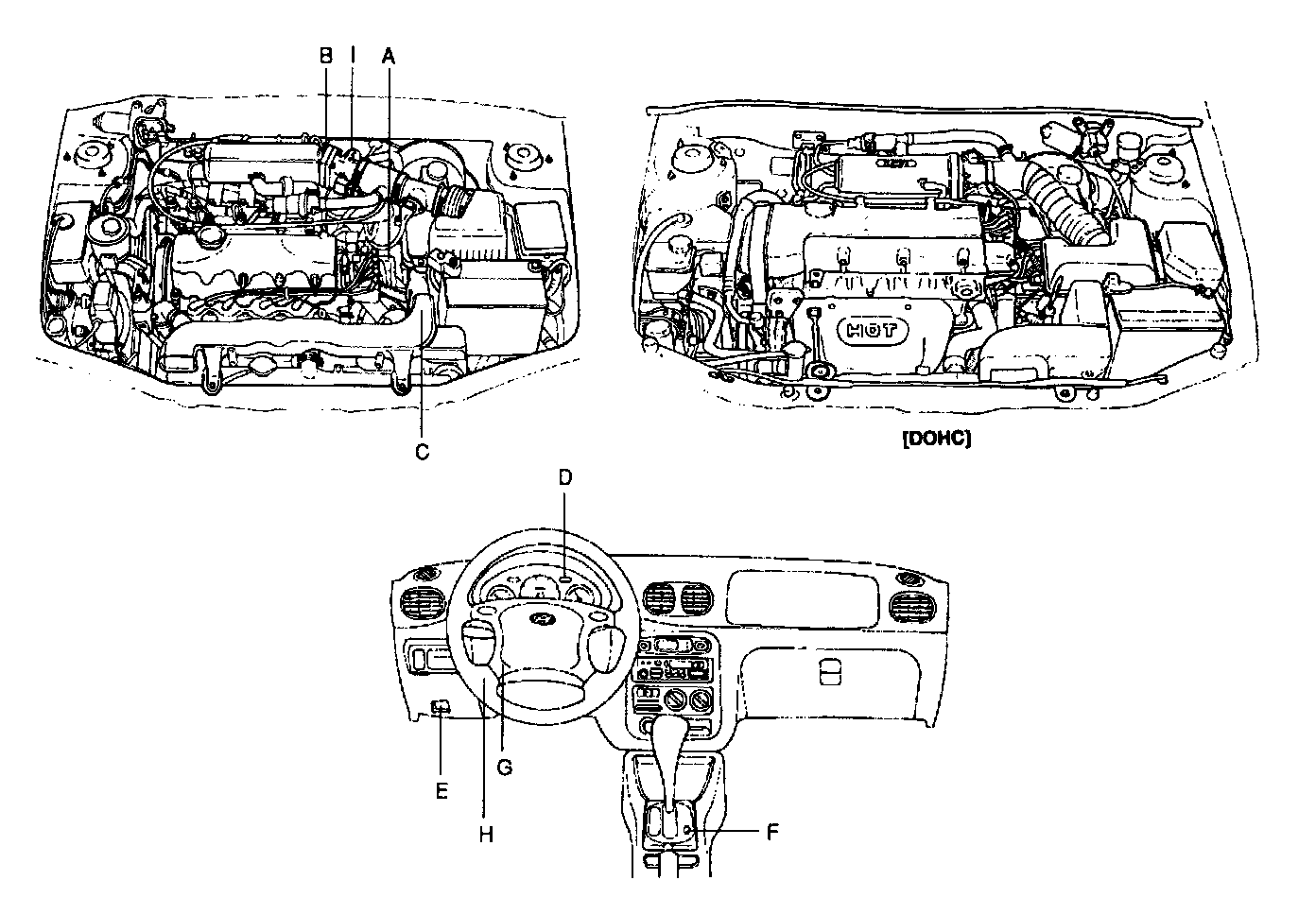

Underhood and Controls View

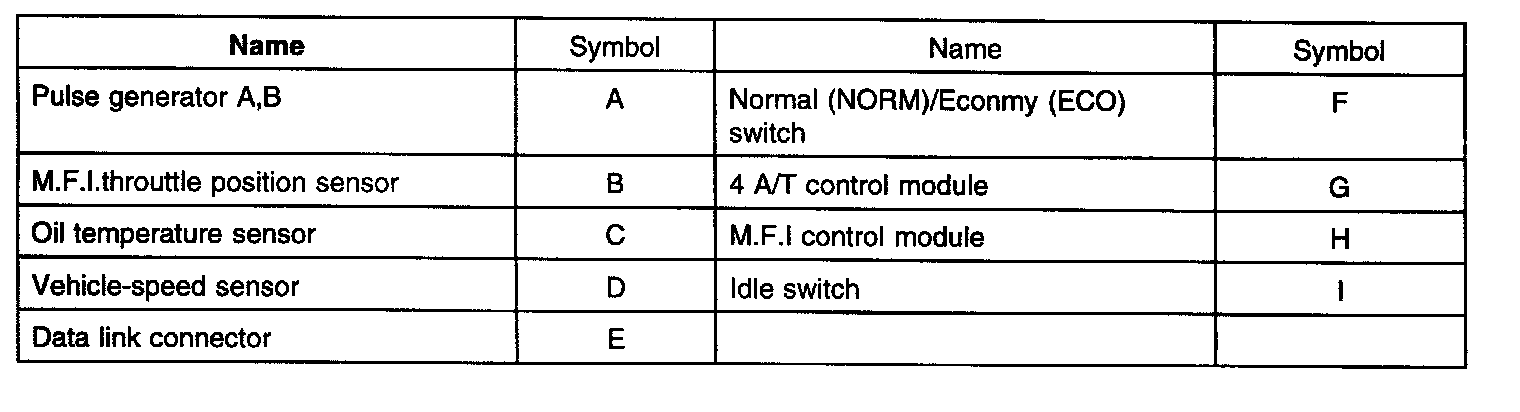

Underhood and Controls View, Legend

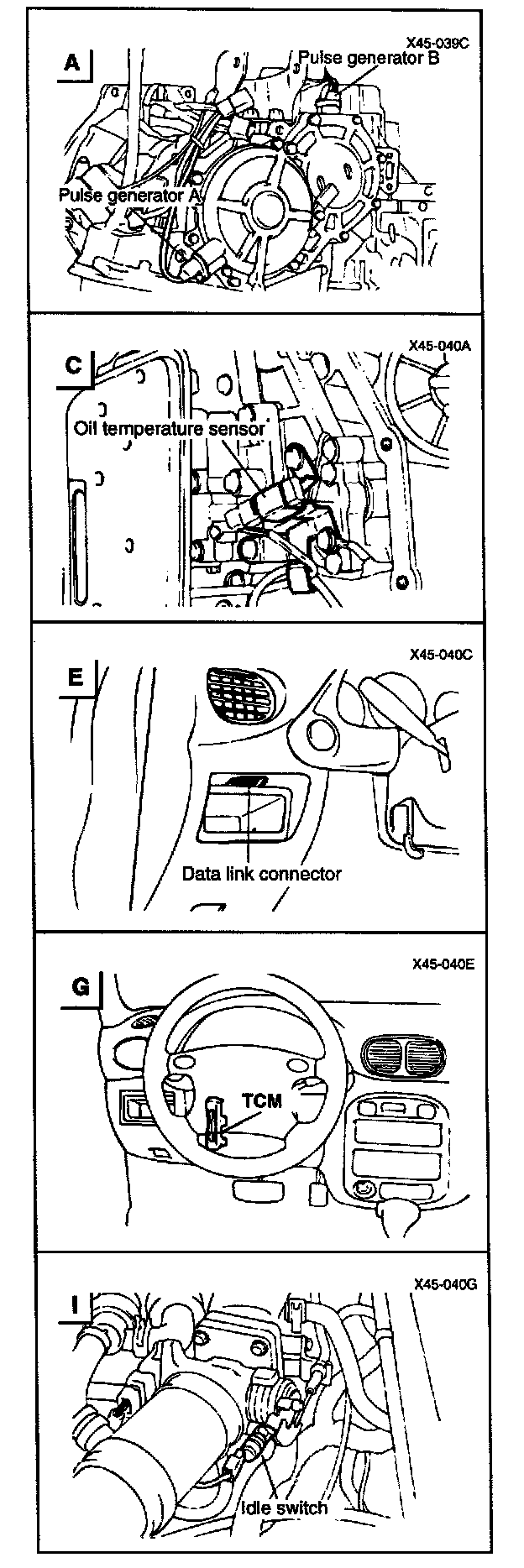

Components A, C, E, G, I

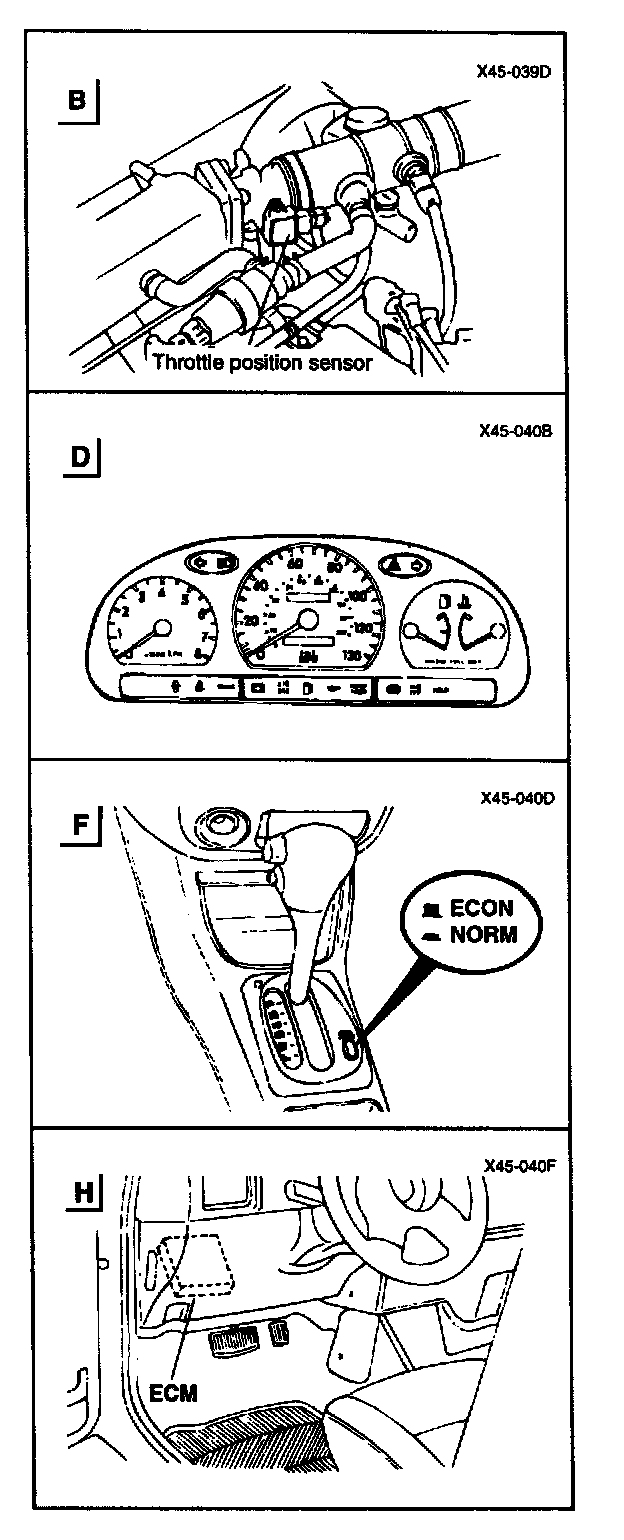

Components B, D, F, H
