Camshaft Position Sensor: Testing and Inspection

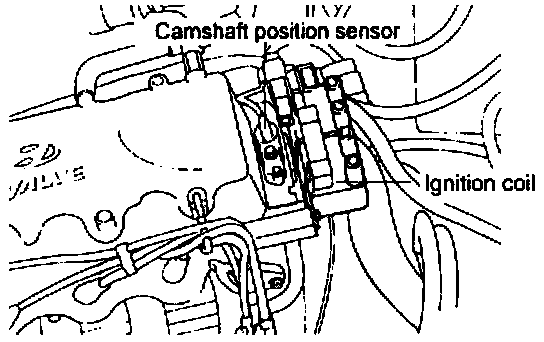

CAMSHAFT POSITION SENSOR
Camshaft Position (CMP) sensor, senses the TDC point of No.1 cylinder in its compression stroke, whose signals are fed to ECM to be used to determine the sequence of fuel injection.

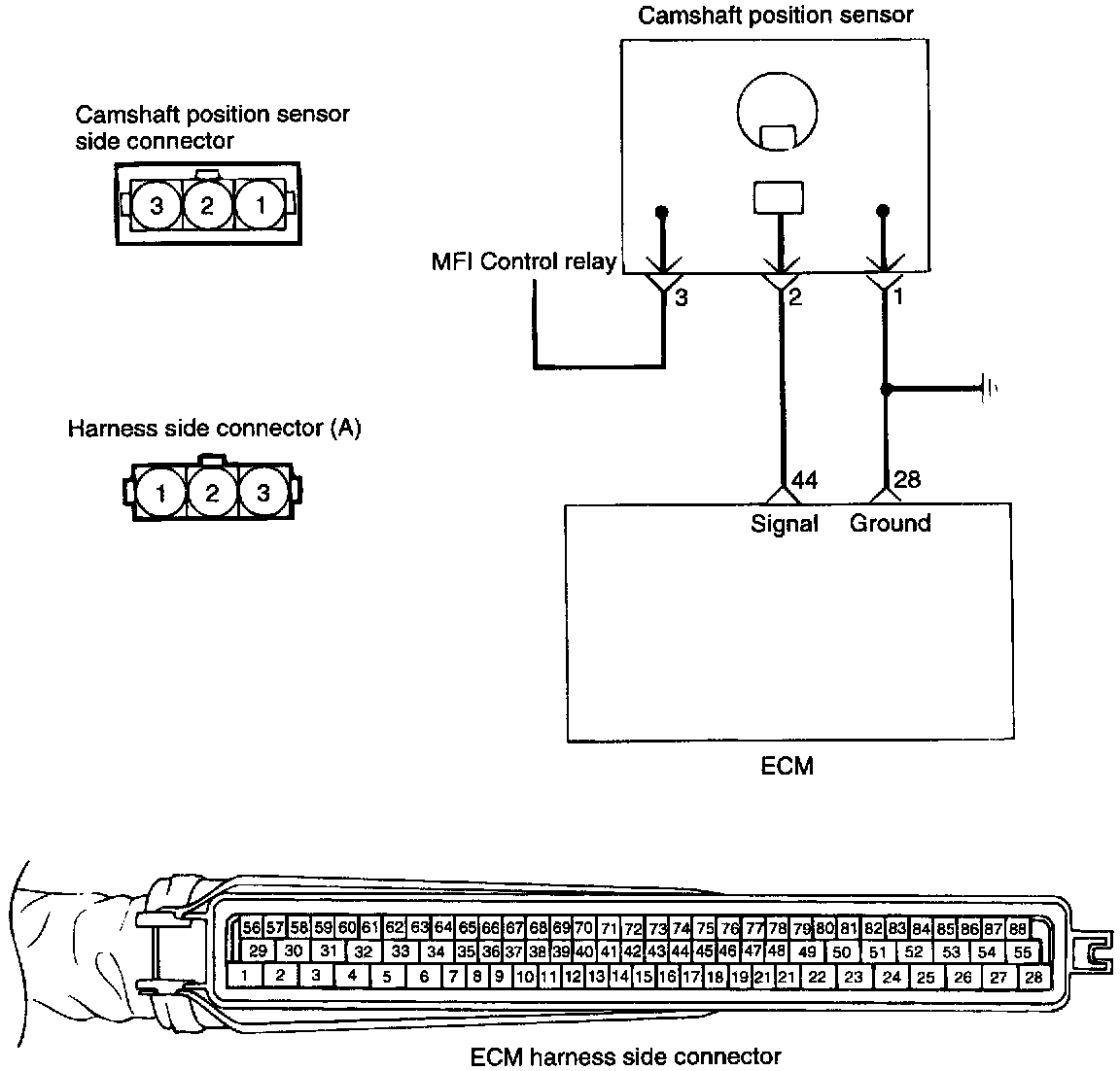

CIRCUIT DIAGRAM

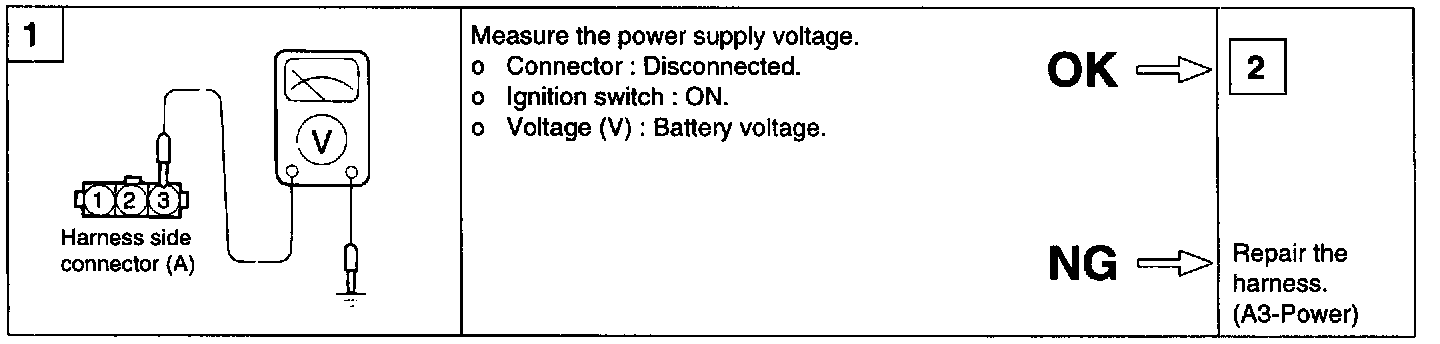

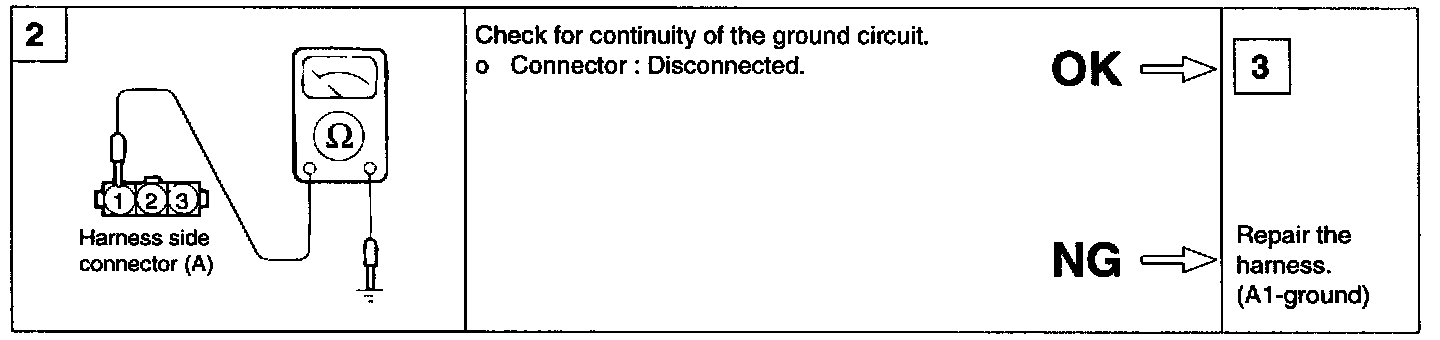

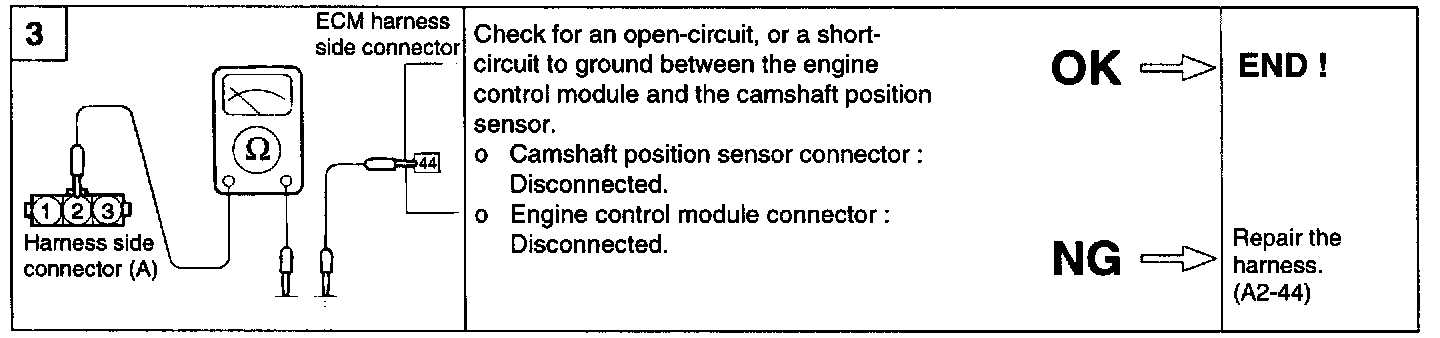

HARNESS INSPECTION PROCEDURES

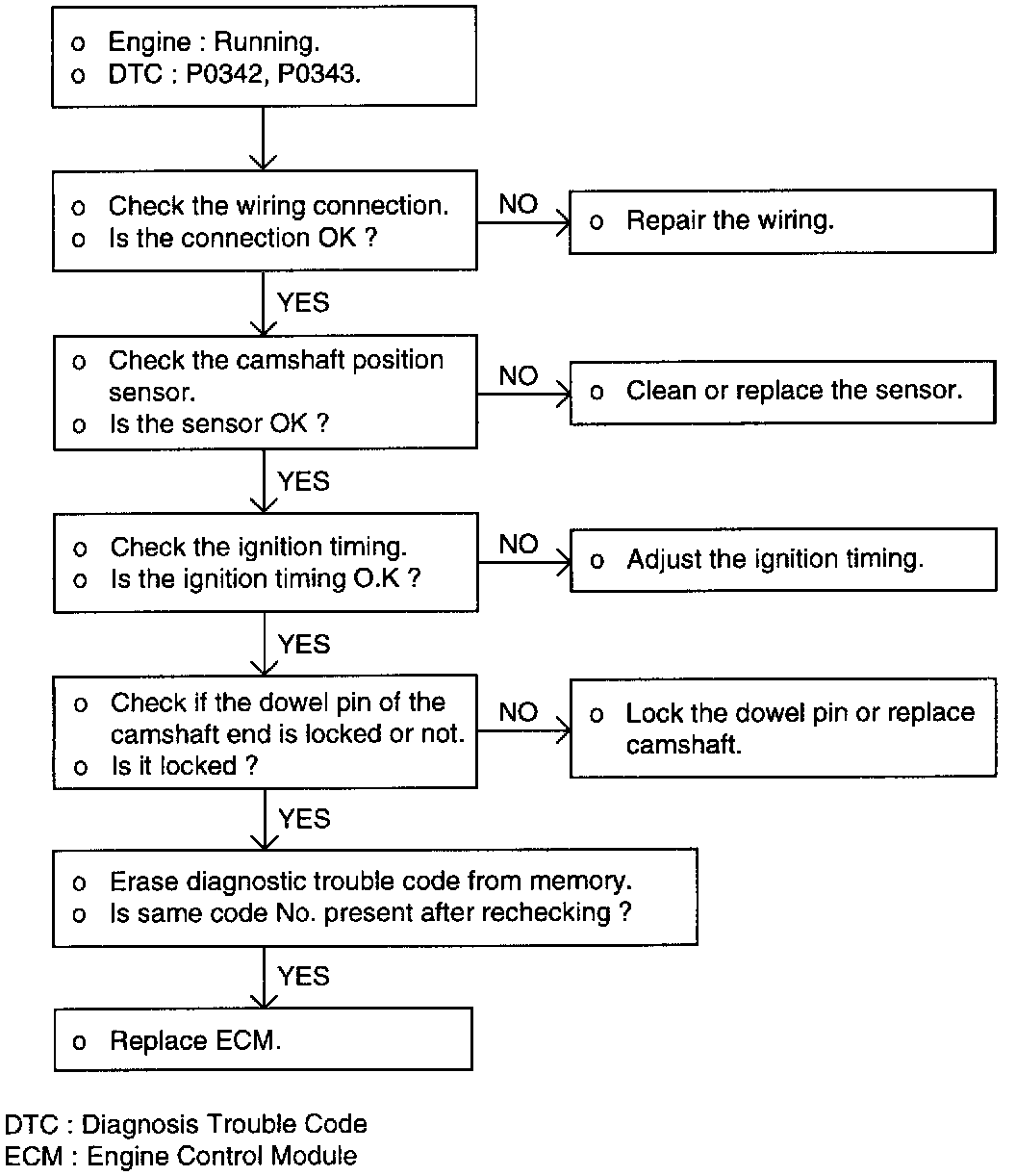

TROUBLESHOOTING PROCEDURES

TROUBLESHOOTING HINTS
If the camshaft position sensor does not operate correctly, correct sequential injection does not occur so the engine may stall or run irregularly at idle or fail to accelerate normally.
