Fluid - M/T: Service and Repair

REPLACEMENT OF TRANSAXLE GEAR OIL

Use HP Gear Oil SAE 75W/85W (API-GL-4)

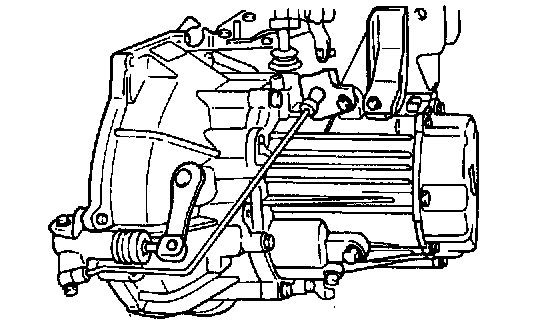

1. With the vehicle parked on a level surface, remove the drain plug and drain the transaxle oil.




2. Replace the gasket with a new one and install the drain plug.




3. Add new oil the through the filler plug, filling to a level 5-9mm (0.2-0.4 inch) below the plug opening.

Standard value: Transaxle oil total capacity 2.15 L (2.27 U.S. qts., 1.89 Imp. qts.)
