Automatic Transaxle Control System Components

Overall Vehicle View:

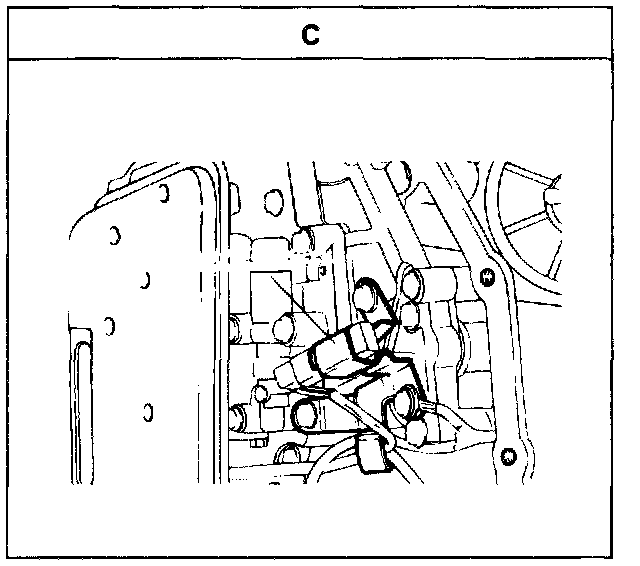

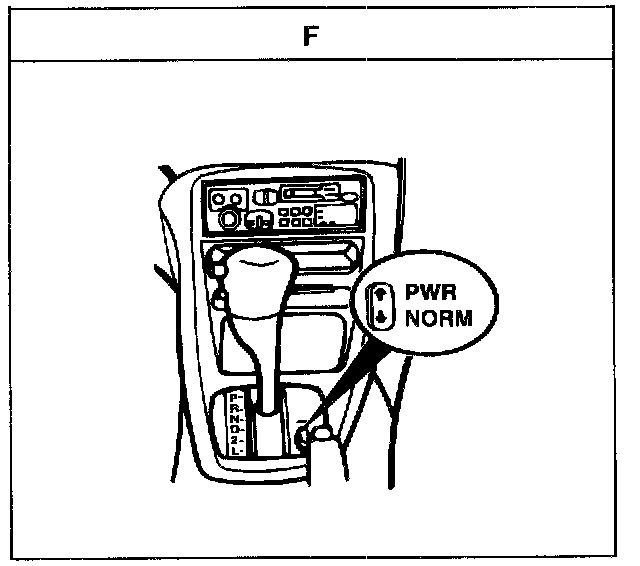

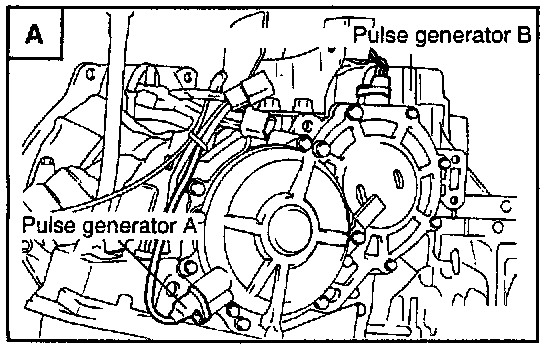

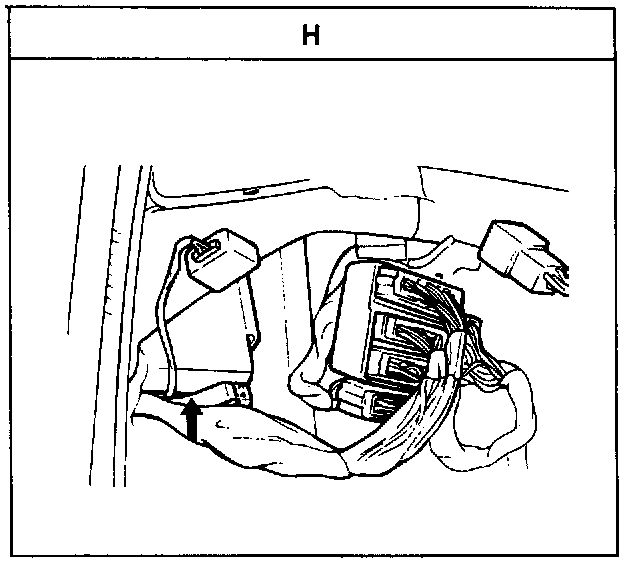

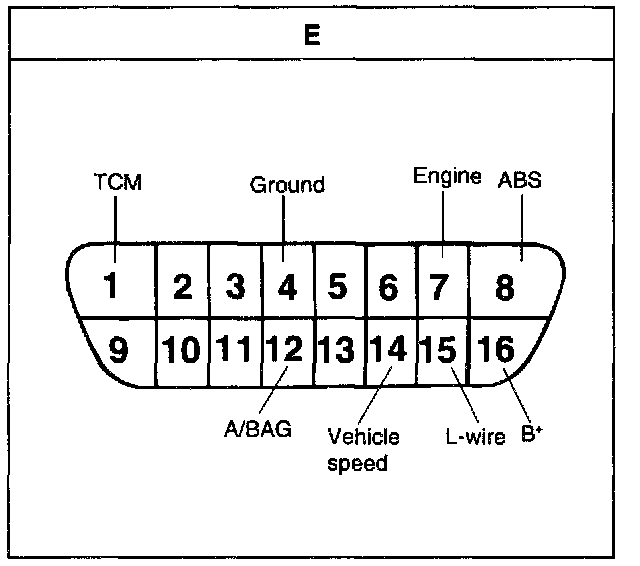

E.L.C. 4-SPEED AUTOMATIC TRANSAXLE CONTROL COMPONENTS
