Installation

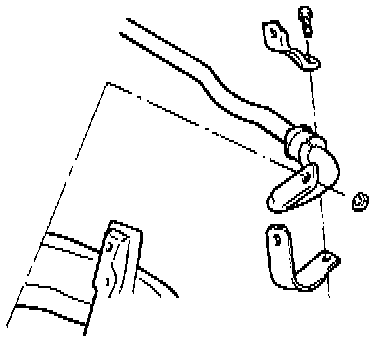

1. Install the bushing onto the stabilizer bar.





2. Align the upper and lower fixtures with the bushing. Make sure the projections are secured in the space between the fixtures.





3. Using the access opening, temporarily tighten the bushing fixtures then position the opposite side bushing.
4. Install the steering gear box assembly.

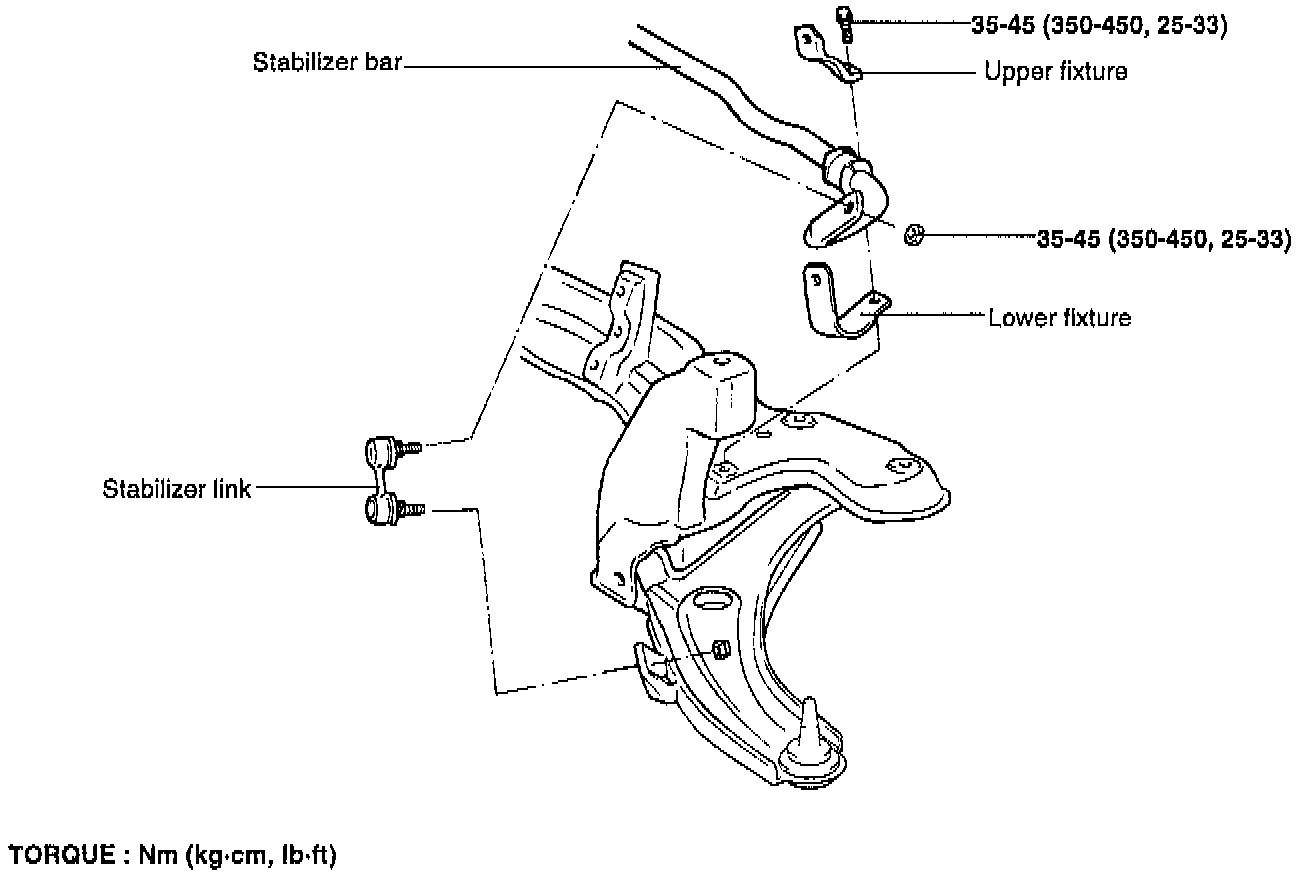

5. Tighten the stabilizer bar mounting bracket bolts.





6. Tighten the stabilizer bar link mounting self locking nut.
7. Connect the tie rod end ball joint to the knuckle.
