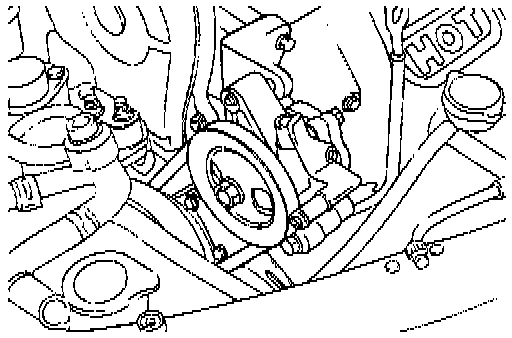

Removal Repair and Installation

1. Remove the pressure hose from the oil pump.







2. Disconnect the suction hose from the suction connector and drain the fluid into a container.







3. Loosen the oil pump mounting bolts to remove the V-belt.
4. Loosen the tension adjusting bolt.








5. Remove the power steering drive belt from the power steering oil pump pulley.
6. Remove the power steering oil pump mounting bolts and the tension adjusting bolt.







7. Remove the power steering oil pump assembly and overhaul the pump.


NOTE: Be careful not to drip off fluid from the power steering oil pump.

8. After assembling the pump, install in the reverse order of removal.

NOTE:
- Install the hoses so that they are not twisted and they do not come in contact with any other parts.
- Install parts by reference to the torque specification.
- Replenish the fluid, using ATF DEXRON II, the specified fluid
- Bleed the system.
- Check the oil pump pressure.
