Assembly

PROCEDURE
1. Install the oil pump switch.
2. Install the flow control valve spring, valve and connector in the pump body.

NOTE: Apply a thin coat of specified ATF DEXRON II type fluid to all the replaced parts including the oil seal and the O-ring.

3. Install the guide bracket and nut.

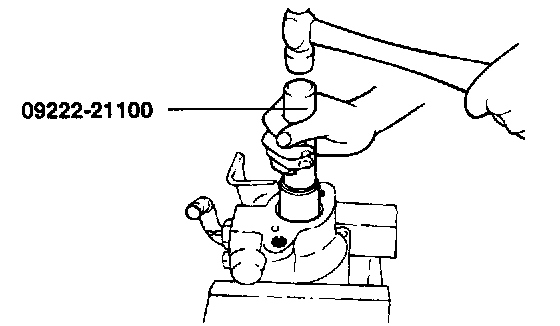

4. Using the Special Service Tool (SST), install the oil seal into the pump body.
5. Gently insert the shaft assembly and install the snap ring.





6. Install the pump pulley with woodruff key in place.





7. Install the spring and the inner and outer O-rings.
8. Install the front side plate.





9. Insert the pins into the pin grooves of front housing, then install the cam ring, paying attention to its direction.
10. Install the rotor with its punch marked side facing towards the front side plate.





11. Install the vane plates with the round end facing outward.
12. Install the gasket and the rear cover.
13. Tighten the suction connector.
