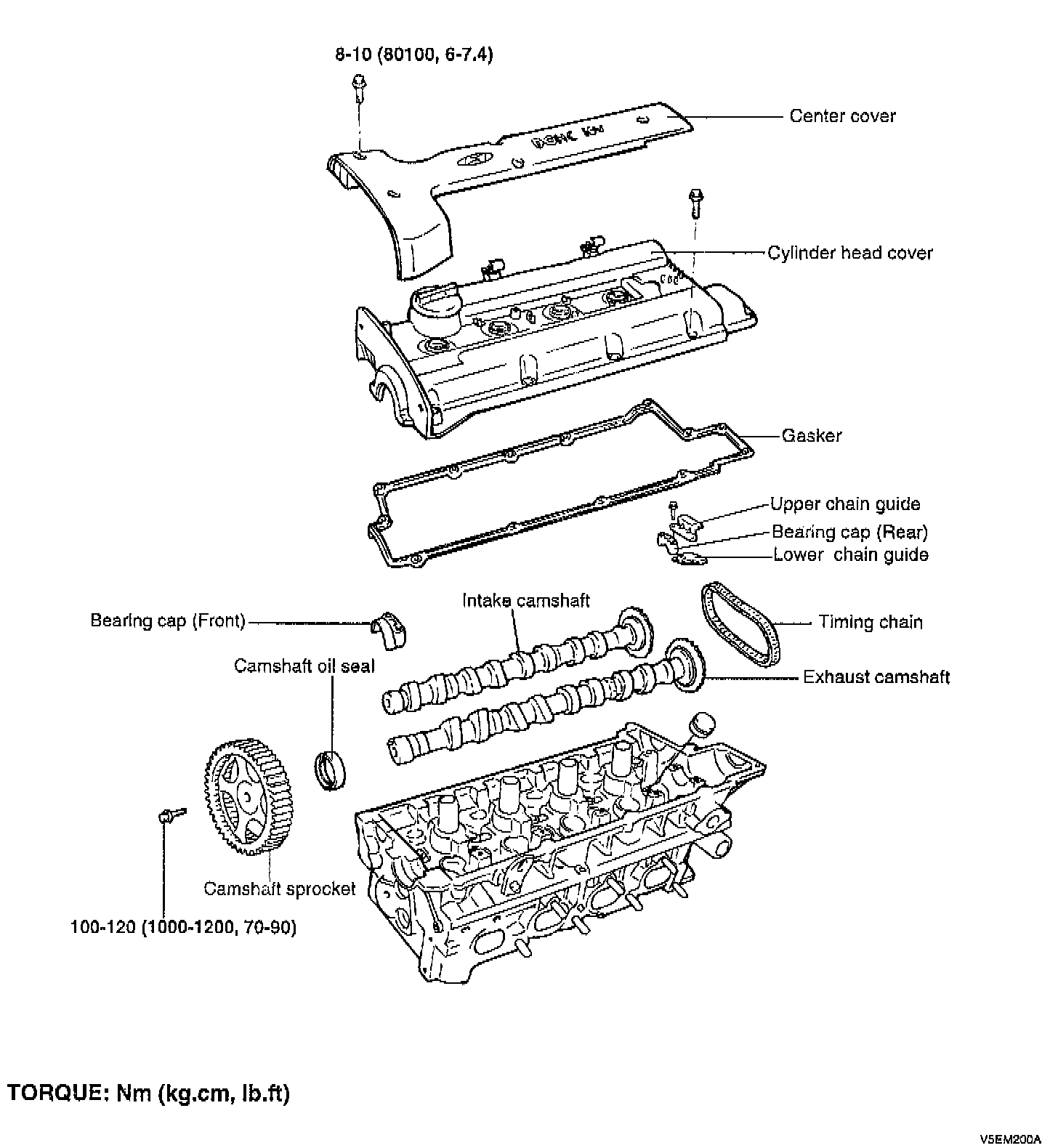

System Specifications

Camshaft Bearing Cap Bolt - 14-15 Nm (140-140 kg. cm, 10-11 ft. lbs.)
Camshaft Sprocket Bolt - 100-120 Nm (1000-1200 kg. cm, 74-89 ft. lbs.)
Crankshaft Pulley Bolt - 170-180 Nm (1700-1800 kg. cm, 125-133 ft. lbs.)
Cylinder Head Cover Bolt - 8-10 Nm (80-100 kg. cm, 6-7.4 ft. lbs.)
Front Case Bolt - 20-27 Nm (200-270 kg. cm, 15-20 ft. lbs.
Rear Plate Bolt - 8-10 Nm (80-100 kg. cm, 6-7.4 ft. lbs.)
Timing Belt Tensioner Bolt - 43-55 Nm (430-550 kg. cm, 31-40 ft. lbs.)
Timing Belt Cover Bolt - 8-10 Nm (80-100 kg. cm, 6-7.4 ft. lbs.)
Timing Belt Idler Bolts - 43-55 Nm (430-550 kg. cm, 31-40 ft. lbs.)
