Seat Belt Reminder Lamp
>>
Testing and Inspection
>>
System Operation Check
System Operation Check
Seat Belt
Warning
1.

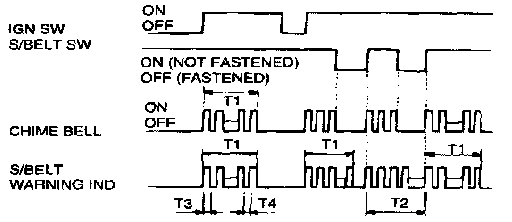

Operating characteristic:
2.
T1 : 6 ± 1 sec. T2 : MAX.
6 ± 1 Sec
. T3, T4 :
0.3 ± 0.1 sec
.
