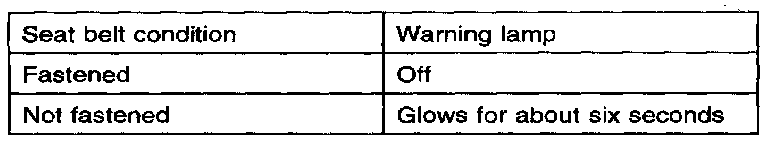

SEAT BELT WARNING LAMP
With the ignition switch turned
ON
, ensure that the lamp on.
INSPECTION

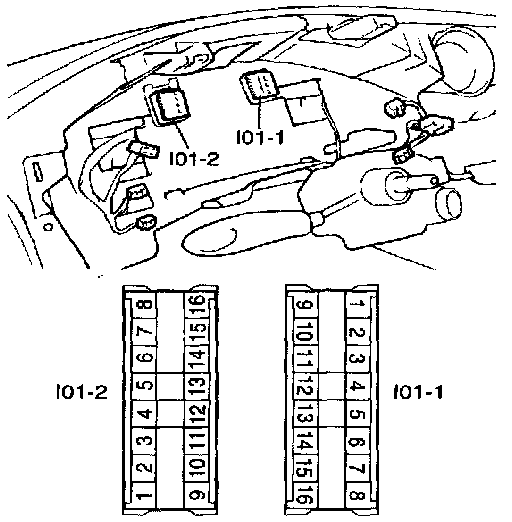

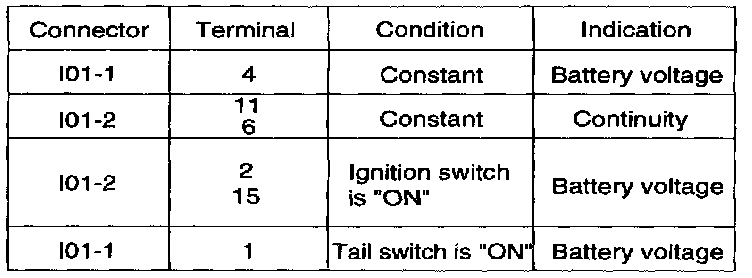

Remove the instrument cluster, check for the indication between each terminals (harness side) and ground.
