Fuel Pump Relay: Testing and Inspection

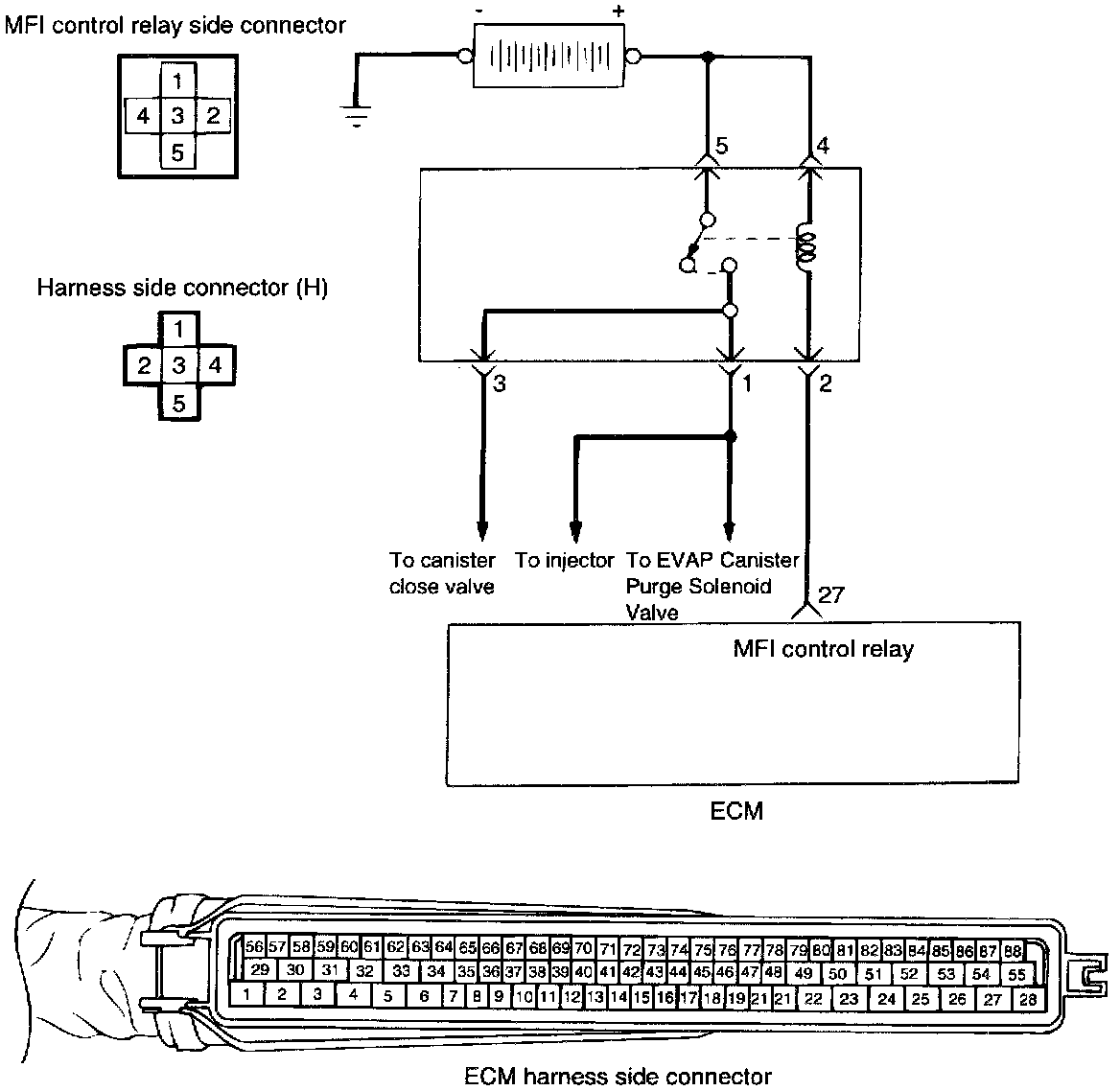

CIRCUIT DIAGRAM

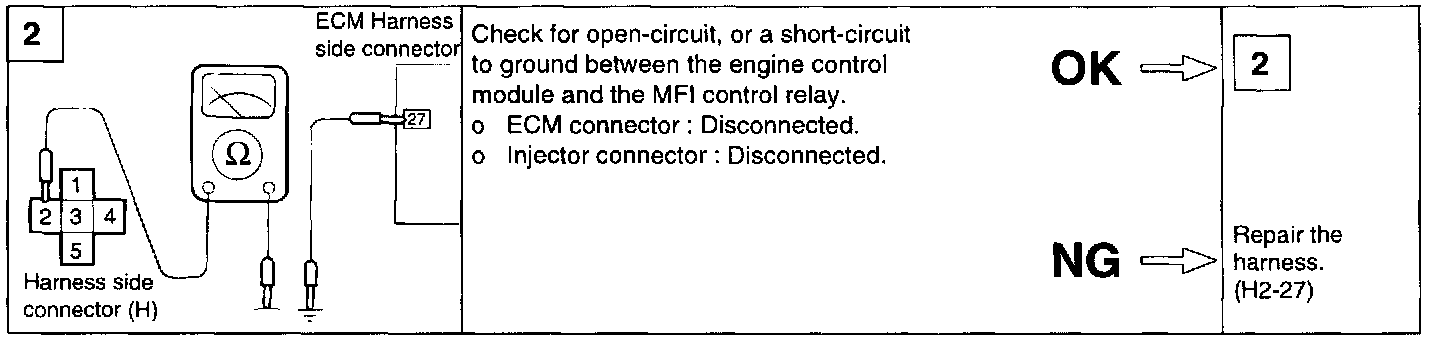

HARNESS INSPECTION PROCESSOR














MFI CONTROL RELAY INSPECTION

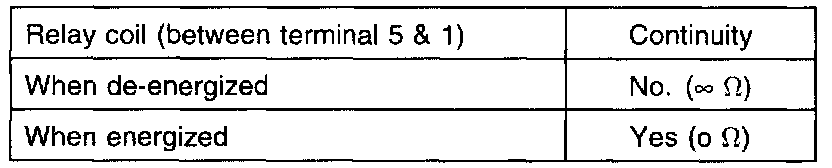

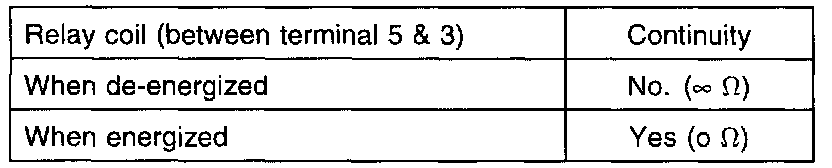

1. Check continuity of relay contacts between terminal 4 (+) and 2 (-).
2. If faulty, replace the MFI control relay.

Tightening torque
MFI control relay: 7 - 11 Nm
(7 - 110 kg.cm, 5.2 - 8.1 lb.ft)
