Hyundai
>>
1997
>>
Tiburon L4-1.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Connector Views
>>
MC03, MD01, MD02, mi01 - mi04, mm01, mm02
MC03, MD01, MD02, mi01 - mi04, mm01, mm02

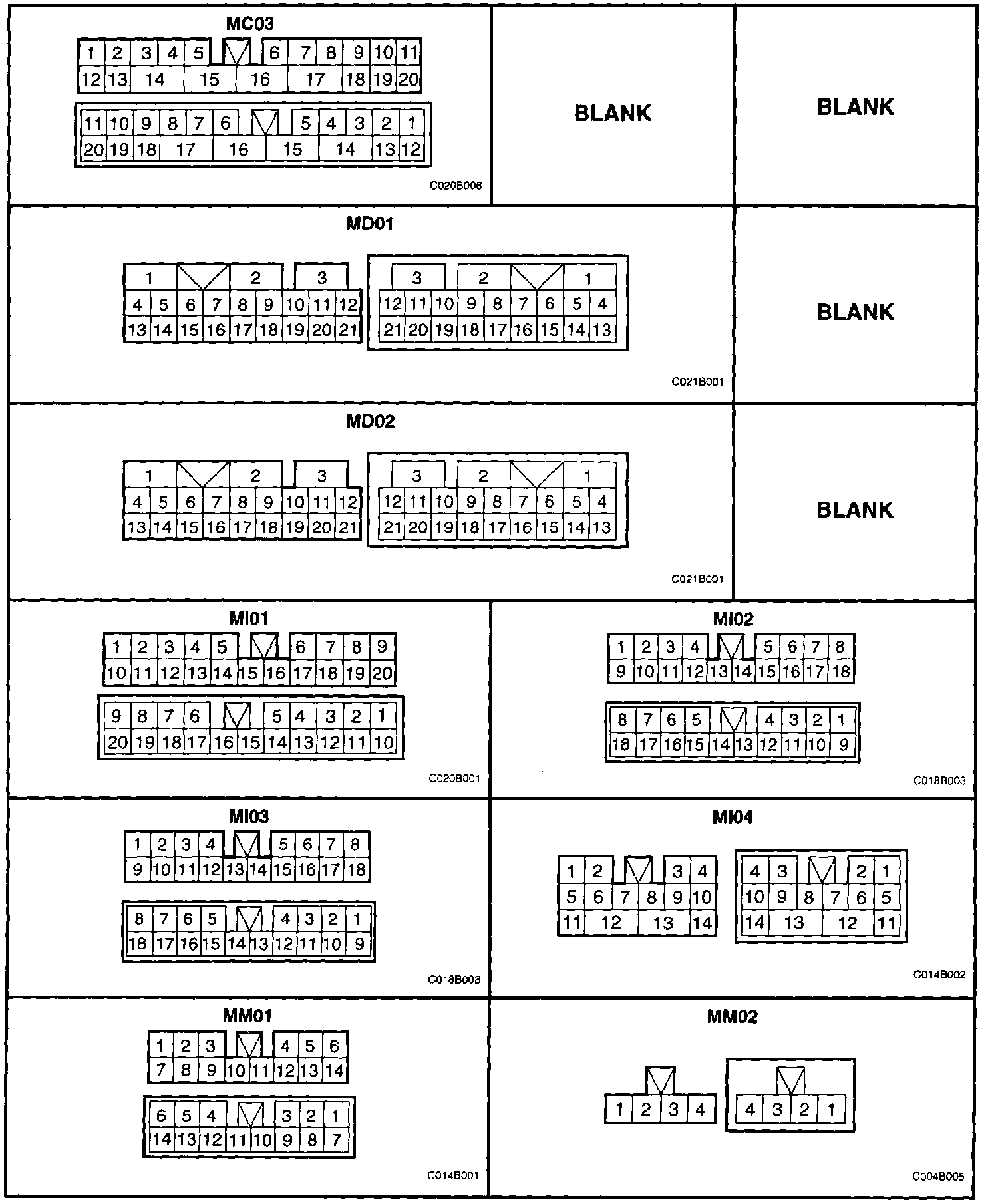

Main Harness (4) - MC03/MD01, MD02/MI01 - MI04/MM01, MM02:
