Home
>>
Hyundai
>>
1997
>>
Tiburon L4-1.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Connector Views
>>
E27 - E59-2/EM01 - EM03
E27 - E59-2/EM01 - EM03

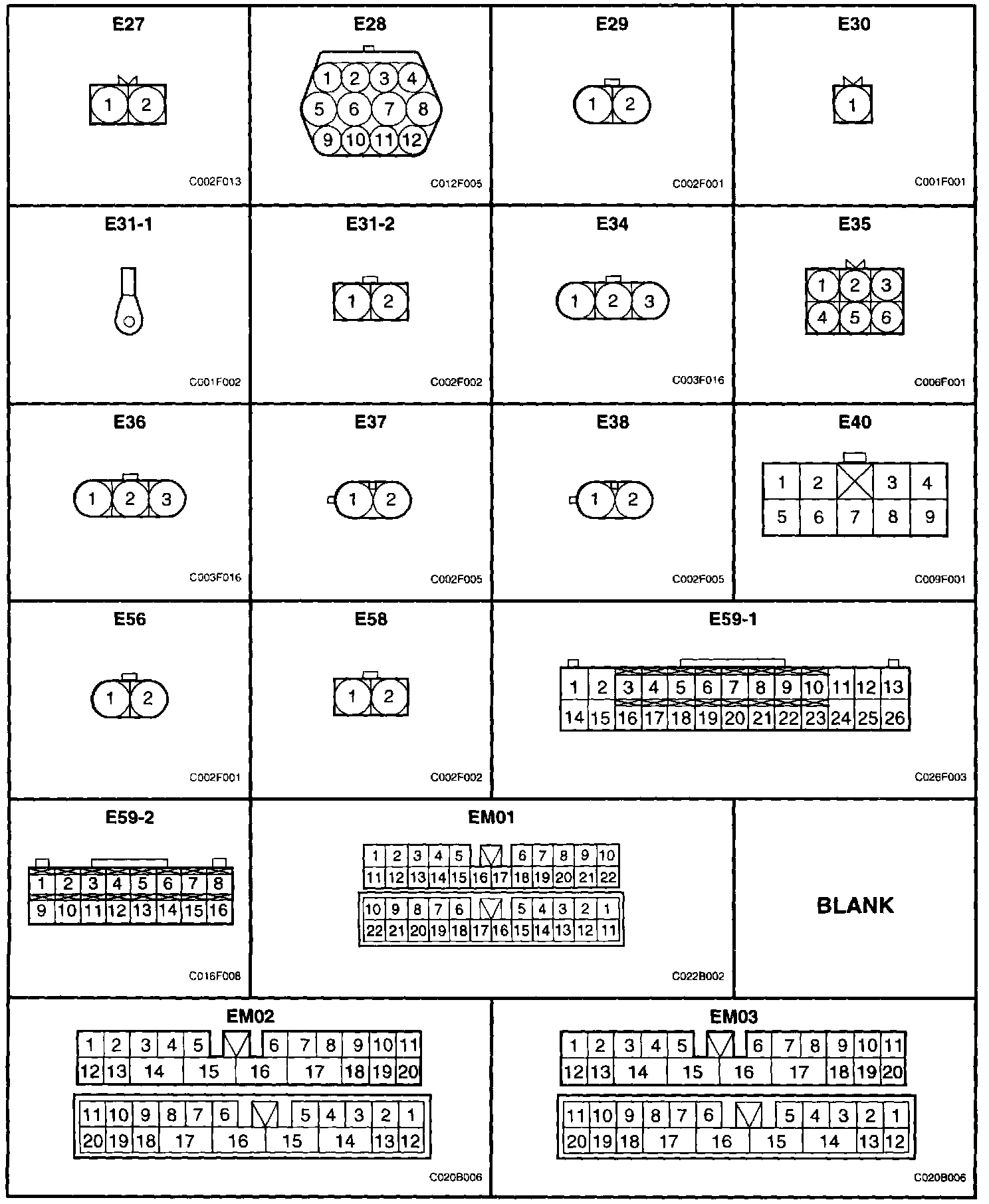

Engine Harness (2) - E27 - E59-2/EM01 - EM03:
