Component Tests

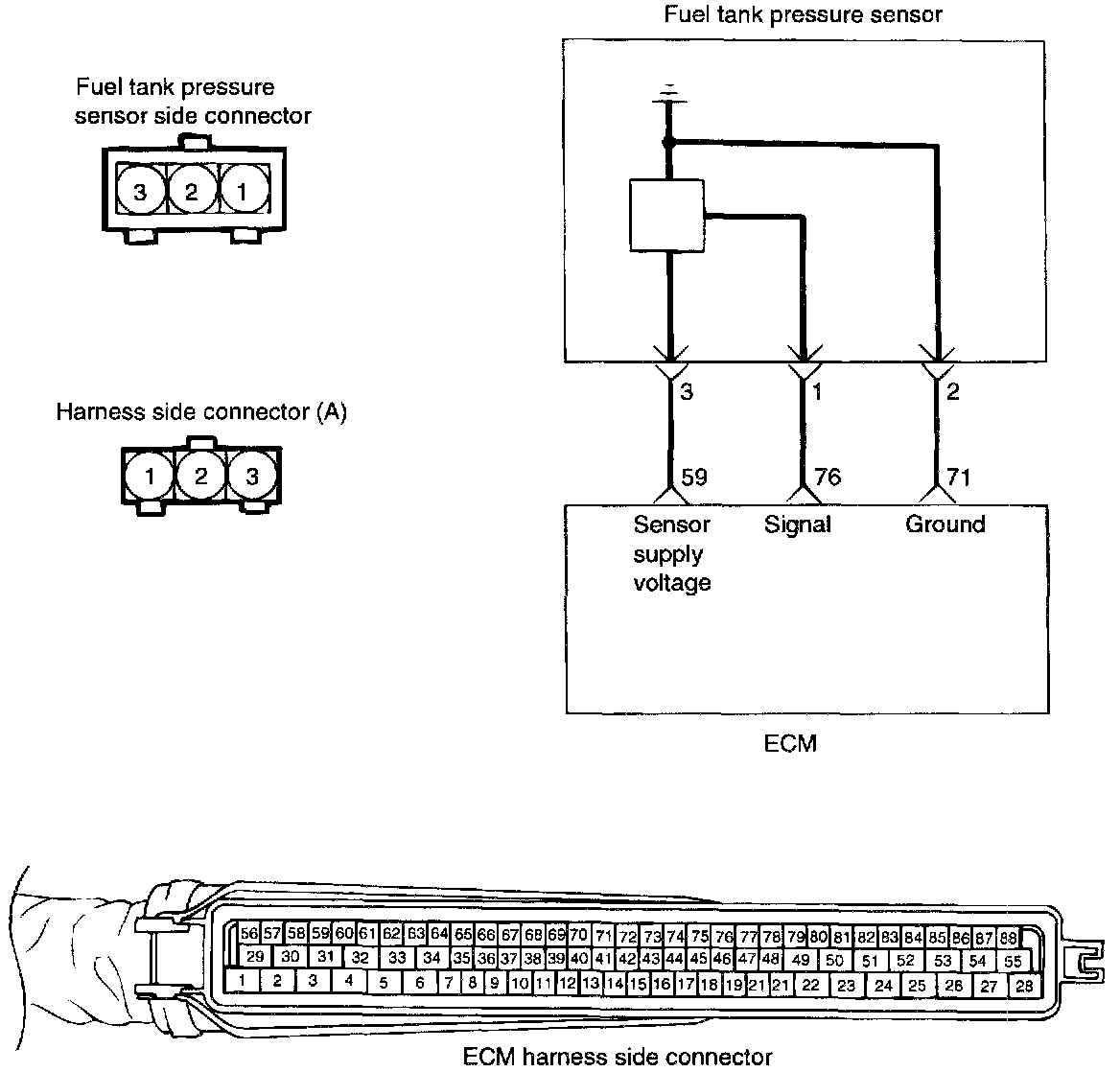

CIRCUIT DIAGRAM

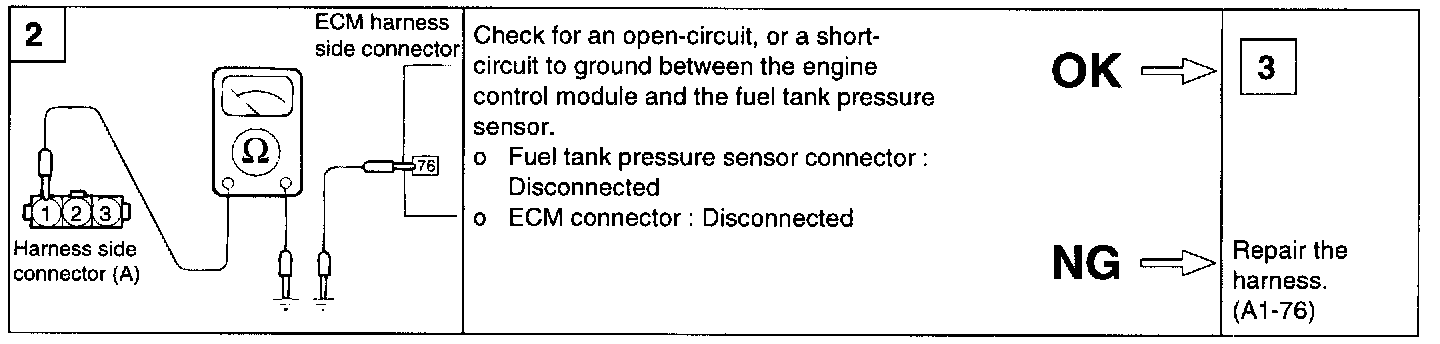

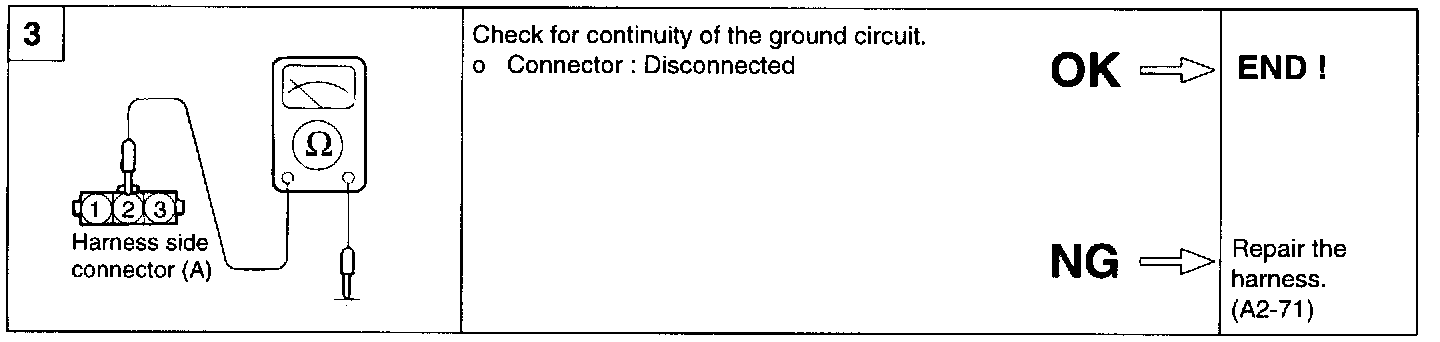

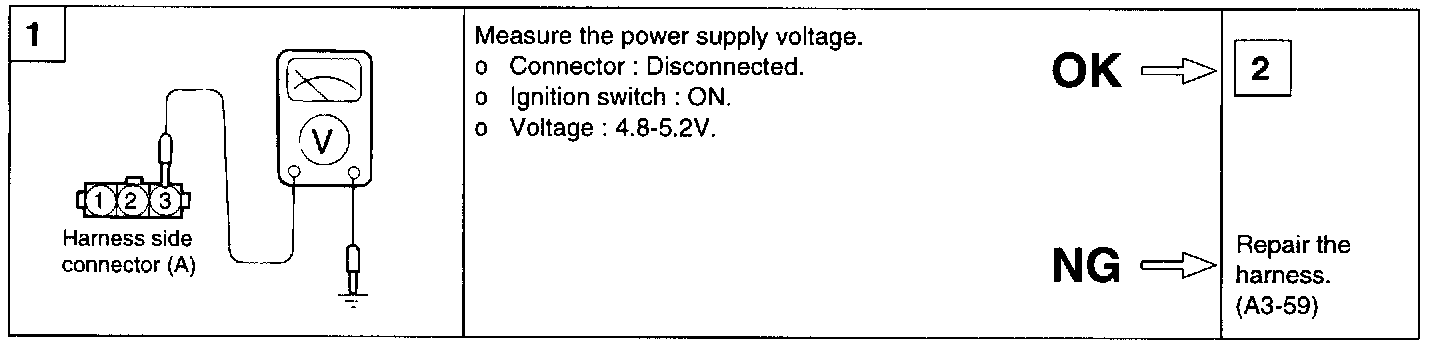

HARNESS INSPECTION PROCEDURES

Check to look that fuel level is over 15%. If not, this inspection is not accurate.
The vehicle must running and at idle. (This is important.)





1. Prepare a voltmeter and connect it to FTP pins as shown.





2. After 20 min. idling, inspect the voltage.

System voltage: 5V
At accelerate: Max. 4.5 V, Min. 0.5 V

3. At idle, inspect that voltage fluctuates up to accelerate rpm up and down.

NOTE:
If voltage is not within spec. as procedures, there is leakage. Inspect the fuel tank and hoses toward canister and fuel neck. Repair or replace defective parts.
