Cranking Signal
>>
Testing and Inspection
Cranking Signal: Testing and Inspection

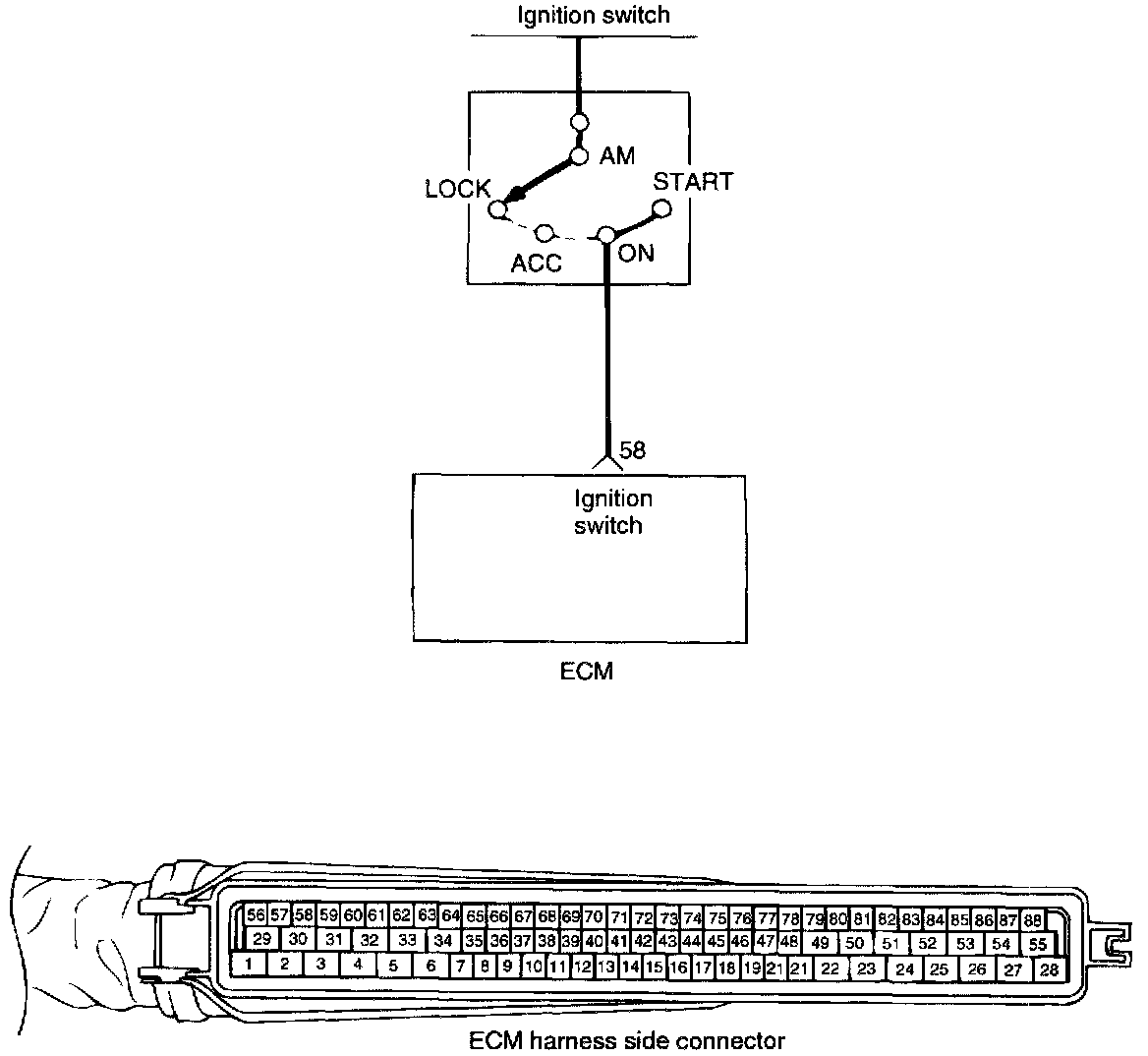

CIRCUIT DIAGRAM

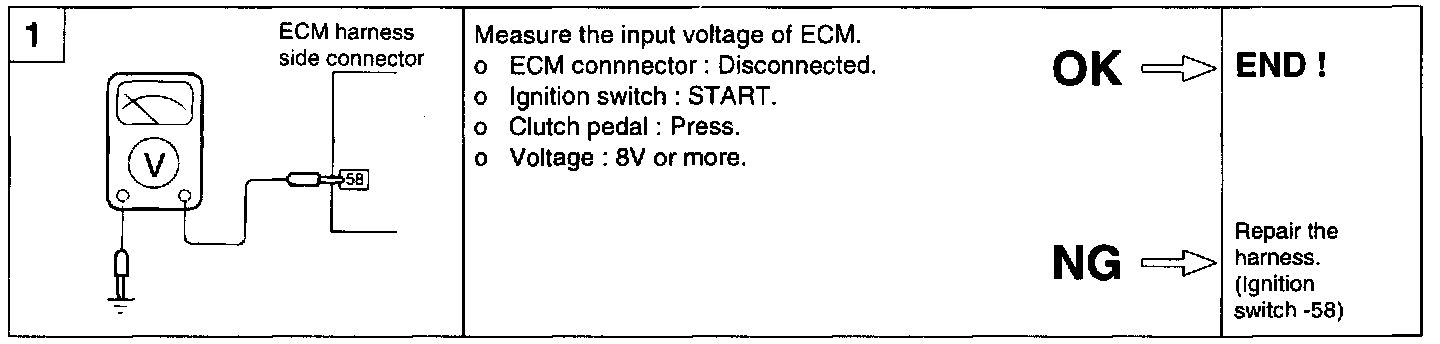

HARNESS INSPECTION
