Component Tests

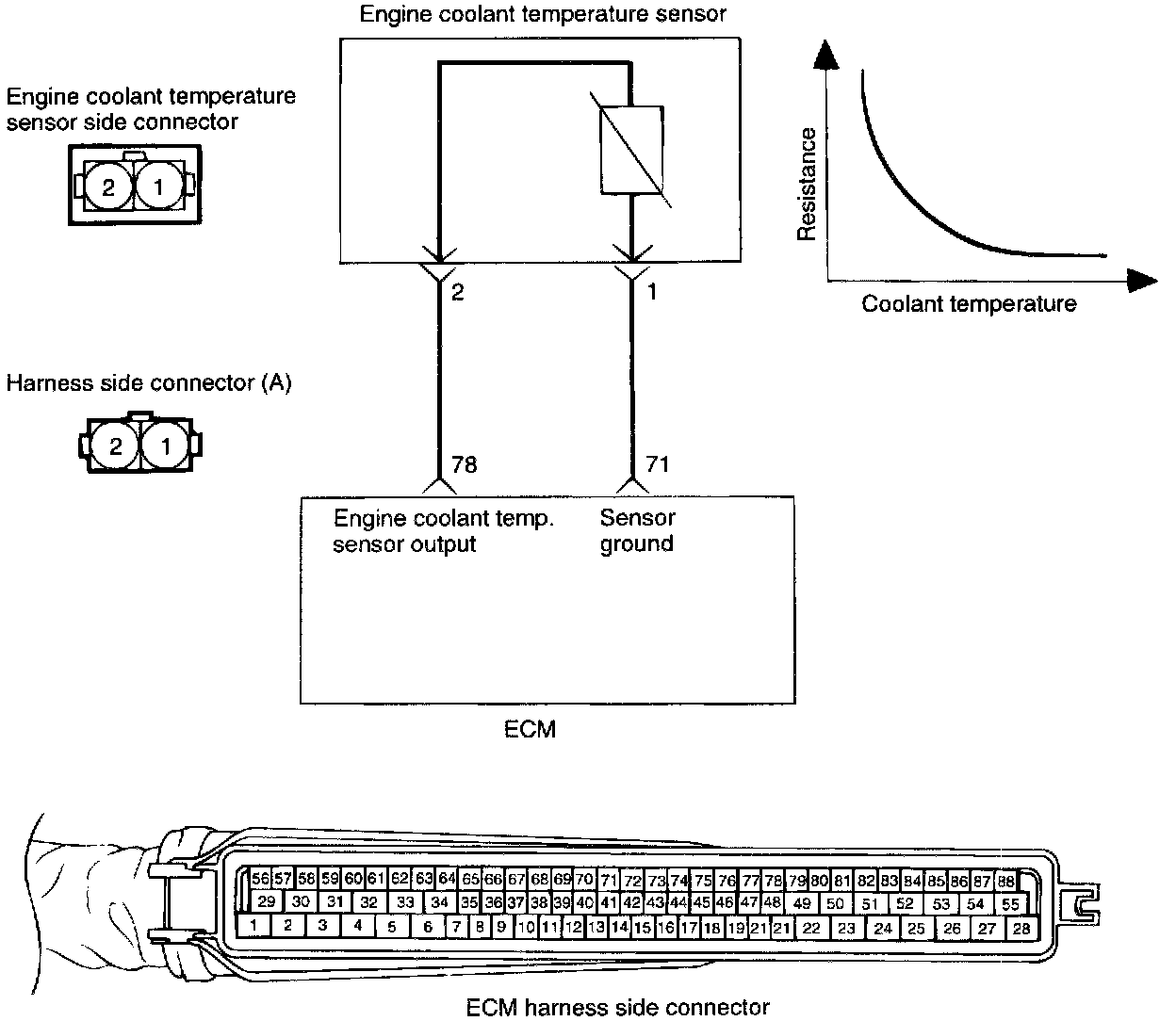

CIRCUIT DIAGRAM

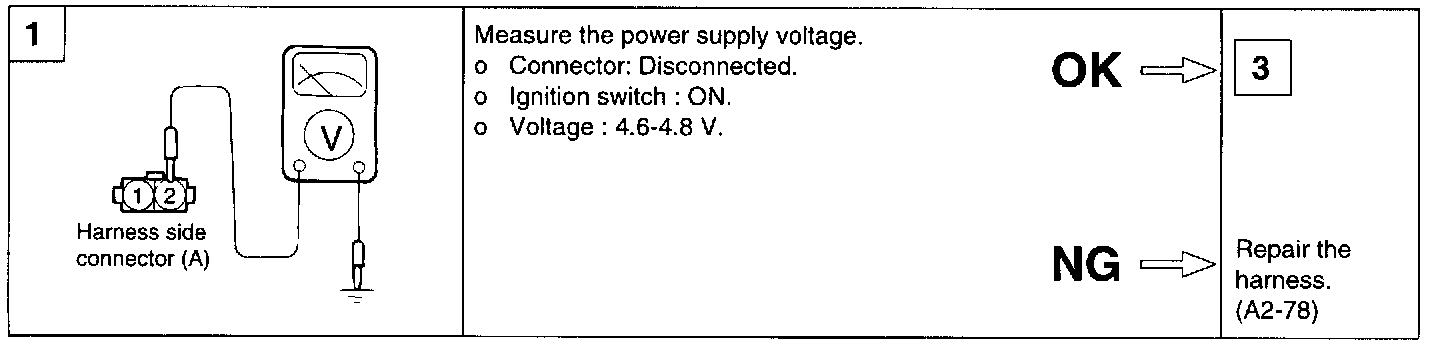

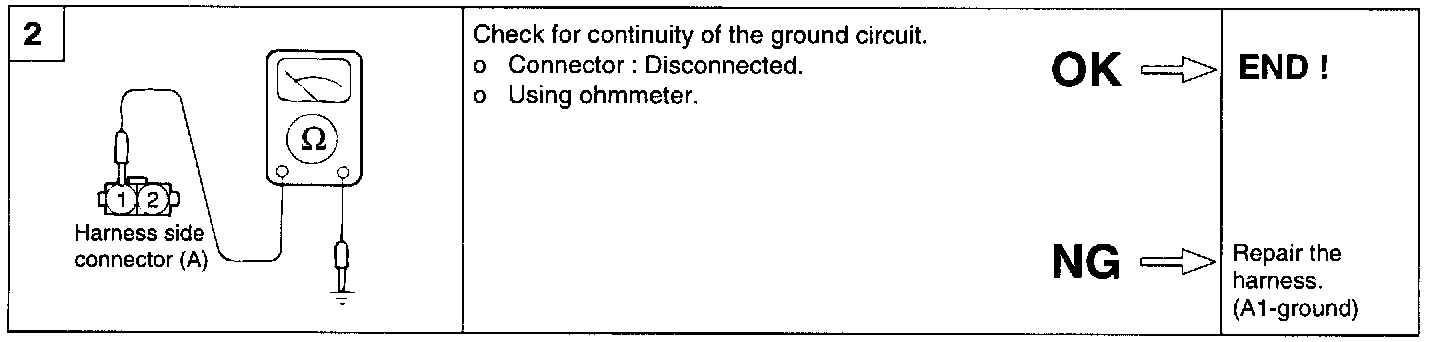

HARNESS INSPECTION PROCEDURES

SENSOR INSPECTION
1. Remove the engine coolant temperature sensor from the intake manifold.

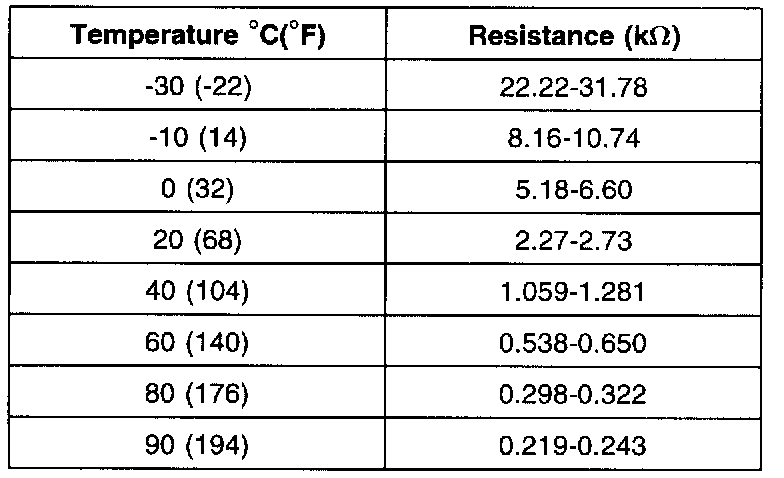

2. With temperature sensing portion of engine coolant temperature sensor immersed in hot water, check resistance.





3. If the resistance deviates from the standard value greatly, replace the sensor.

DTC P0116, P0117, P0118 - Coolant Temperature Sensor:

TROUBLESHOOTING PROCEDURES
HINT: If the fast idle speed is not high enough or the engine gives off dark smoke during the engine warm-up operation, it might be caused by the engine coolant temperature sensor.

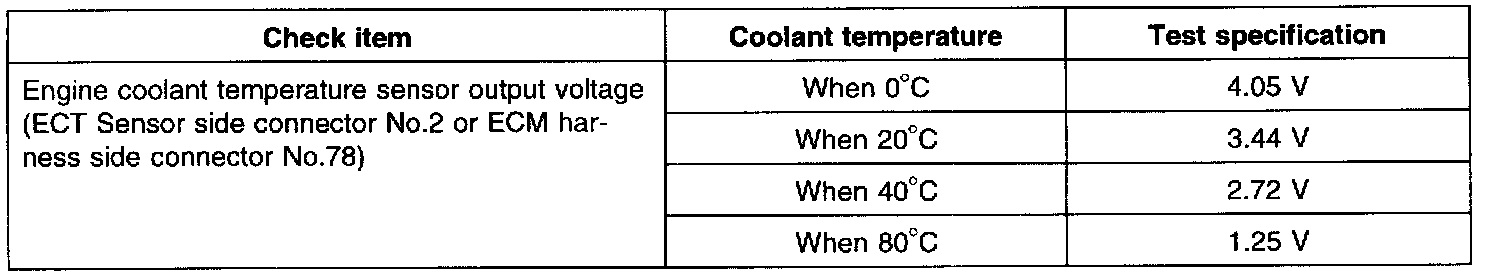

USING VOLTMETER
