Rear

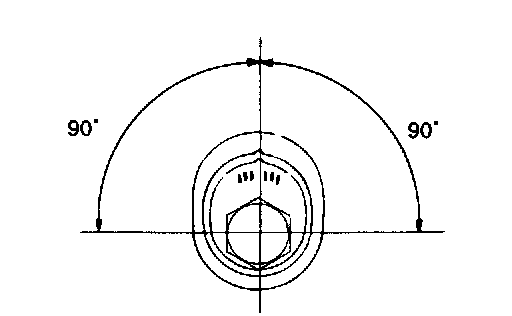

CAUTION: The eccentric bolt should be adjusted within a 90° range left and right from the center position.






NOTE:
The rear suspension standard value should be 7 - 3 mm (0.28 to 0.12 inch).

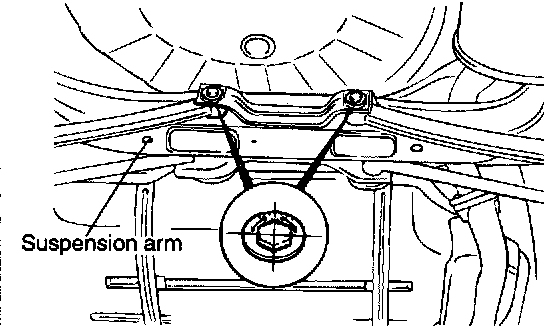

The rear suspension (T) mounting bolt should be turned an equal amount on both sides when adjusting. Loosen the rear-side nut prior to adjust the eccentric bolt.

Left Wheel - clockwise direction ........ toe-in

The scale has graduations of approximately 2.4 mm (0.09 inch).
