Home
>>
Hyundai
>>
1997
>>
Tiburon L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Hose/Line HVAC
Hose/Line HVAC

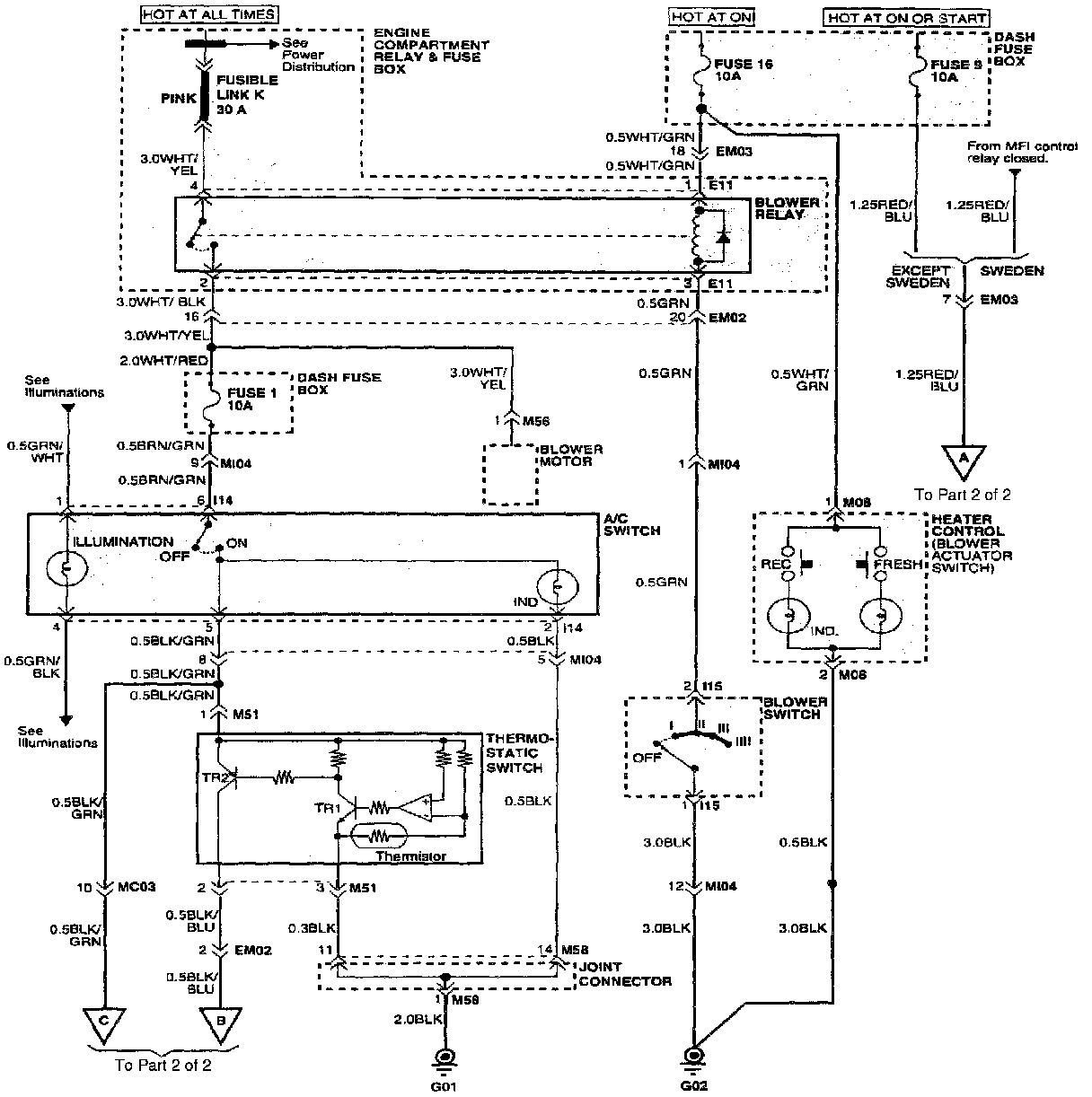

AIR CONDITIONING CONTROLS (1)

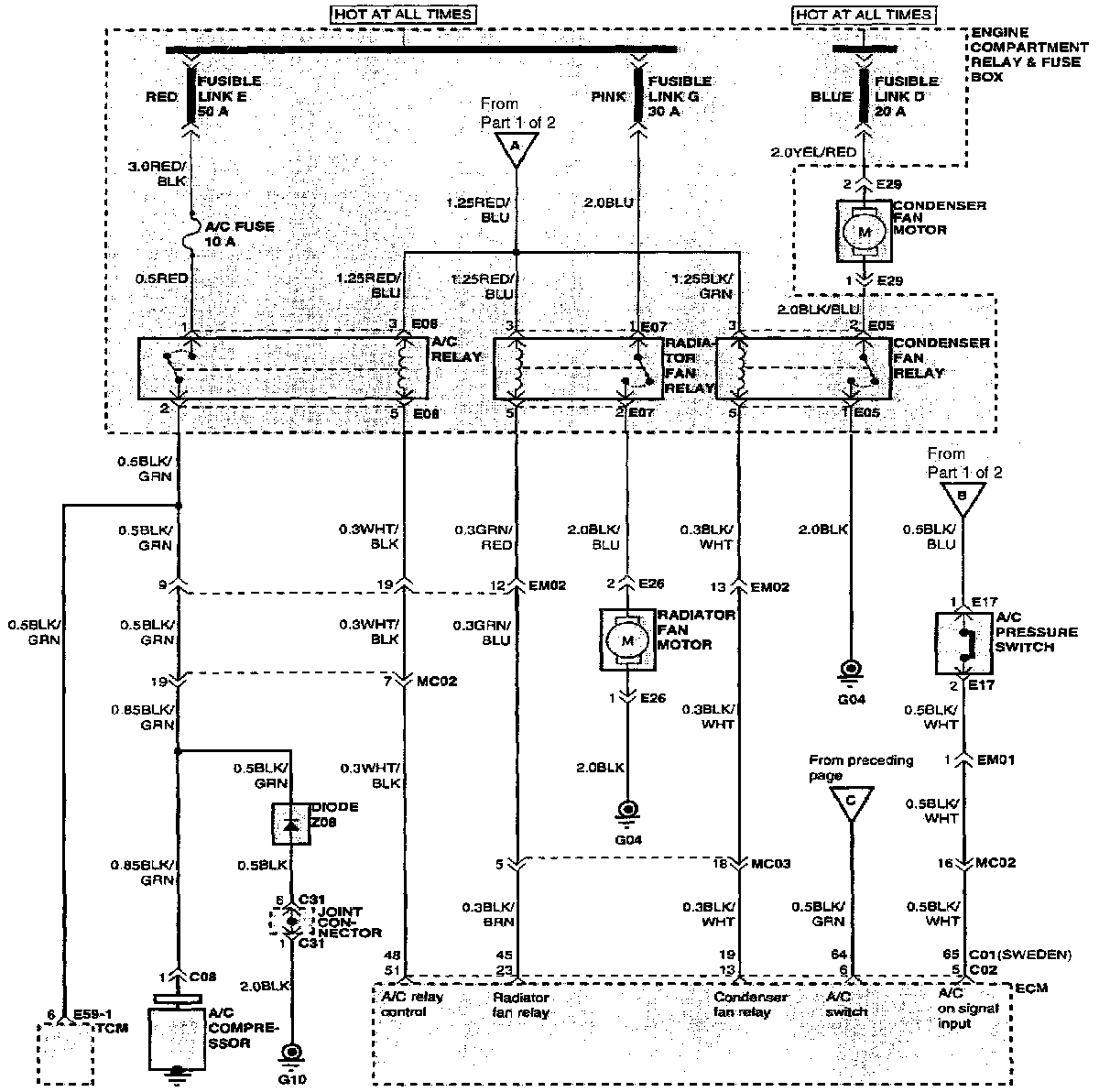

AIR CONDITIONING CONTROLS (2)
