REMOVAL

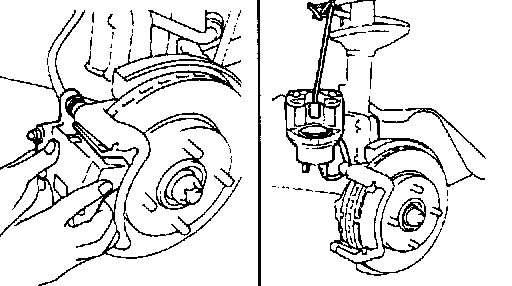

1. Remove the lower bolt and lift the caliper assembly up and out of the way . Secure it with wire or some other retaining method.
2. Remove the pads.

CAUTION: Do not depress the brake pedal while disassembling the pads.






INSTALLATION

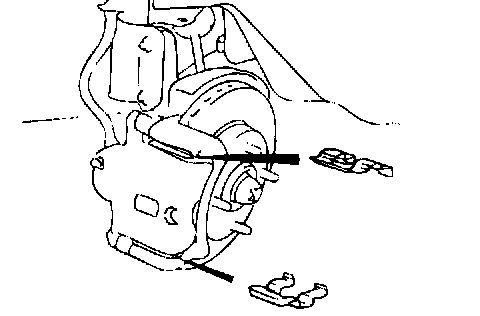

1. Install the pad clips.
2. Install the pads onto each pad clip.

NOTE: Position the pad with its wear indicator toward the disc side and facing upward.

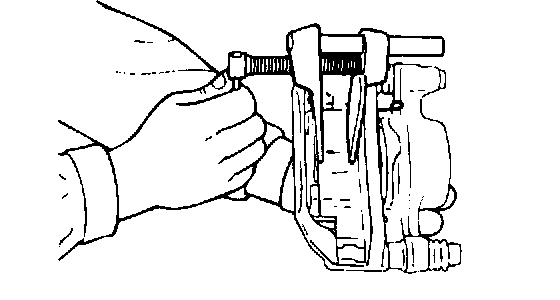

3. Seat the piston in the cylinder using Special Tool (09581-11000).





4. Install the new pads. The shims are attached to the each pad as illustrated.

CAUTION: Never apply grease to the disc or pads.





5. Install the bolt and tighten to the specified value.
Tightening torque: 22 - 32 Nm (220 - 320 kg.cm, 16 - 24 ft. lbs.)
